Removal Procedure

  1. Place front door window in the halfway down position.
  2. Remove the run channel weather-strip from the window (1).
  3. Remove the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR (PONTIAC)  or TRIM PANEL REPLACEMENT - SIDE FRONT DOOR (CHEVROLET)  .
  4. Remove the front door water reflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR  .
  5. Remove the nuts which retain the front door window to the window regulator.
  6. Remove the front door window (1) from the front door.

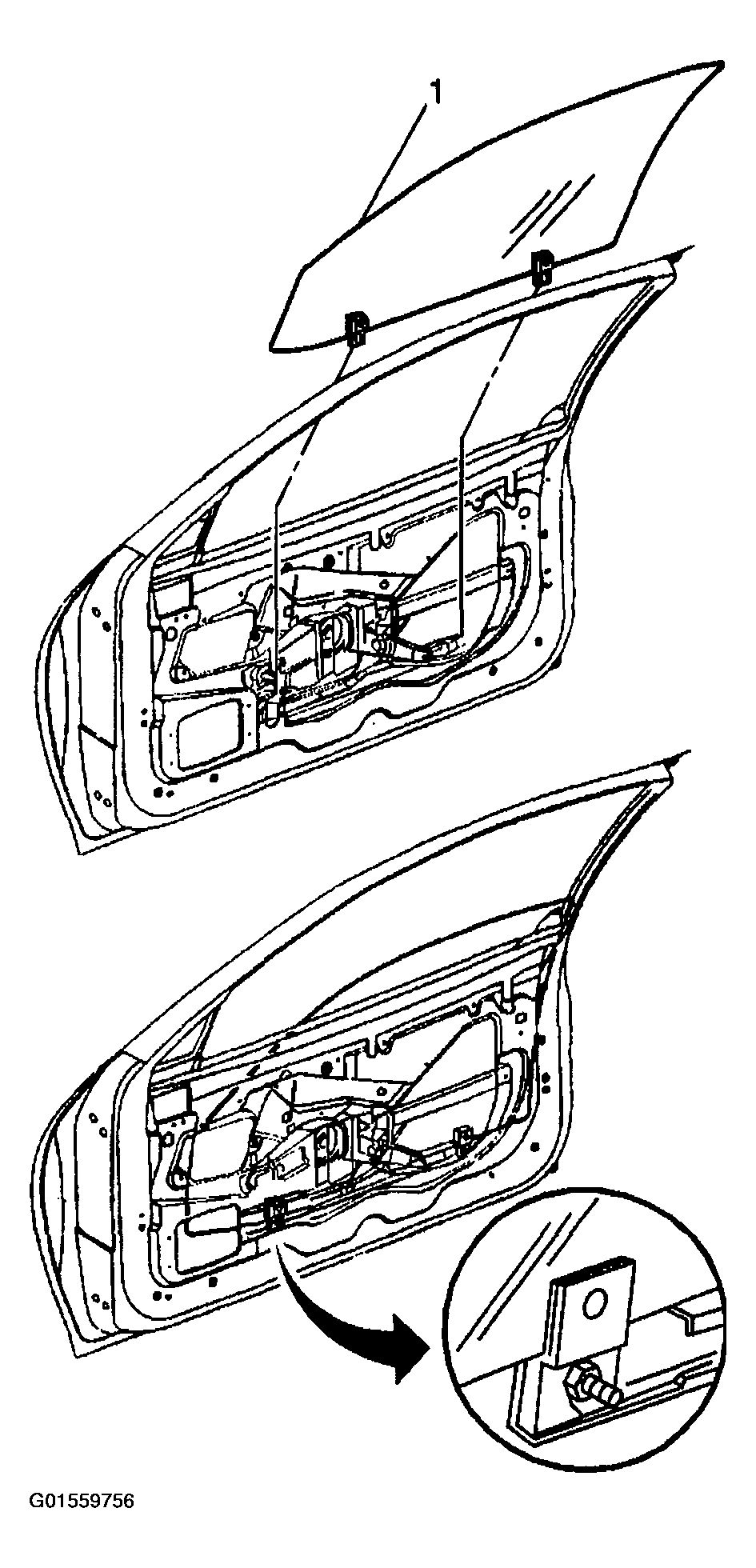

    Fig 1: Removing Front Door Window From Front Door
    G01559756Courtesy of GENERAL MOTORS CORP.
  7. Remove the sash rivet (1) from the sash.
  8. Remove the sash (2) from the window.

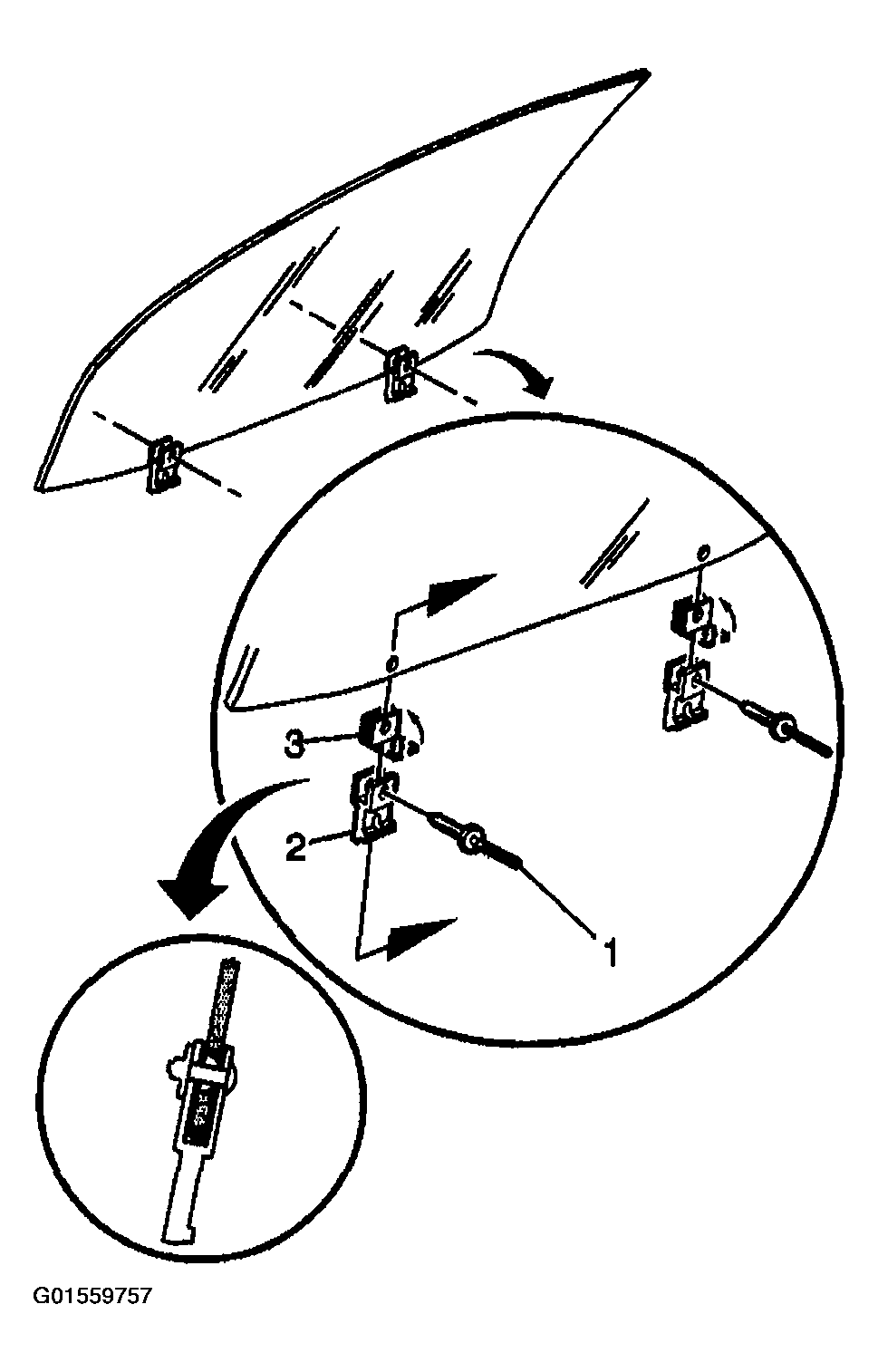

    Fig 2: Removing Sash Rivet From Sash
    G01559757Courtesy of GENERAL MOTORS CORP.
