Removal Procedure

CAUTION: Refer to Glass and Sheet Metal Handling Caution in Cautions and Notices.

Insert the J 38778 (or equivalent) between the mirror backing plate and the housing.
Remove the mirror from the backing plate.
- For the left mirror (1), twist the J 38778 counterclockwise.
- For the right mirror (5), twist the J 38778 clockwise.

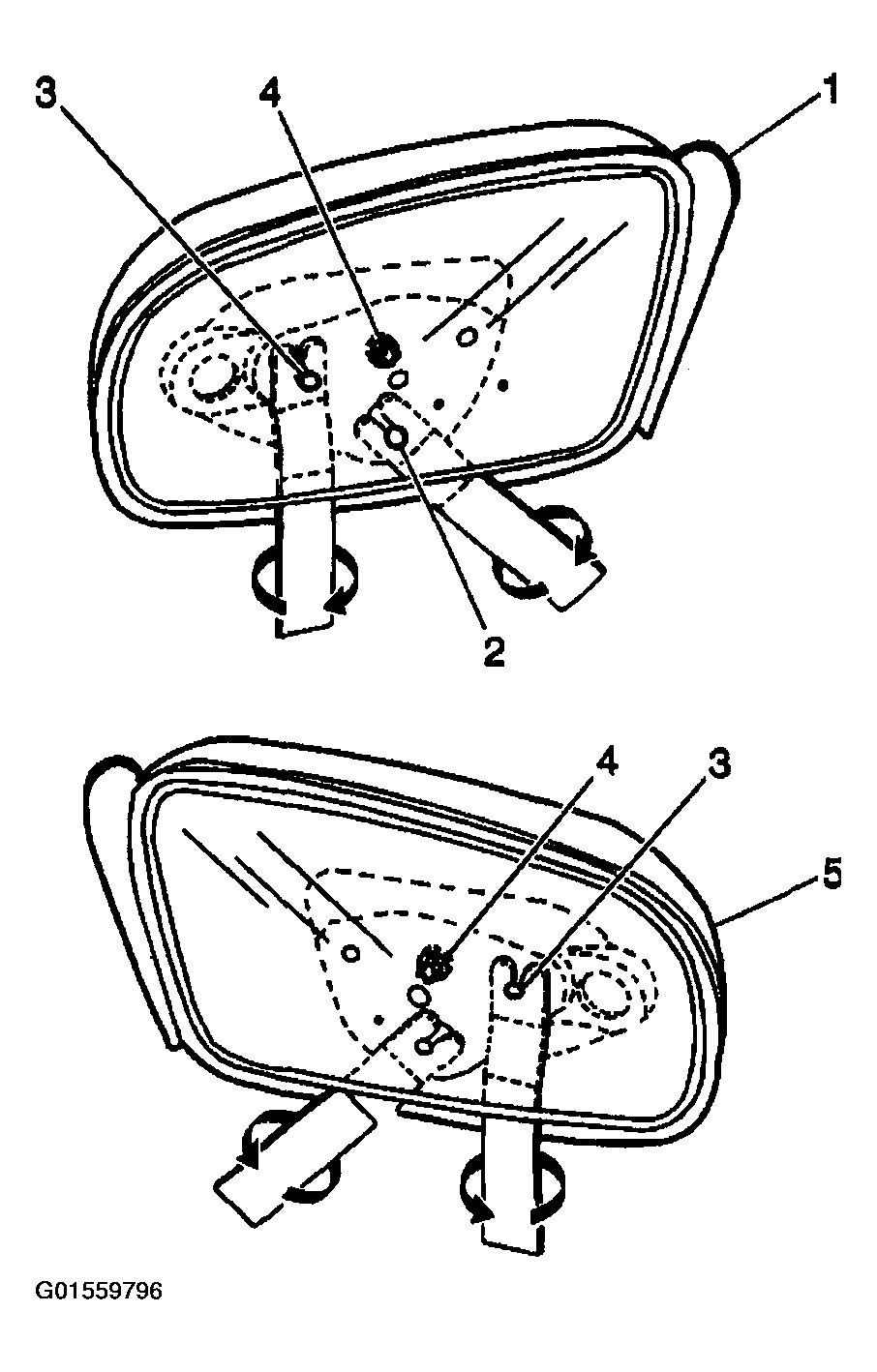

  Fig 1: Removing Mirror From Backing Plate
  Courtesy of GENERAL MOTORS CORP.
If the jackscrews came off in the mirror backing plate, press them to the side opposite the key (on the ball end) to remove them.

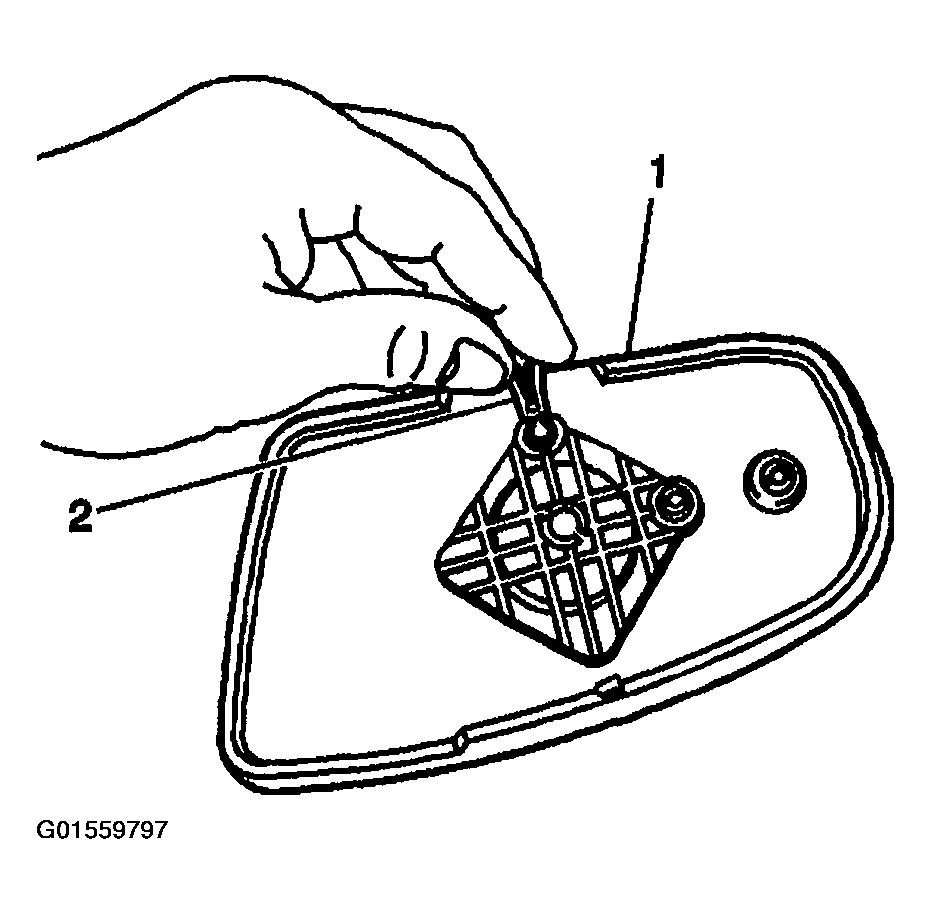

Fig 2: Removing Jackscrews From Mirror Backing Plate
Courtesy of GENERAL MOTORS CORP.
