Installation Procedure

  1. Position the door armrest hanger plate (1) to the door.
  2. Install the new rivets (3) to the door hanger plate.
  3. Install the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR (PONTIAC)  or TRIM PANEL REPLACEMENT - SIDE FRONT DOOR (CHEVROLET)  or TRIM PANEL REPLACEMENT - SIDE REAR DOOR (PONTIAC)  or TRIM PANEL REPLACEMENT - SIDE REAR DOOR (CHEVROLET)  .

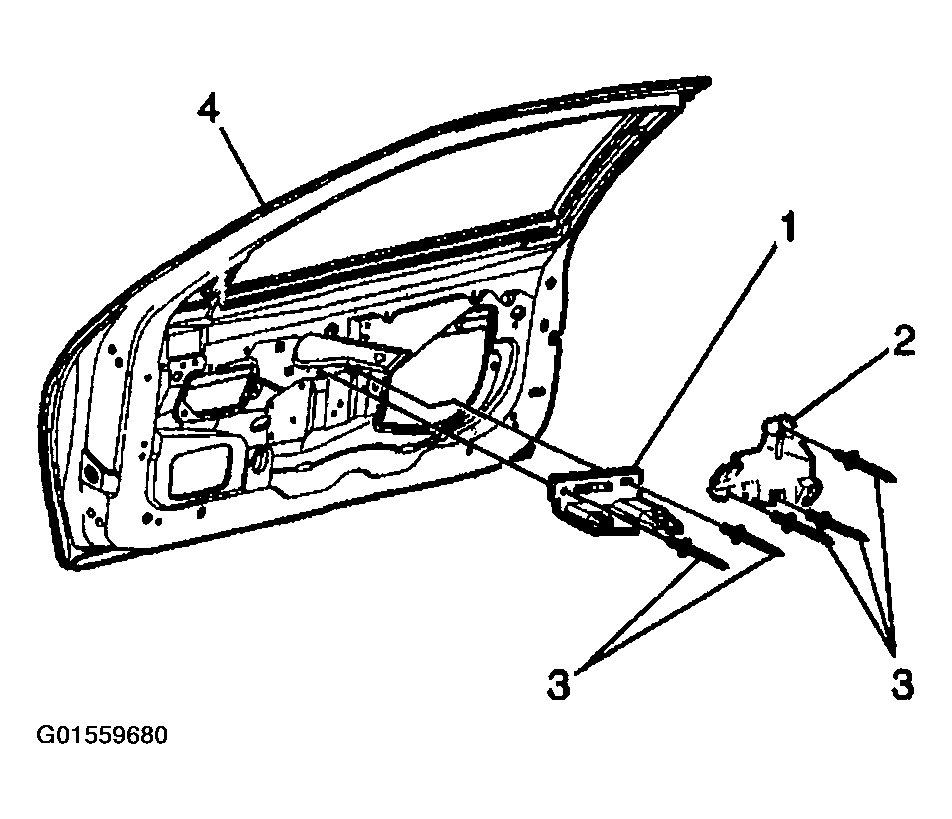

    Fig 1: Installing Door Armrest Hanger Plate To Door
    G01559680Courtesy of GENERAL MOTORS CORP.
