Installation Procedure

  1. Install the sunroof window into the roof opening with the sunroof logo facing rearward.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the sunroof window screws (2) to the sunroof track.

    Tighten

    Tighten the sunroof window screws to 4 N.m (35 lb.in).

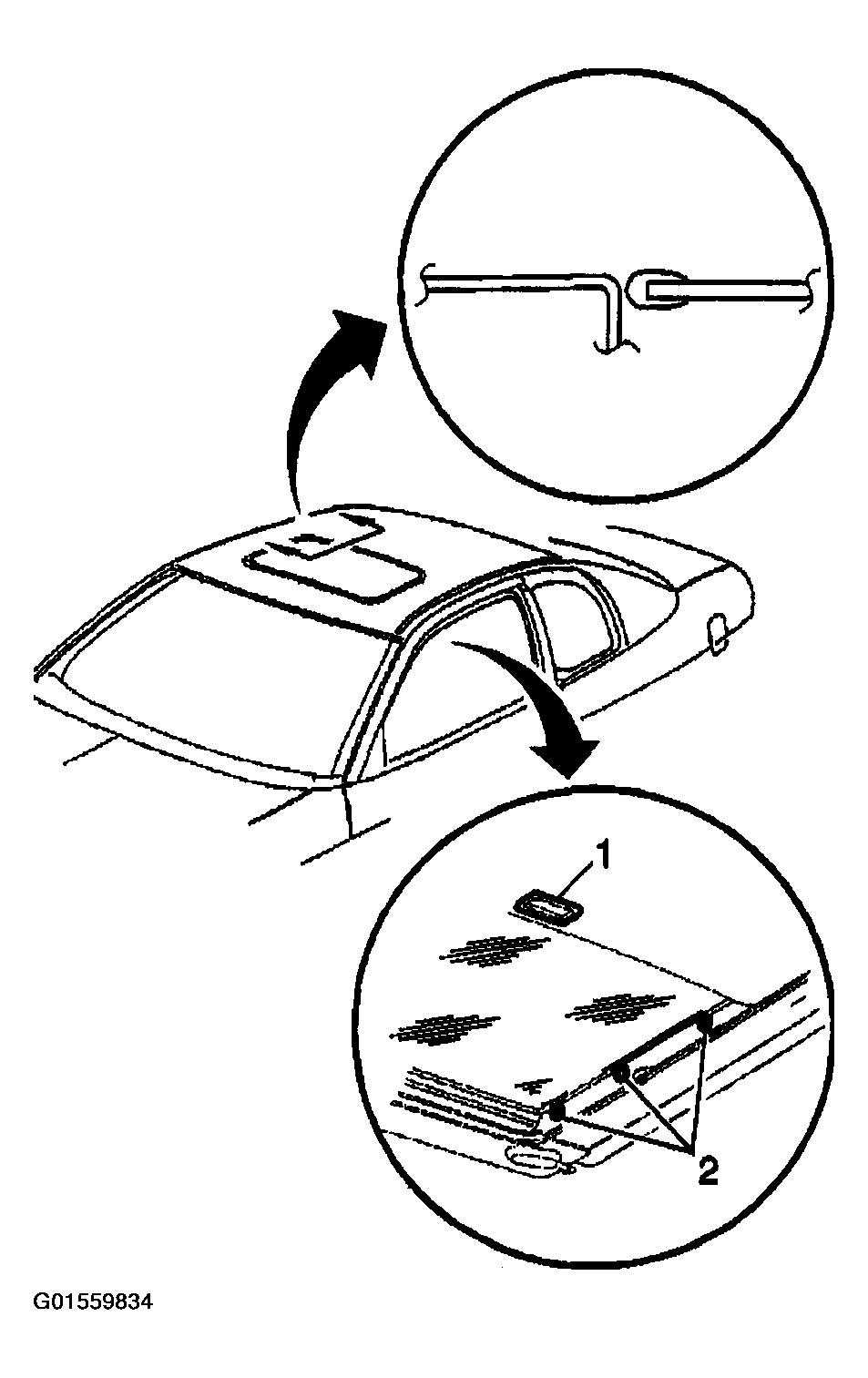

    Fig 1: Installing Sunroof Window Screws
    G01559834Courtesy of GENERAL MOTORS CORP.
  3. Check and adjust the sunroof window as necessary. Refer to SUNROOF WINDOW HEIGHT AND OPENING FIT ADJUSTMENT  .
