Removal Procedure

  1. Use a small, flat-bladed tool in order to disengage the sunroof control switch from the headlining module.
  2. Disconnect the connector from the sunroof control switch.

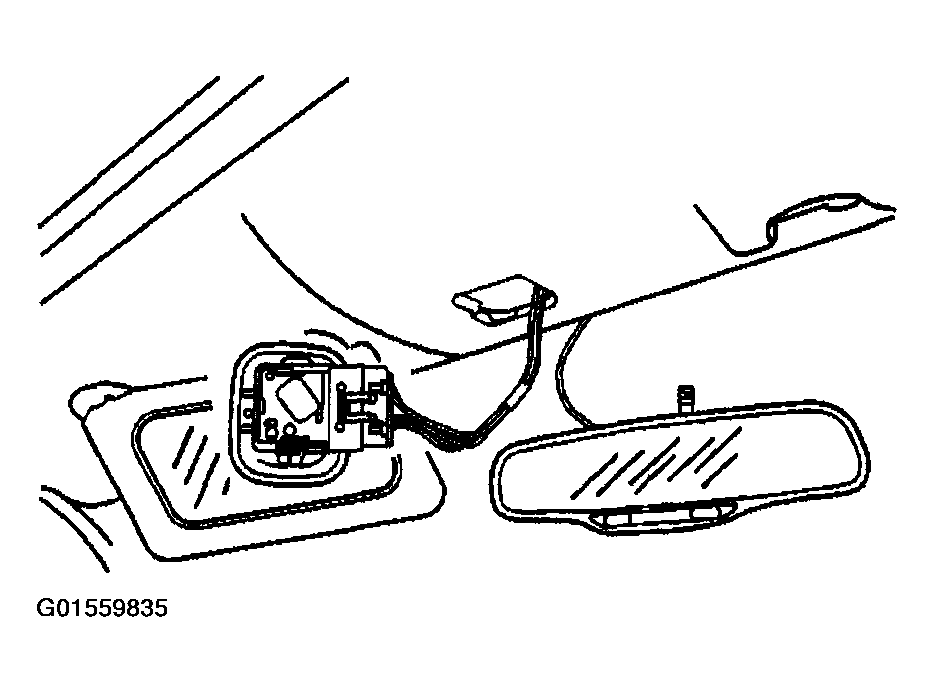

    Fig 1: Disconnecting Connector From Sunroof Control Switch
    G01559835Courtesy of GENERAL MOTORS CORP.
  3. Remove the sunroof control switch from the vehicle.
