Installation Procedure

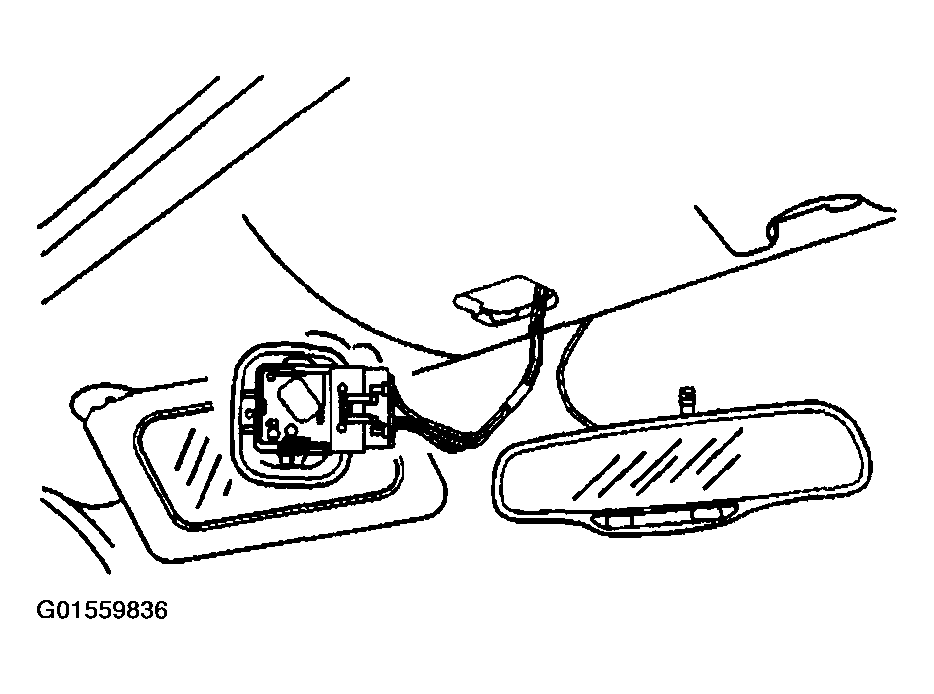

Fig 1: Connecting Connector To Sunroof Control Switch
G01559836Courtesy of GENERAL MOTORS CORP.
  1. Connect the connector to the sunroof control switch.
  2. Firmly push the sunroof control switch into the headlining module in order to secure the sunroof control switch.
