Power Roof Systems Connector End Views

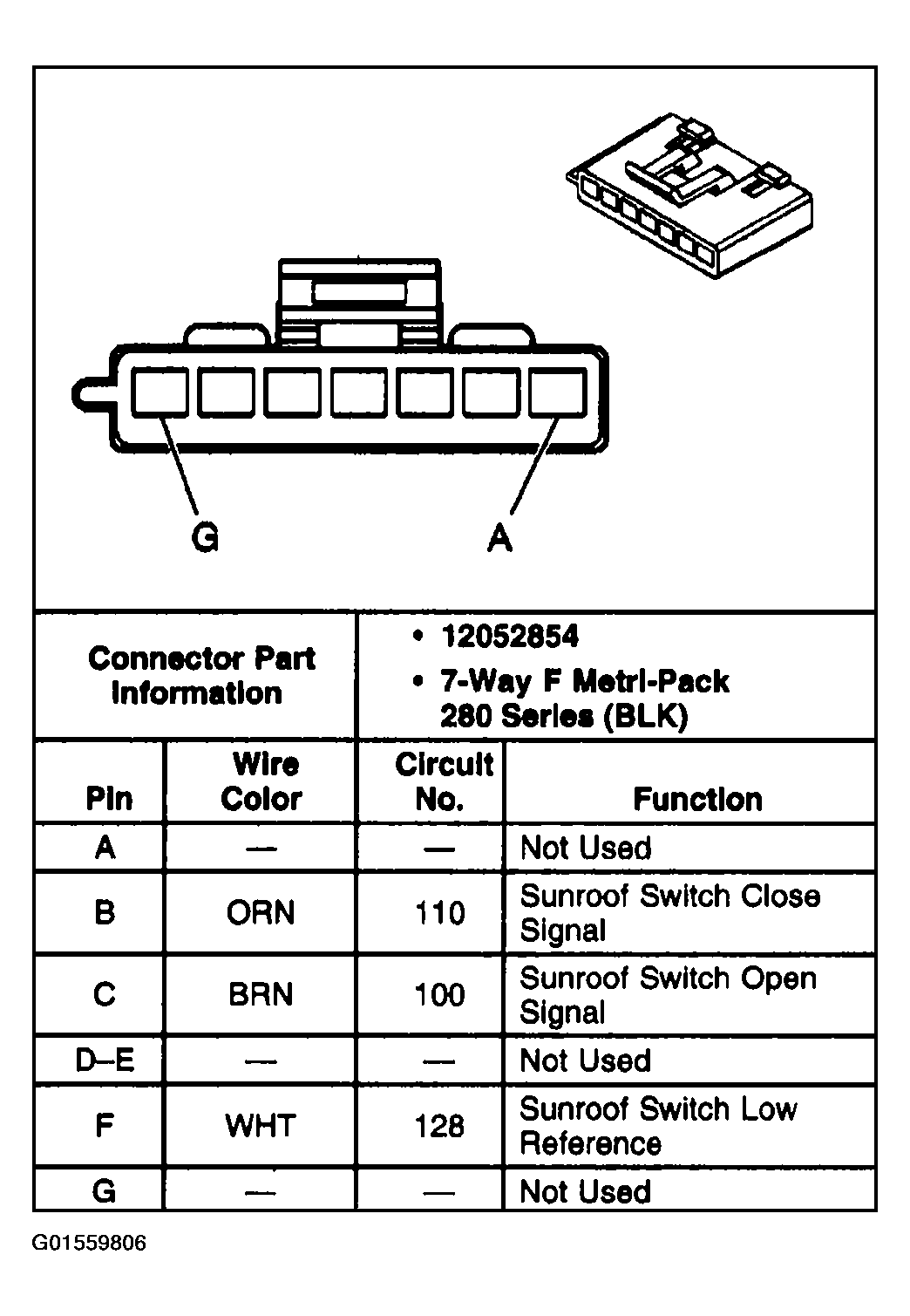

Fig 1: Identifying Sunroof Switch Connector End View

Courtesy of GENERAL MOTORS CORP.

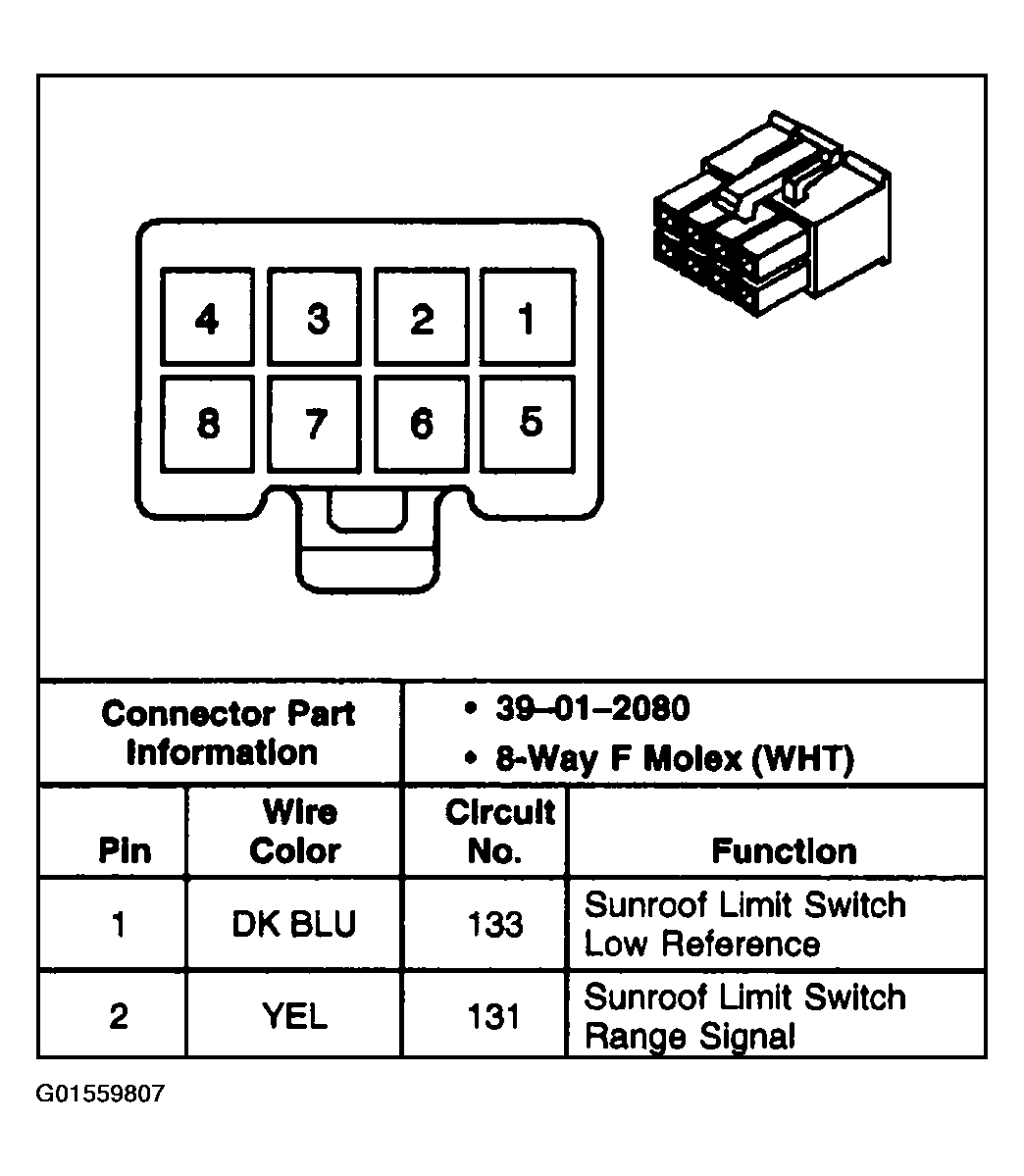

Fig 2: Identifying Sunroof Control Module, C1 Connector End View (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

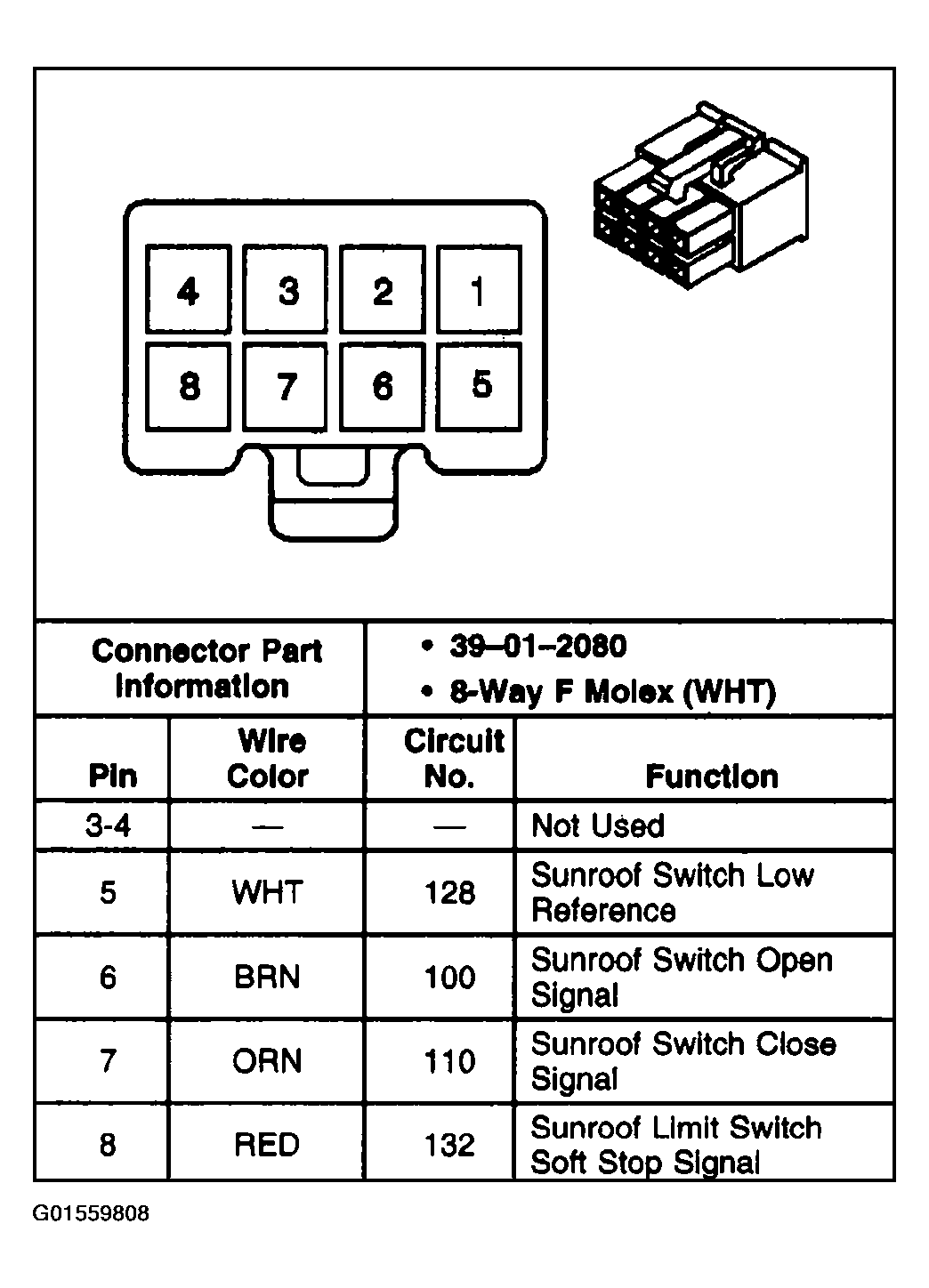

Fig 3: Identifying Sunroof Control Module, C1 Connector End View (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying Sunroof Control Module C2 Connector End View
