Power Roof Systems Component Views
Power Roof Systems Component Views

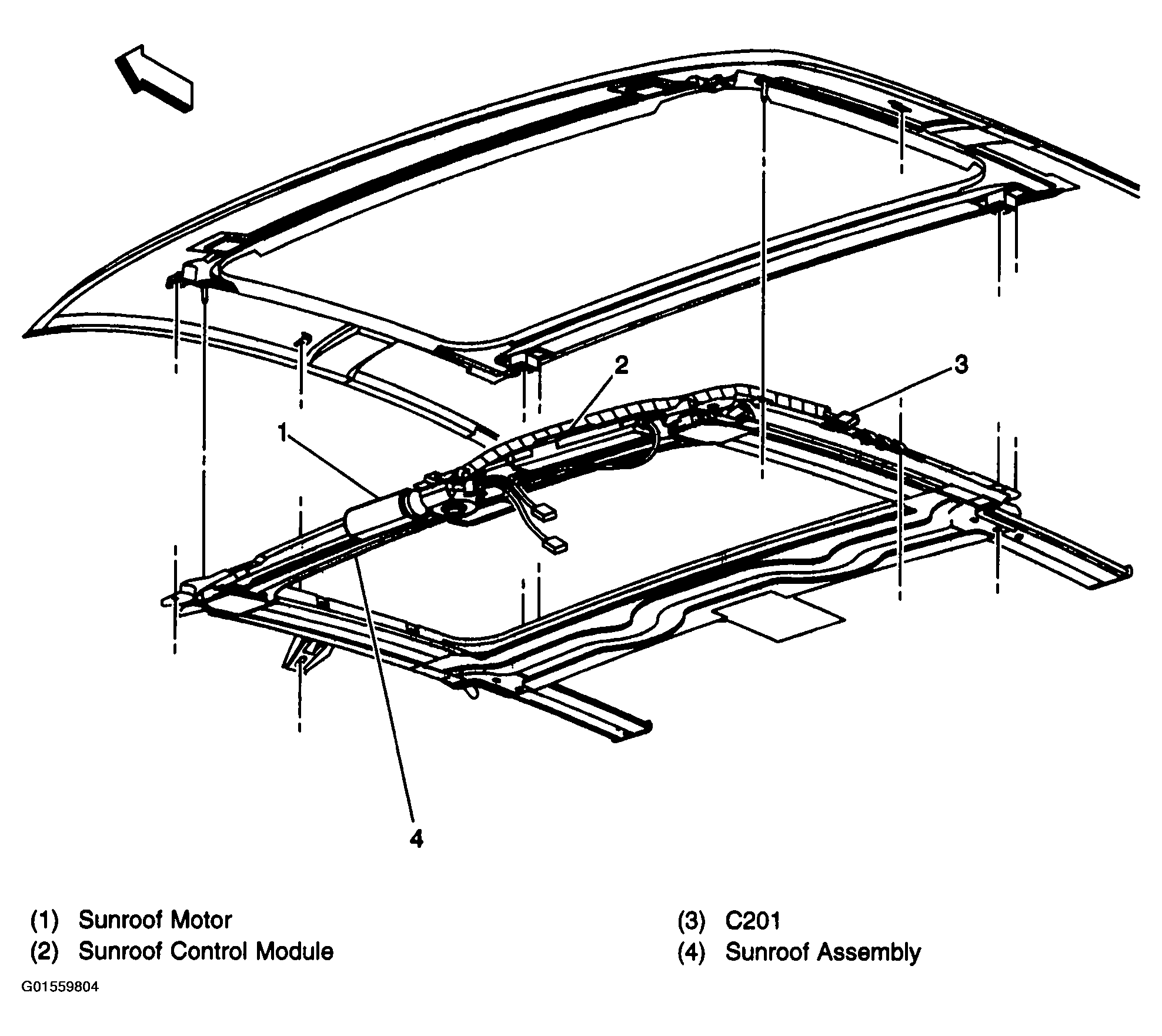

Fig 1: Identifying Sunroof Assembly Components
Courtesy of GENERAL MOTORS CORP.

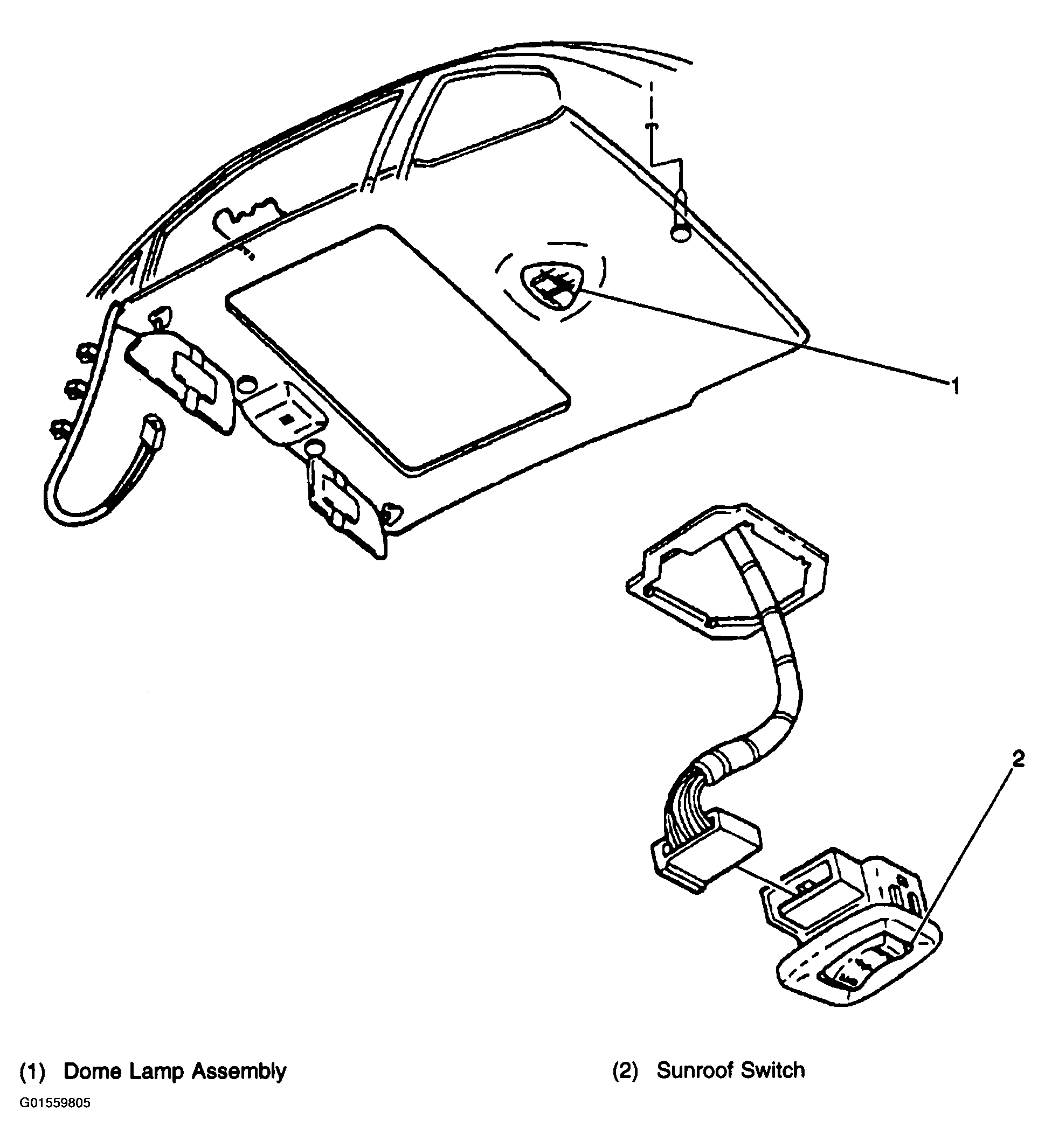

Fig 2: Identifying Dome Lamp And Sunroof Switch
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
