Installation Procedure

  1. Install the seat to the vehicle.
  2. Connect the wire harness for the SIAB, if equipped.
  3. Connect the seat belt wire harness on the driver's side.
  4. Position the seat fully forward to gain access to the seat adjuster rear nuts (3).
  5. Install the front bucket seat rear adjuster nuts (3).

    Hand tighten the nuts.

  6. Adjust the seat fully rearward.
  7. Verify both lock bars are engaged in the most forward adjustment in the same notch on both of the seat adjusters.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  8. Install the front bucket seat front adjuster nuts (3).

    Tighten

    Tighten the nuts to 28 N.m (21 lb ft).

  9. Adjust the front bucket seat to the full forward position and tighten the rear adjuster nuts.

    Tighten

    Tighten the nuts to 28 N.m (21 lb ft).

  10. Install the seat adjuster stud covers (2).
  11. Enable the SIR system, if equipped with SIAB. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM or DISABLING & ACTIVATING AIR BAG SYSTEM in SIR.

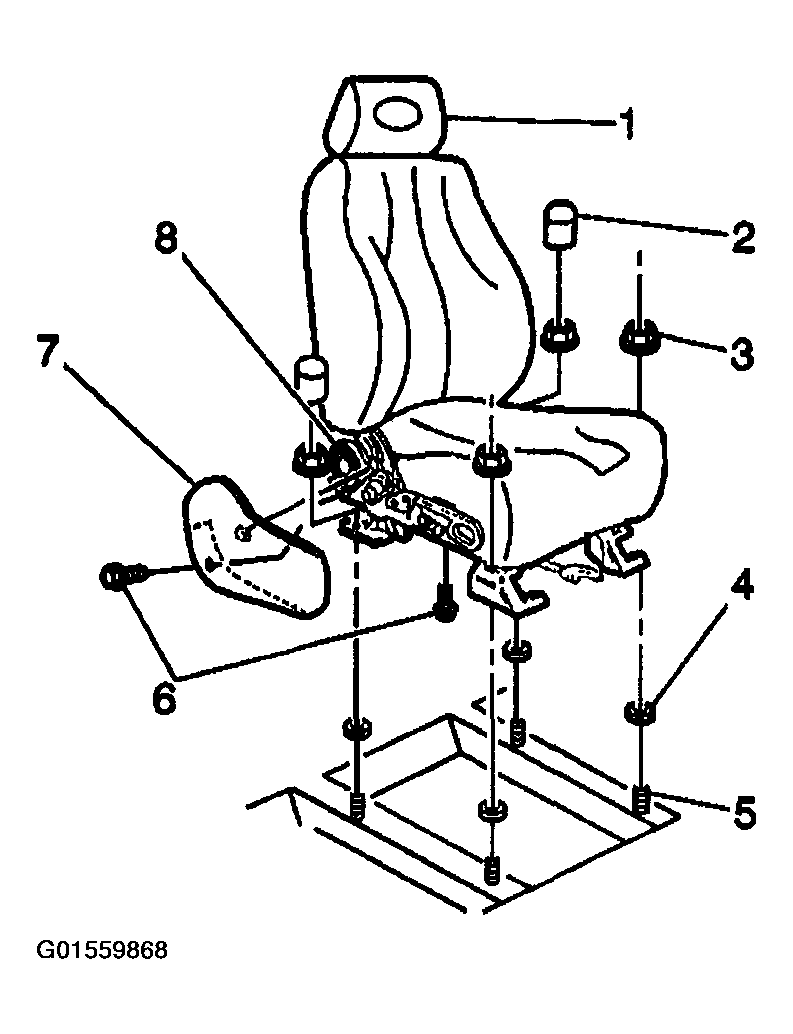

    Fig 1: Installing Front Bucket Seat
    G01559868Courtesy of GENERAL MOTORS CORP.
