Installation Procedure

  1. Connect the electrical connector to the amplifier.
  2. Install the amplifier to the bracket.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the amplifier nuts.

    Tighten

    Tighten the nuts to 3.5 N.m (31 lb.in).

  4. Reposition the rear compartment trim panel. Refer to COMPARTMENT TRIM PANEL REPLACEMENT - REAR in Body Rear End.

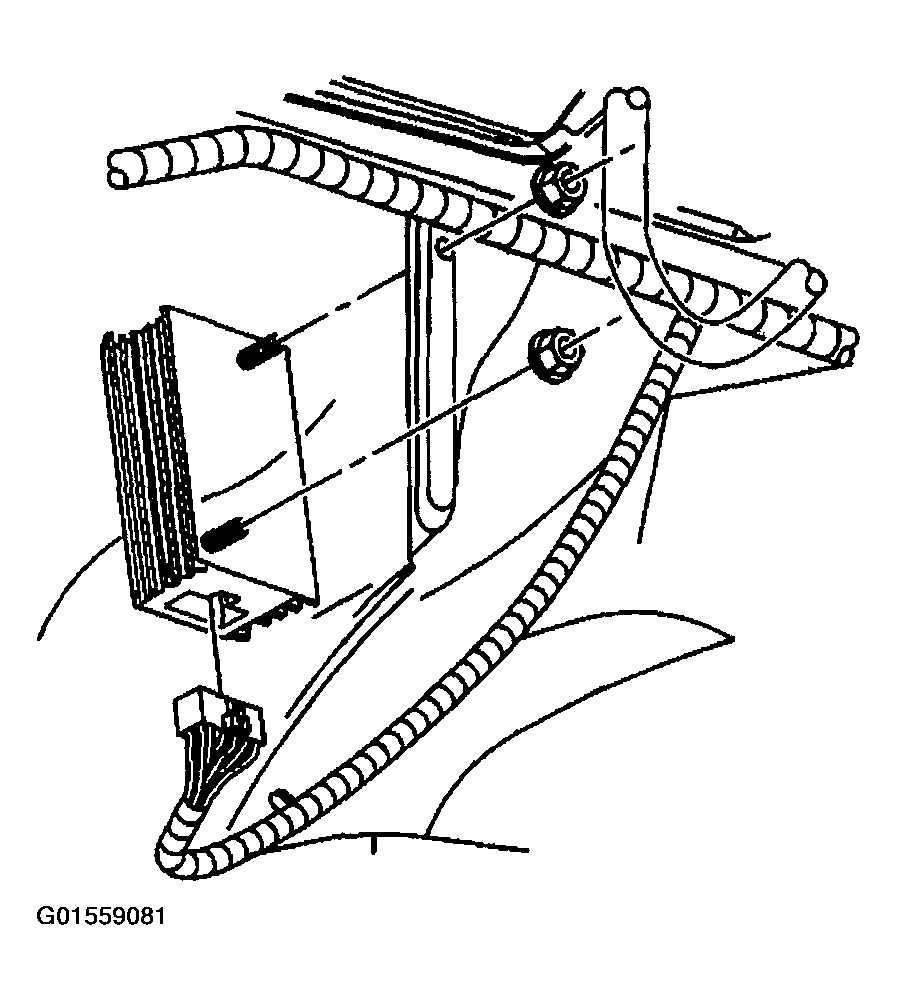

    Fig 1: Connecting Electrical Connector To Amplifier
    G01559081Courtesy of GENERAL MOTORS CORP.
