Data Link Communications Connector End Views

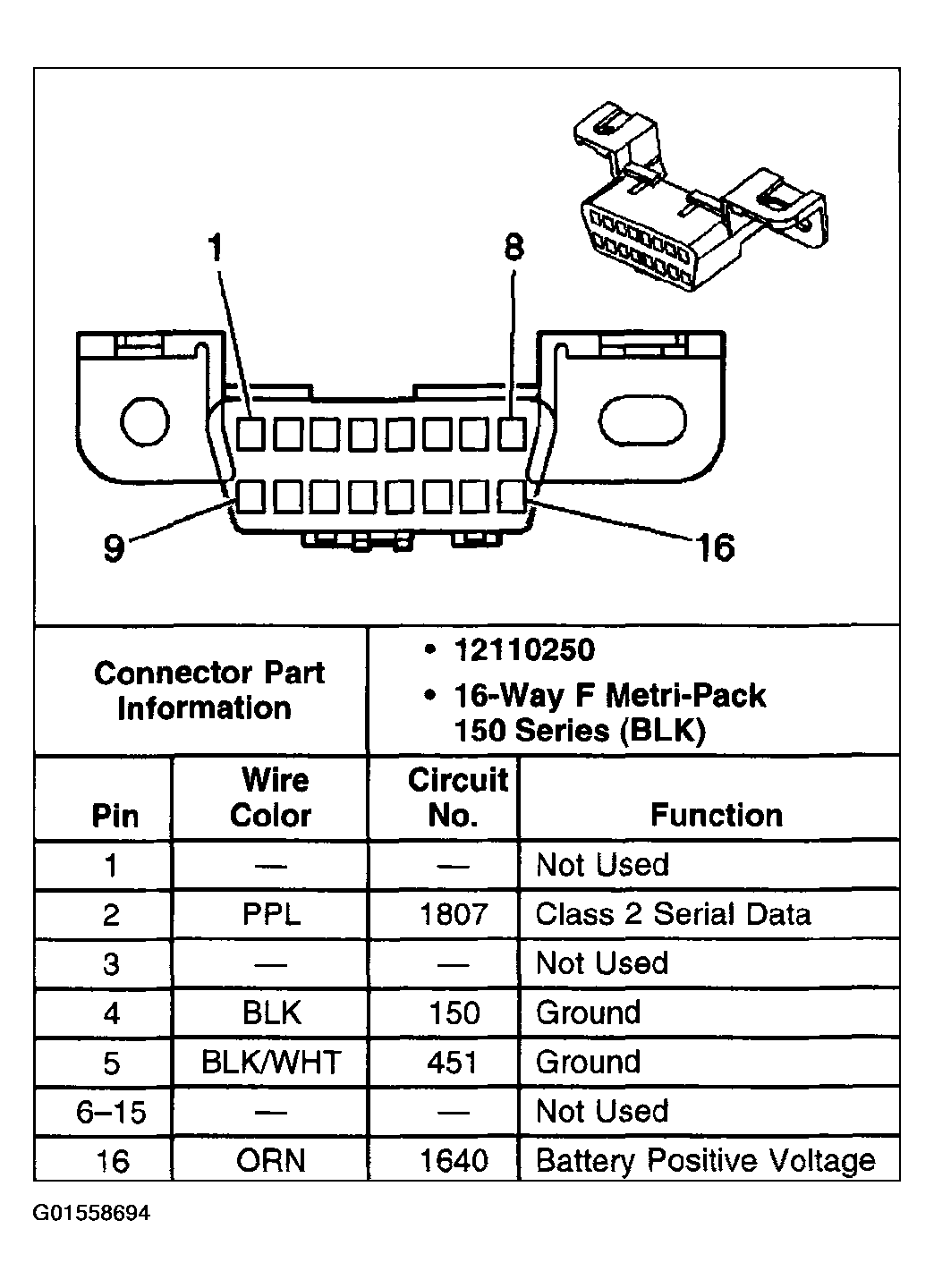

Fig 1: Identifying Data Link Connector Terminals

G01558694

Courtesy of GENERAL MOTORS CORP.
