Wiper/Washer System Connector End Views

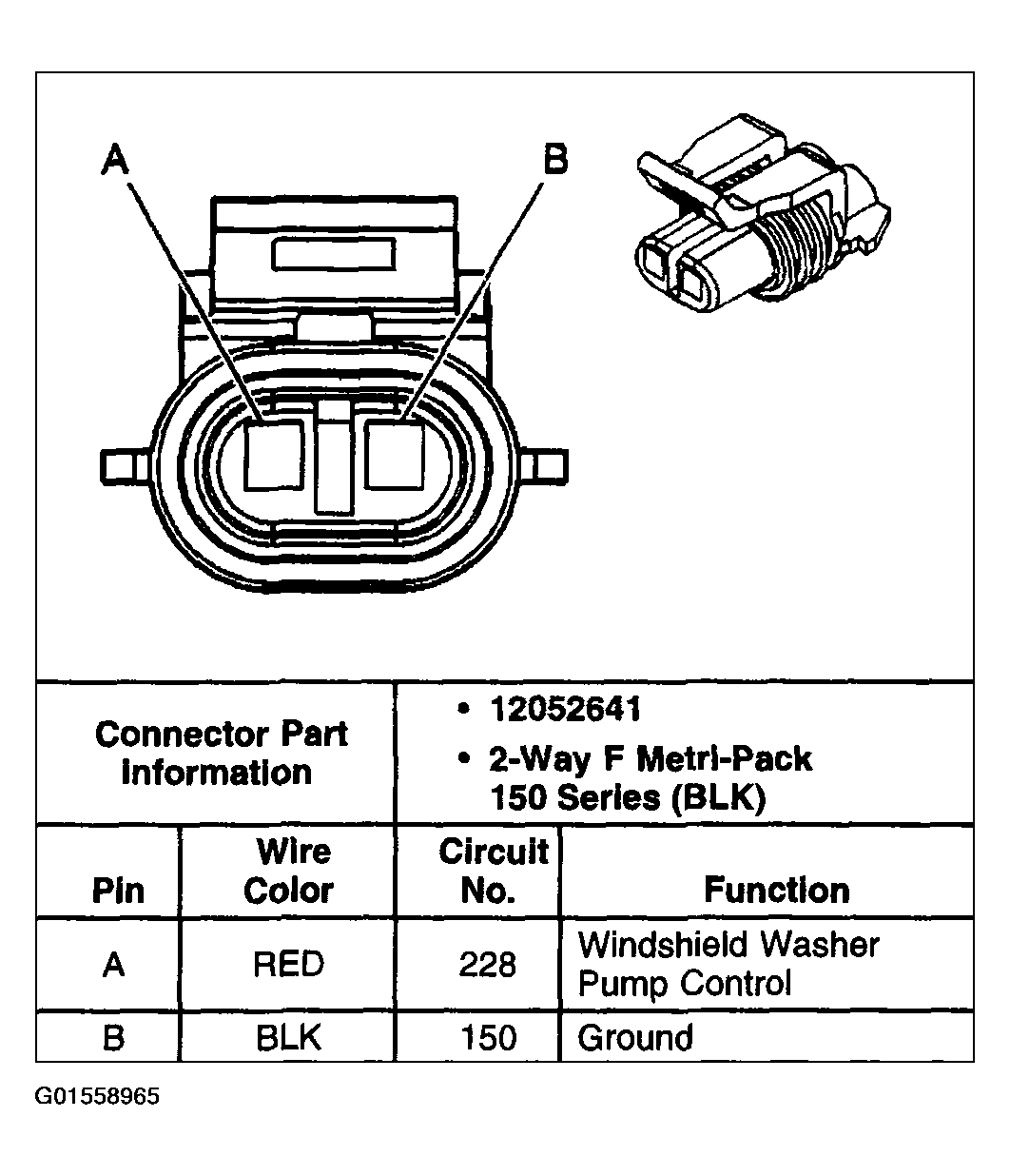

Fig 1: Identifying Windshield Washer Pump Connector Terminals
G01558965Courtesy of GENERAL MOTORS CORP.

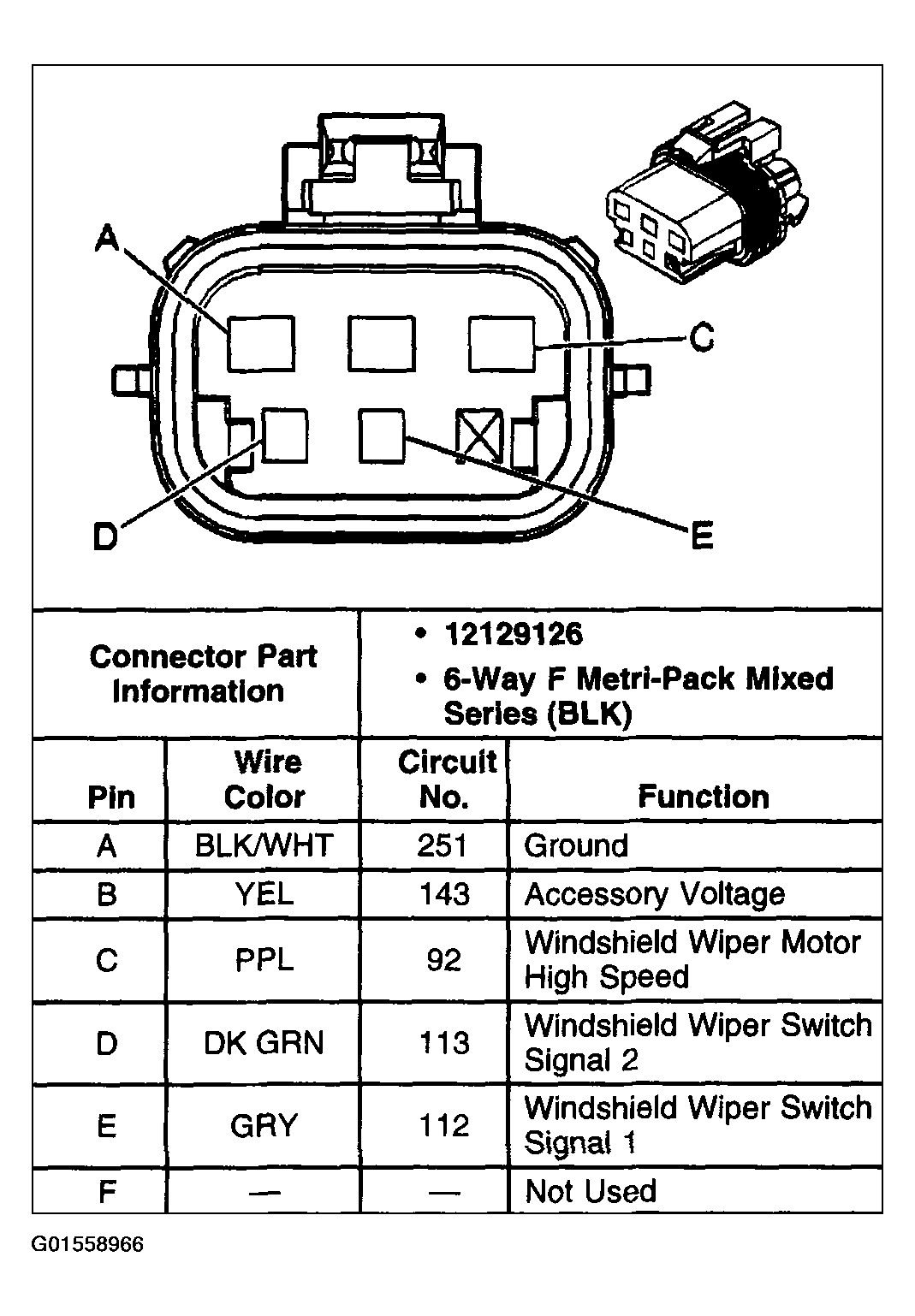

Fig 2: Identifying Windshield Wiper Motor Assembly Connector Terminals
G01558966Courtesy of GENERAL MOTORS CORP.

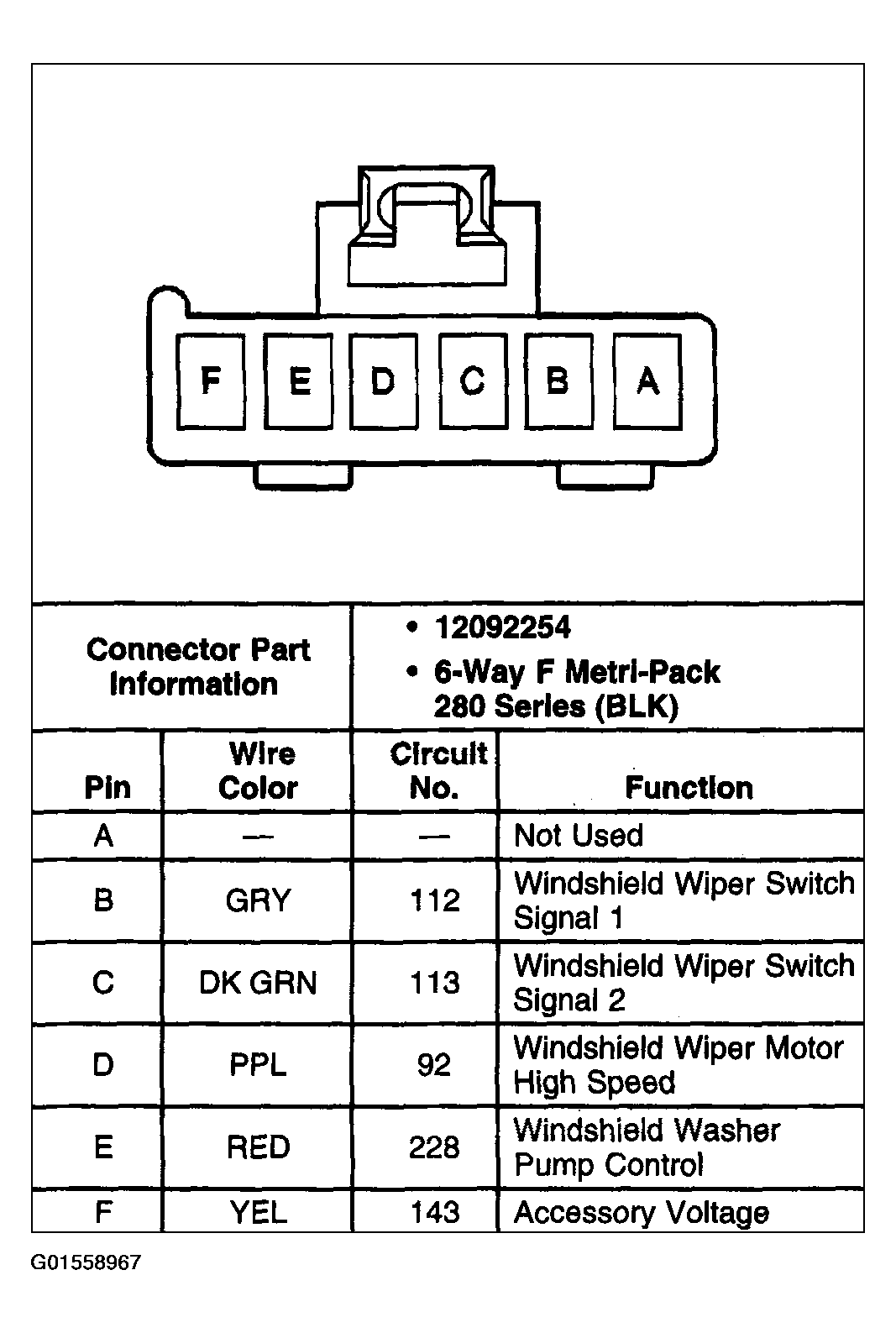

Fig 3: Identifying Windshield Wiper Switch Assembly Connector Terminals
G01558967Courtesy of GENERAL MOTORS CORP.
