LEMON Manuals
: Even more car manuals for everyone
Home
>>
Pontiac
>>
2003
>>
Sunfire Automatic
>>
Repair and Diagnosis
>>
Restraints
>>
Restraints Control Systems
>>
Seat Belt System
>>
Component Locator
>>
Seat Belt Connector End Views
Seat Belt Connector End Views

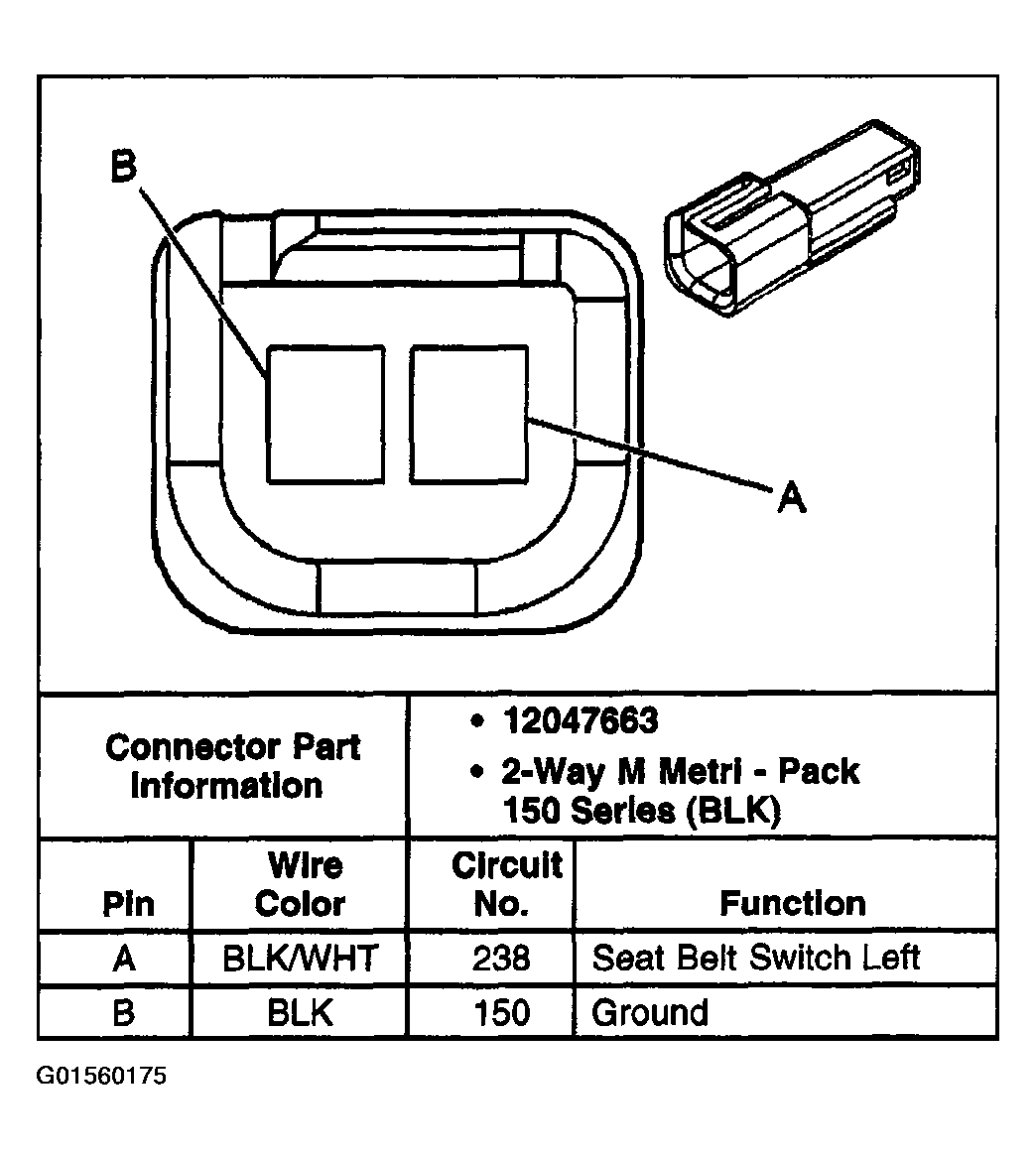

Fig 1: Identifying Seat Belt Connector End Views (Seat Belt Switch)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
