Removal Procedure

  1. Close the sunroof.
  2. Remove the headliner. Refer to HEADLINER REPLACEMENT in Interior Trim.
  3. Remove the tie wraps securing the power sunroof control module wire harness to the drive and return tubes.
  4. Release the retainers for the power sunroof control module by sliding the control module (2) towards the middle of the vehicle.
  5. Disconnect the wire harness electrical connectors from the power sunroof control module (2).

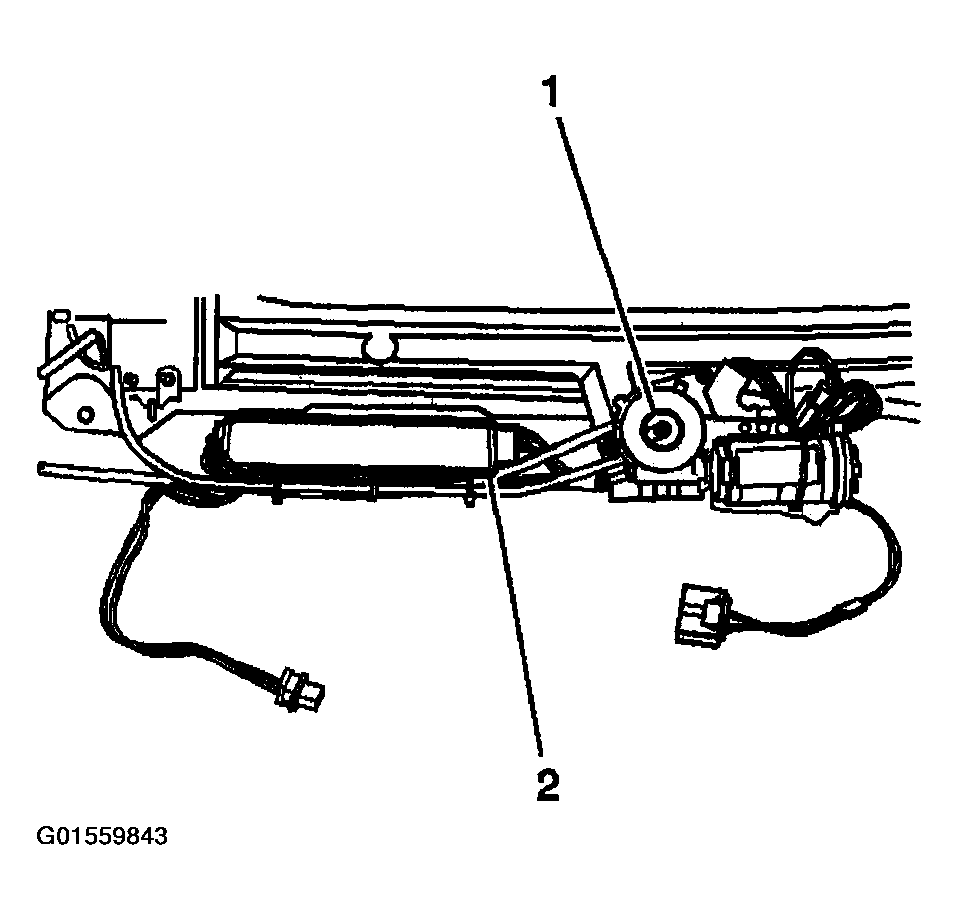

    Fig 1: Disconnecting Wire Harness Electrical Connectors
    G01559843Courtesy of GENERAL MOTORS CORP.
