Automatic Transmission Shift Lock Control Schematics

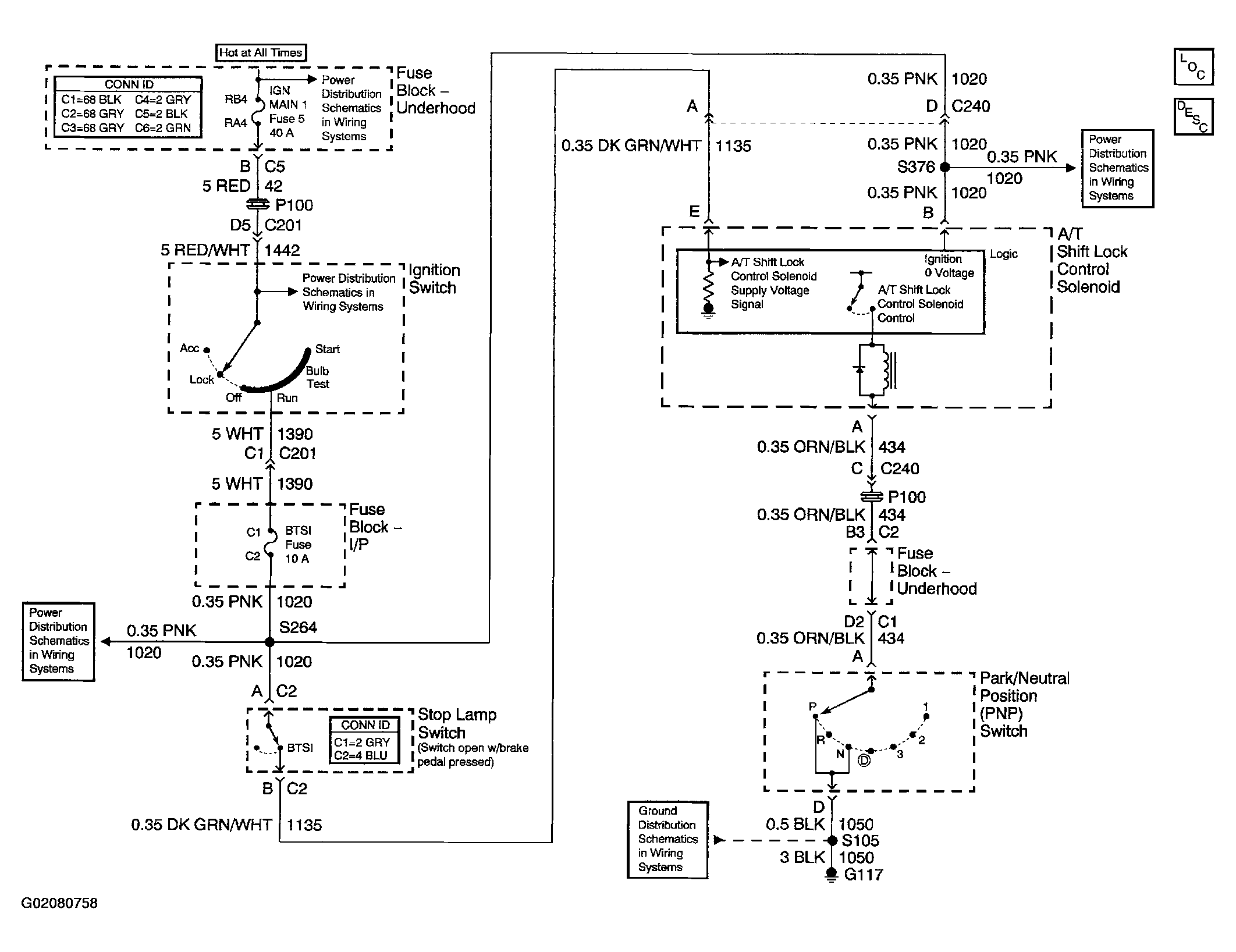

Fig 1: Automatic Transmission Shift Lock Control Schematics Diagram

G02080758

Courtesy of GENERAL MOTORS CORP.
