Removal Procedure

  1. Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Battery.
  2. Remove the center console. Refer to CONSOLE REPLACEMENT - FRONT FLOOR in Instrument Panel, Gages, and Console.
  3. Disconnect the automatic transmission shift lock control actuator electrical connector.

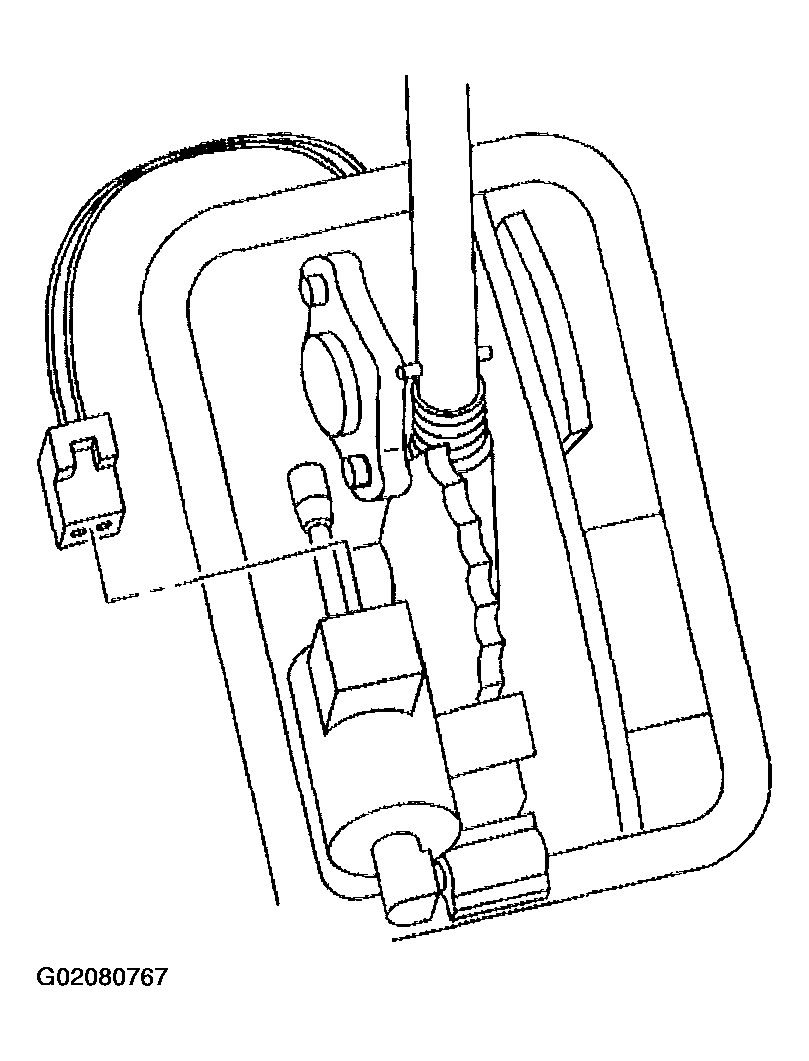

    Fig 1: Disconnecting Automatic Transmission Shift Lock Control Actuator Electrical Connector
    G02080767Courtesy of GENERAL MOTORS CORP.
  4. Remove both ends of the automatic transmission shift lock control actuator from the pivot points (1).

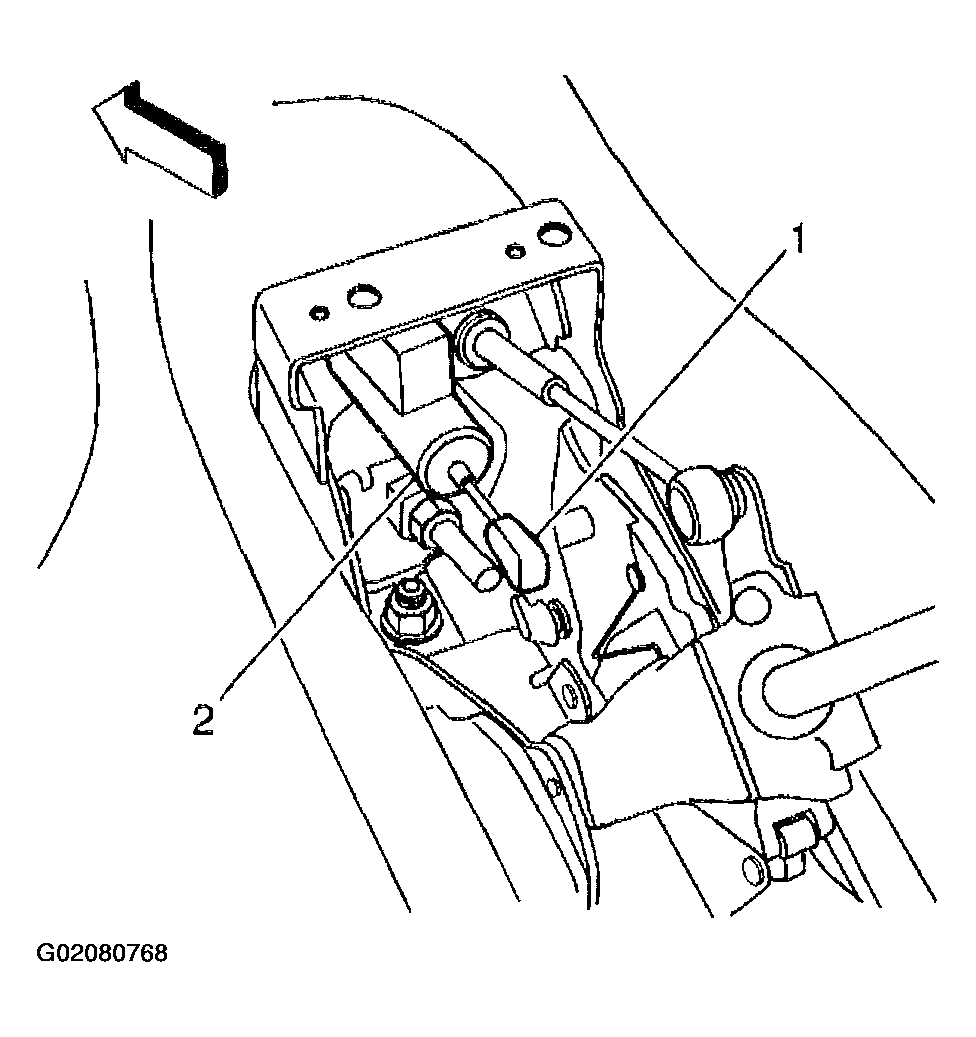

    Fig 2: Removing Ends Of Automatic Transmission Shift Lock Control Actuator From Pivot Points
    G02080768Courtesy of GENERAL MOTORS CORP.
