Removal Procedure

CAUTION: Refer to SIR CAUTION .
  1. Disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. Remove the upper and lower trim covers. Refer to Steering Column Trim Covers Replacement  .
  3. Remove the wire harness assembly (4) from the wire harness strap (5).
  4. Remove the wire harness straps (3) from the wire harness assembly (4).
  5. Remove the wire harness strap (2) from the upper tilt head assembly (1).

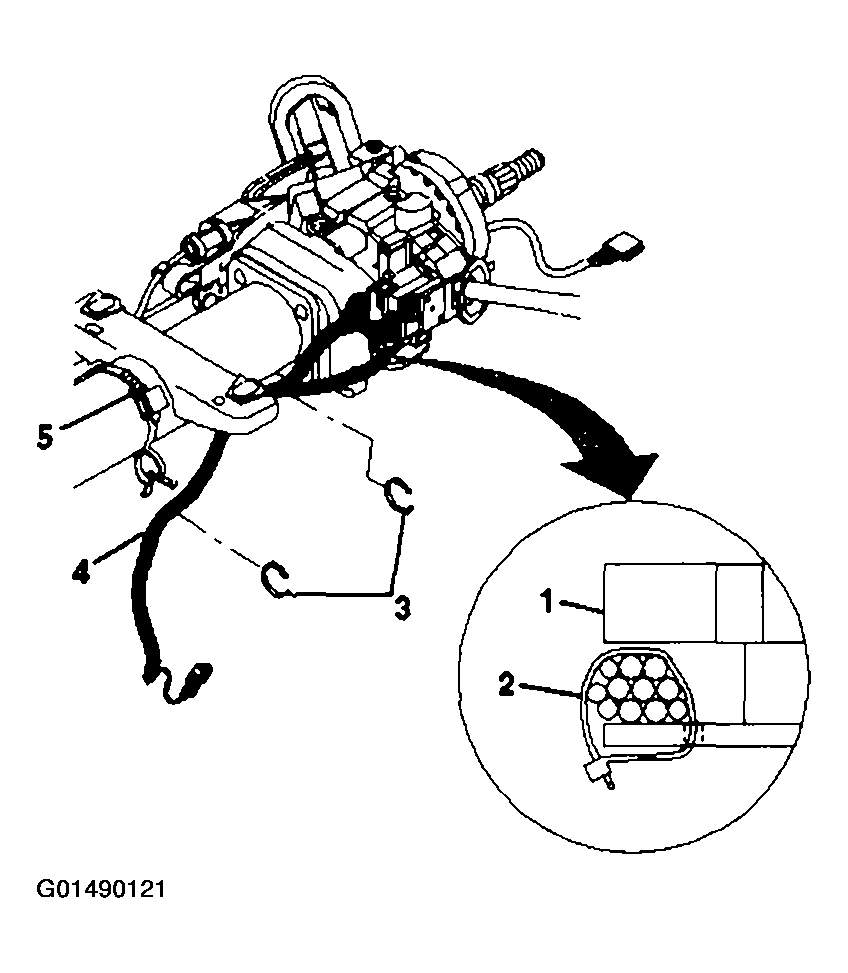

    Fig 1: Removing Wire Harness Assembly & Straps
    G01490121Courtesy of GENERAL MOTORS CORP.
  6. Slide the turn signal switch assembly connectors (2) out from the bulk head connector (1).

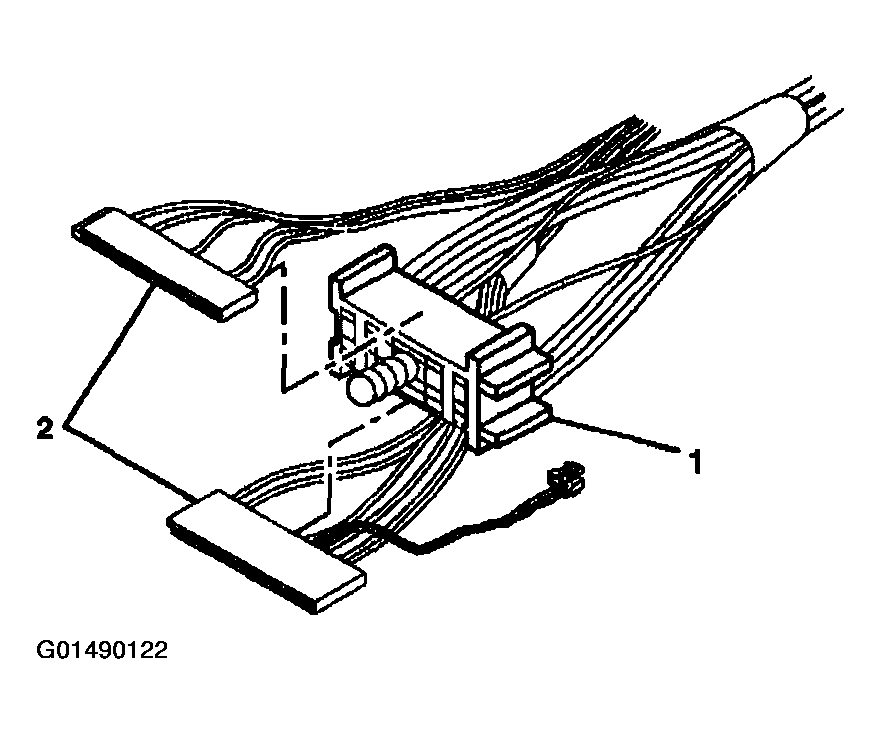

    Fig 2: Sliding Turn Signal Switch Assembly Connectors Out From Bulk Head Connector
    G01490122Courtesy of GENERAL MOTORS CORP.
  7. Pull the PASSKEY® III (2) off of the ignition lock cylinder case (1).

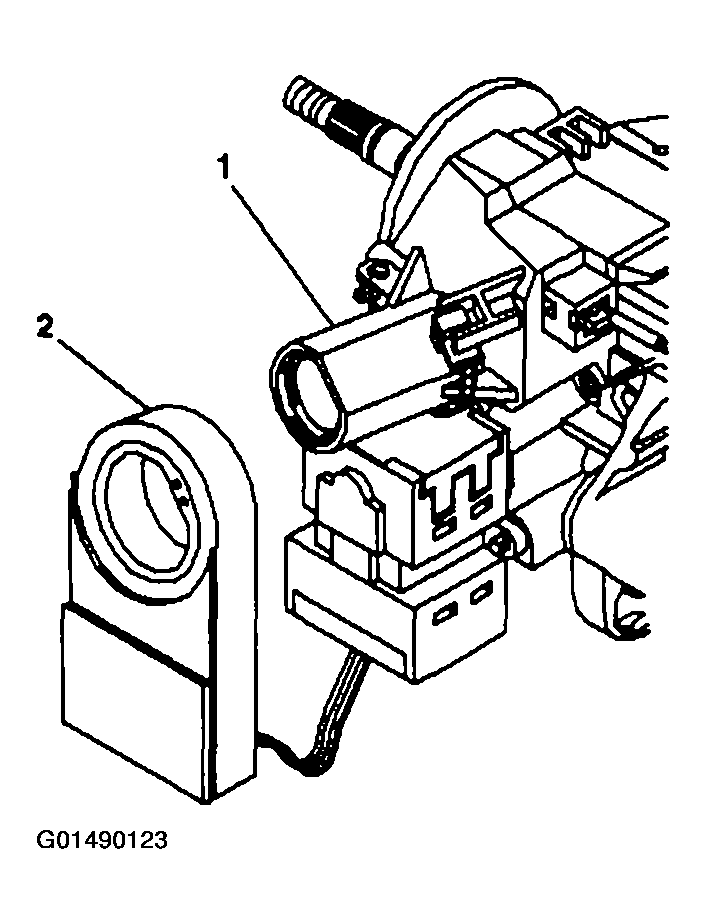

    Fig 3: Ignition Lock Cylinder Case
    G01490123Courtesy of GENERAL MOTORS CORP.
  8. Remove the key alarm connector (1) from the ignition lock cylinder case (2).
  9. Remove the 2 tapping screws from the ignition switch assembly (3).

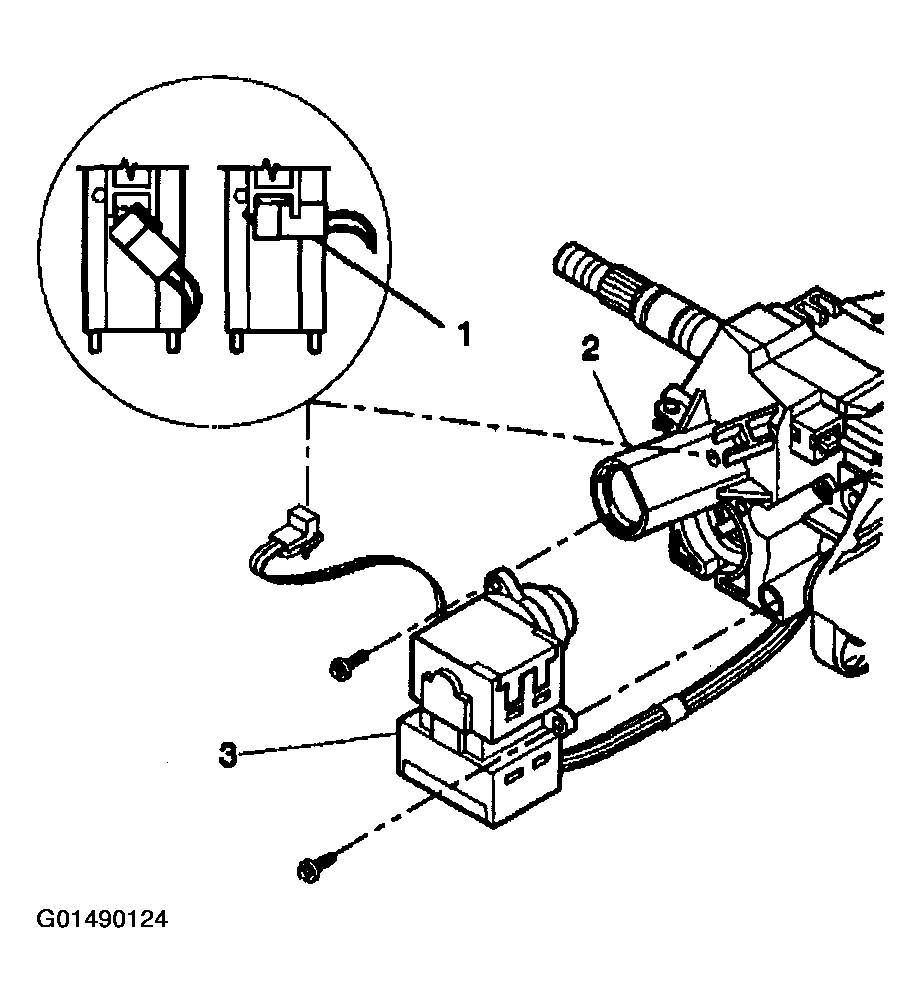

    Fig 4: Removing Key Alarm Connector From Ignition Lock Cylinder Case
    G01490124Courtesy of GENERAL MOTORS CORP.
