Home >> Pontiac >> 2003 >> Grand Prix GTP >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Seat Belt System >> Repair Instructions >> Child Restraint Tether Anchor Replacement >> Removal Procedure

Removal Procedure

  1. Remove the rear shelf trim panel. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF in Interior Trim.
  2. Remove the screws from the child seat tether brackets.
  3. Remove the child seat tether brackets from the rear shelf.

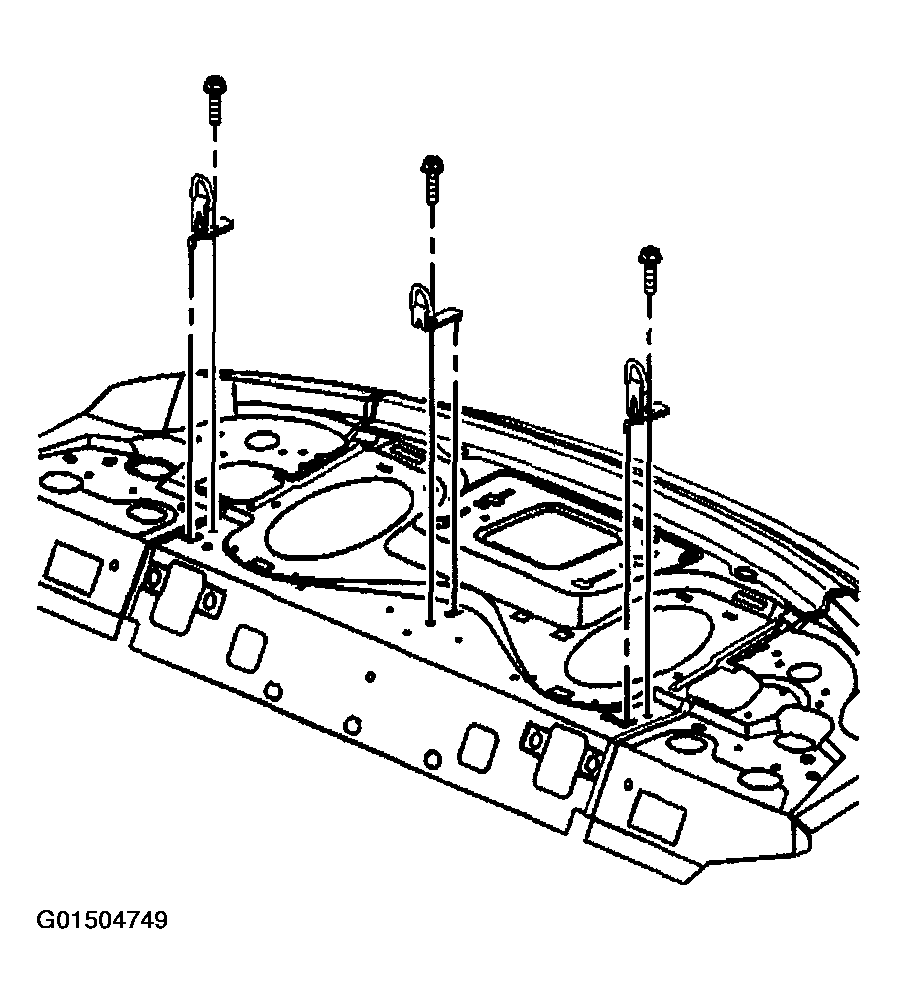

    Fig 1: Removing Procedure Child Restraint Tether Anchor
    G01504749Courtesy of GENERAL MOTORS CORP.
