Installation Procedure

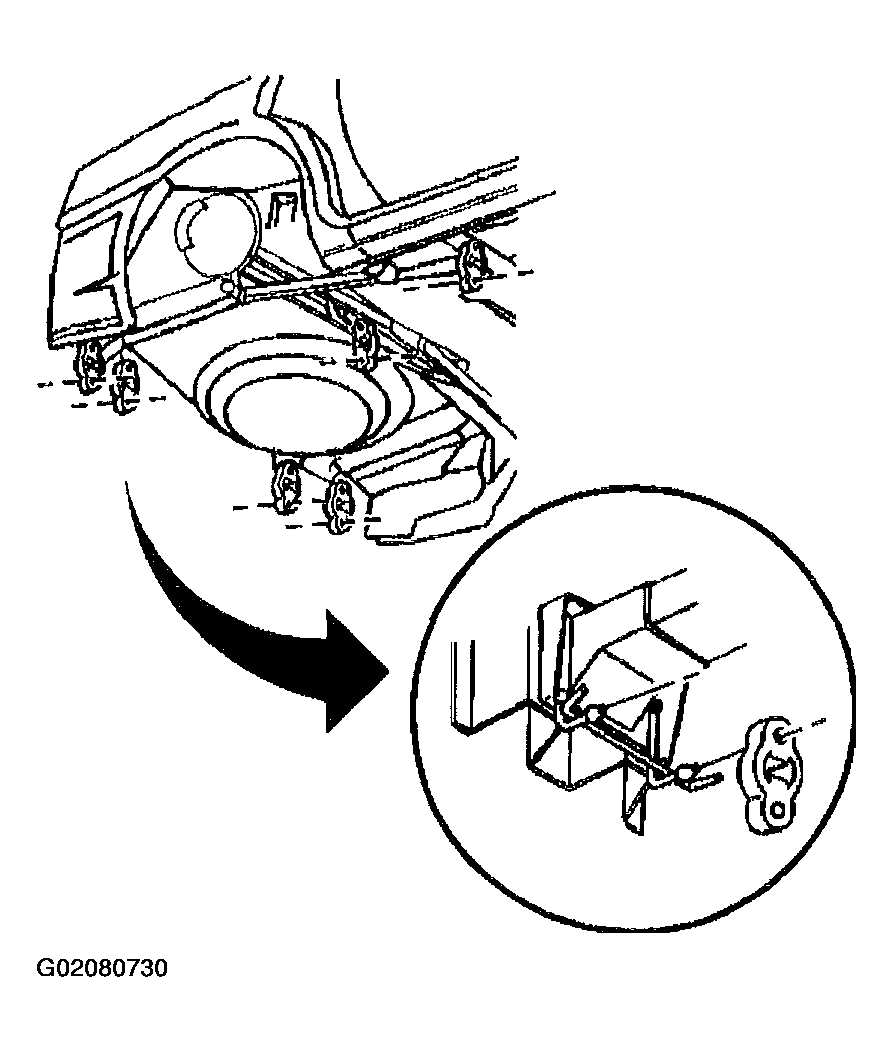

Install the exhaust pipe rear hangers to the muffler and the rear exhaust hanger brackets.

Fig 1: Installing Exhaust Pipe Rear Hangers To Muffler And Rear Exhaust Hanger Brackets
Courtesy of GENERAL MOTORS CORP.

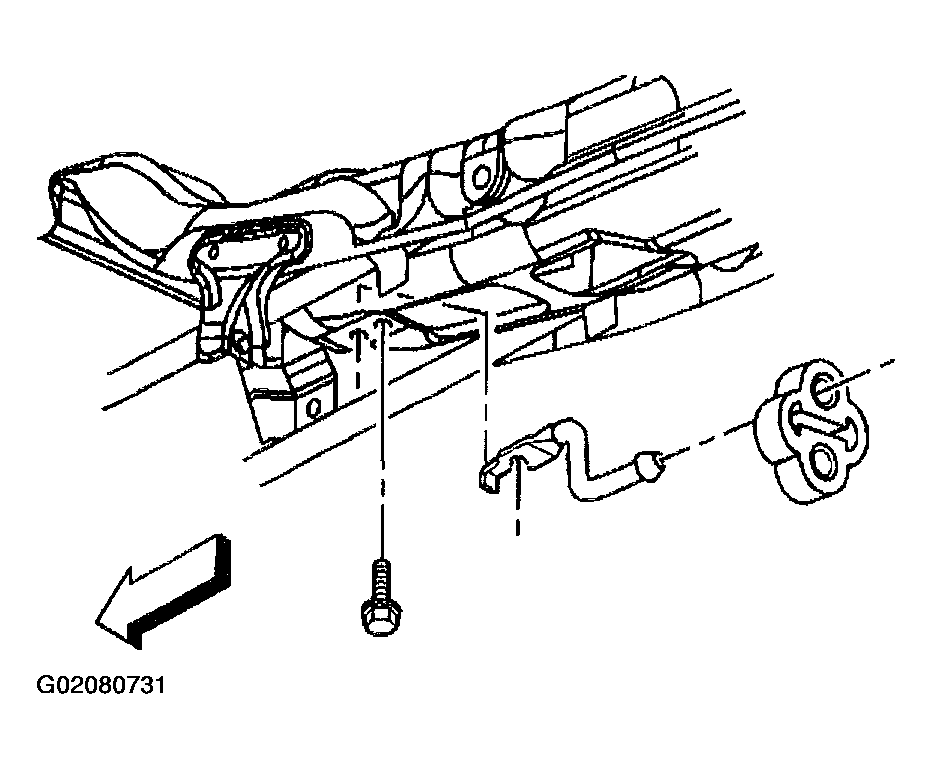

Install the exhaust pipe hanger to the exhaust pipe and the exhaust hanger bracket.

Fig 2: Installing Exhaust Pipe Hanger To Exhaust Pipe And Exhaust Hanger Bracket
Courtesy of GENERAL MOTORS CORP.

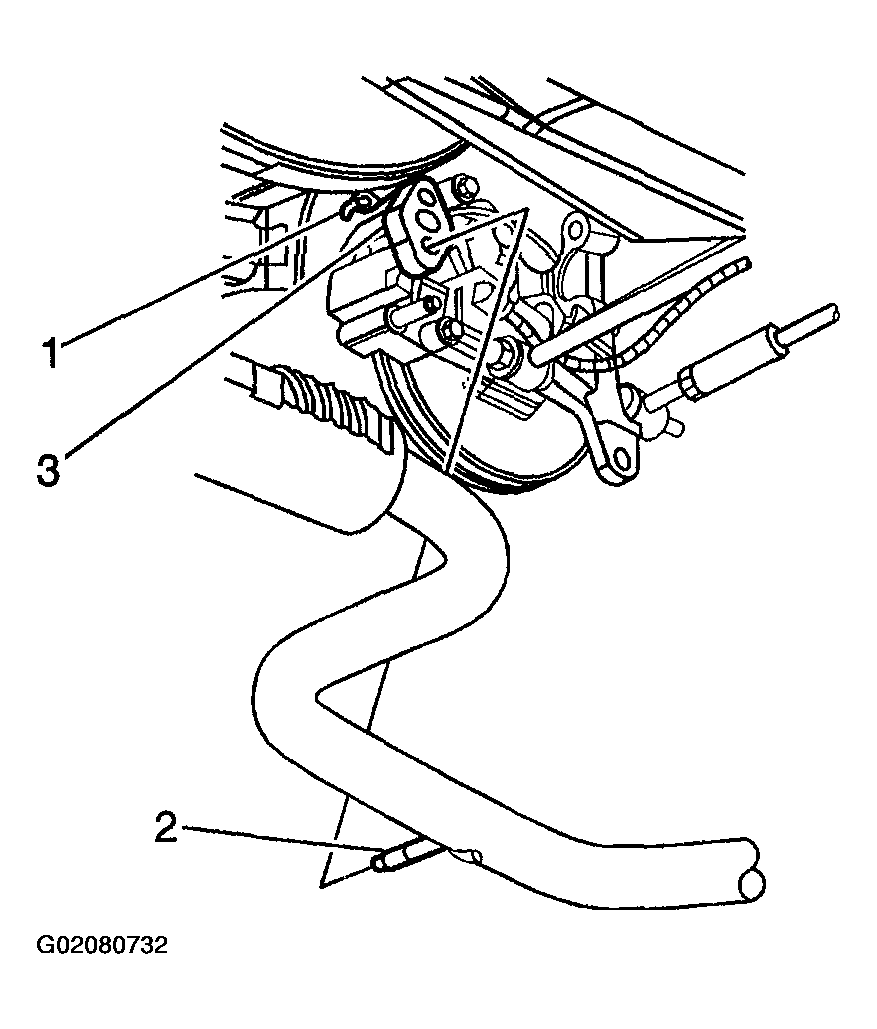

Install the exhaust pipe hanger (3) to the exhaust pipe (2) and the exhaust hanger bracket (1).
Remove the support from the exhaust system.
Inspect the exhaust system for underbody contact.
Lower the vehicle.

Fig 3: Installing Exhaust Pipe Hanger To Exhaust Pipe And Exhaust Hanger Bracket
Courtesy of GENERAL MOTORS CORP.
