Instrument Panel Cluster, C2 Connector End View

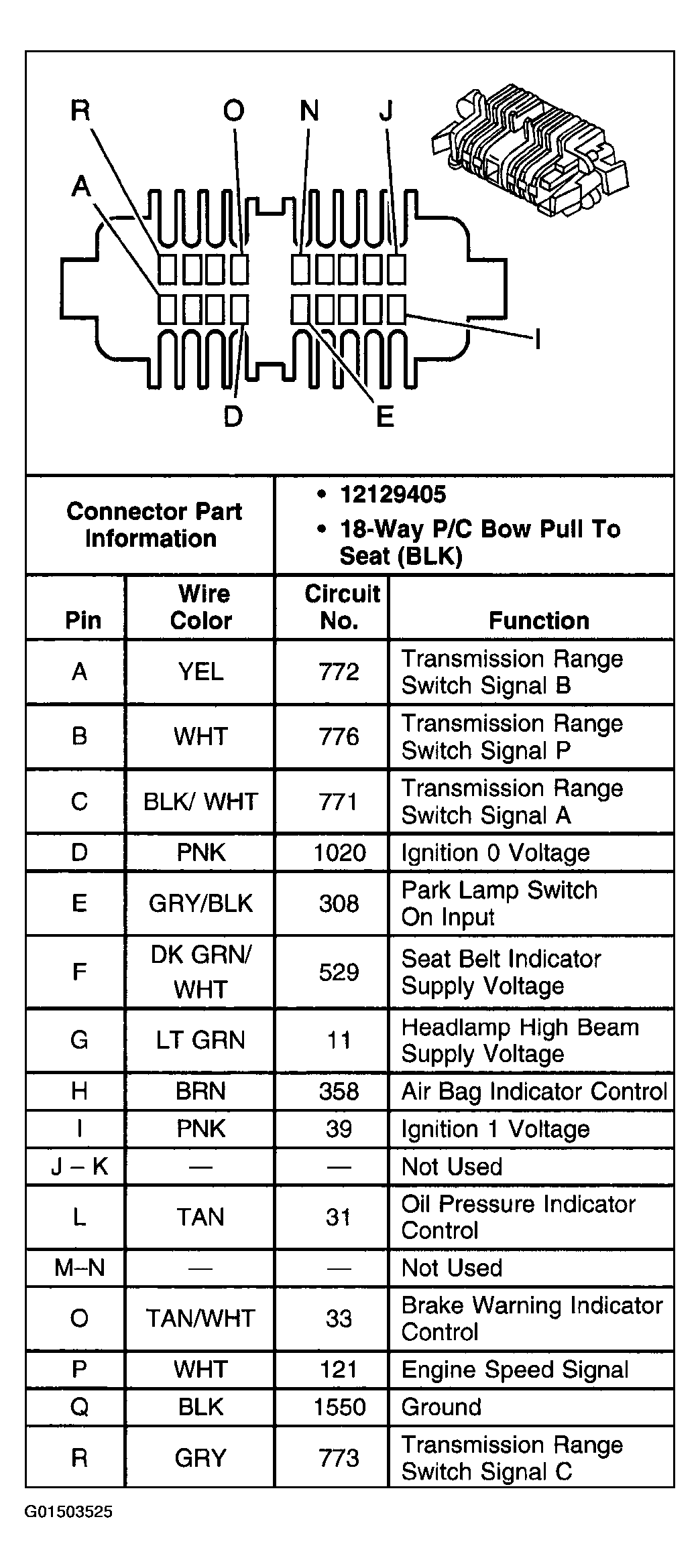

Fig 1: Instrument Panel Cluster, C2 Connector End View

G01503525

Courtesy of GENERAL MOTORS CORP.
