Fuel Pump And Sender Assembly Connector End View

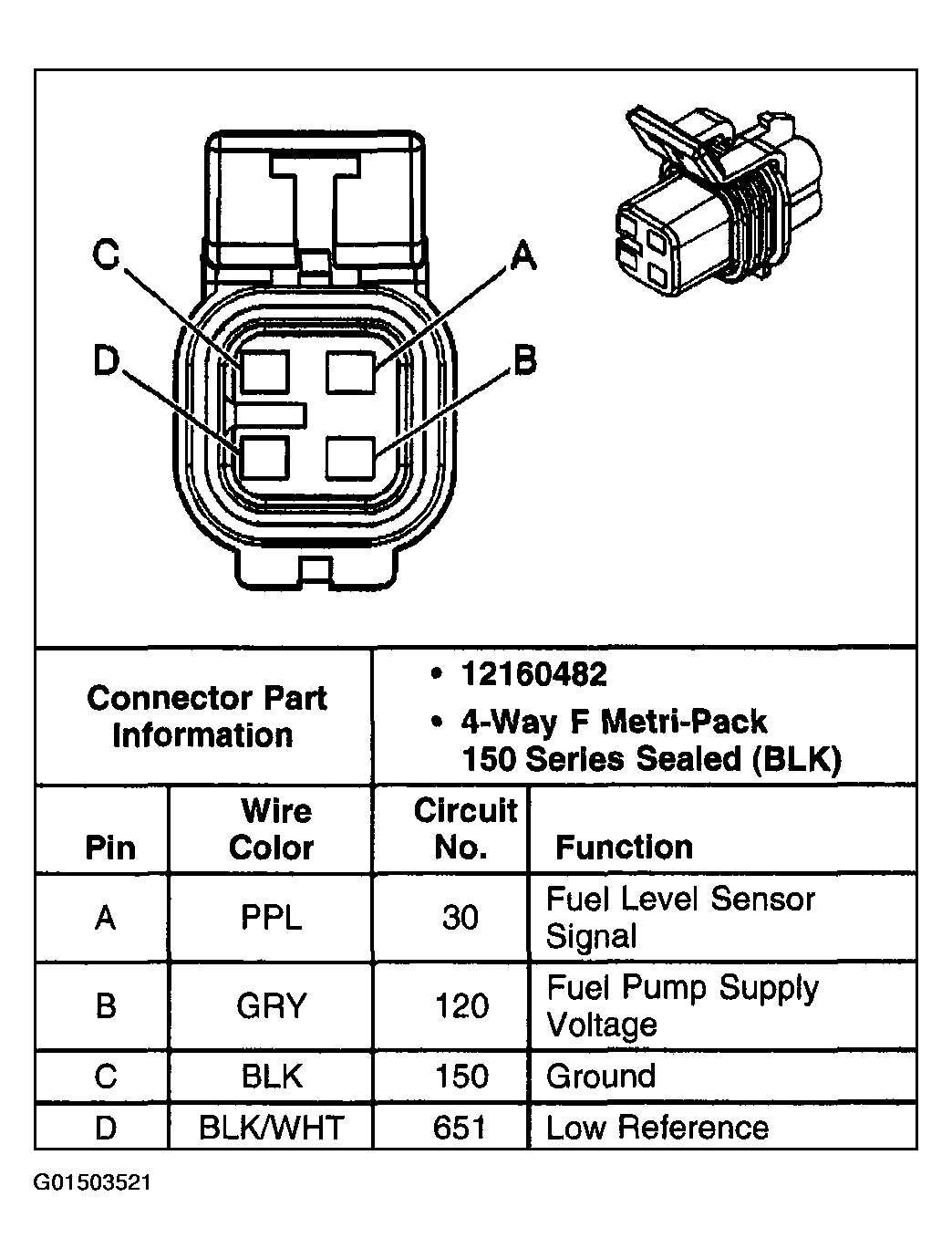

Fig 1: Fuel Pump And Sender Assembly Connector End View

G01503521

Courtesy of GENERAL MOTORS CORP.
