Home >> Pontiac >> 2003 >> Grand Prix GTP >> Repair and Diagnosis >> Electrical >> Horns >> Component Locator >> Horns Connector End Views

Horns Connector End Views

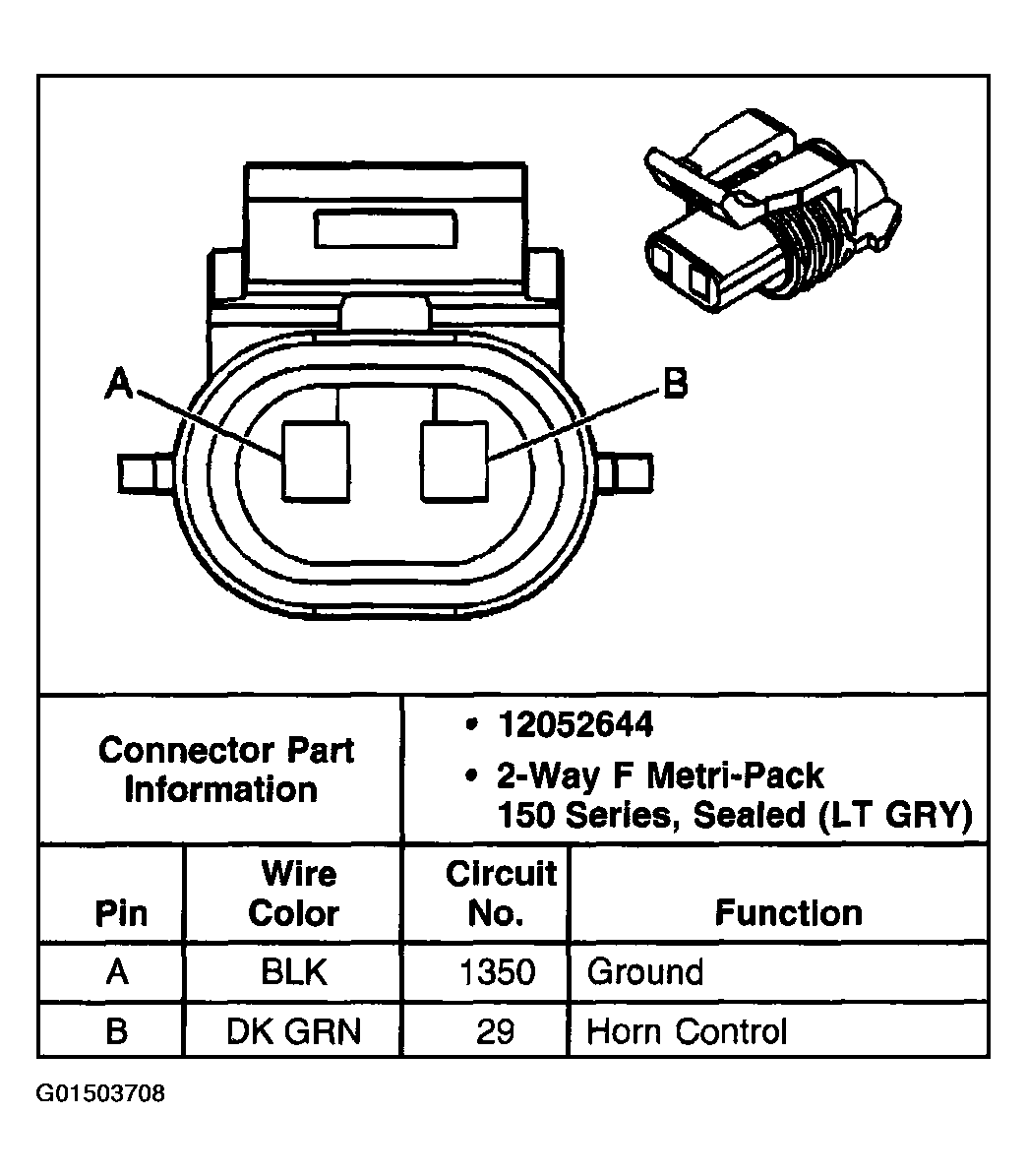

Fig 1: Horn Assembly Connector End View

G01503708

Courtesy of GENERAL MOTORS CORP.
