HVAC Control Module, C2 Connector End View (1 Of 2)

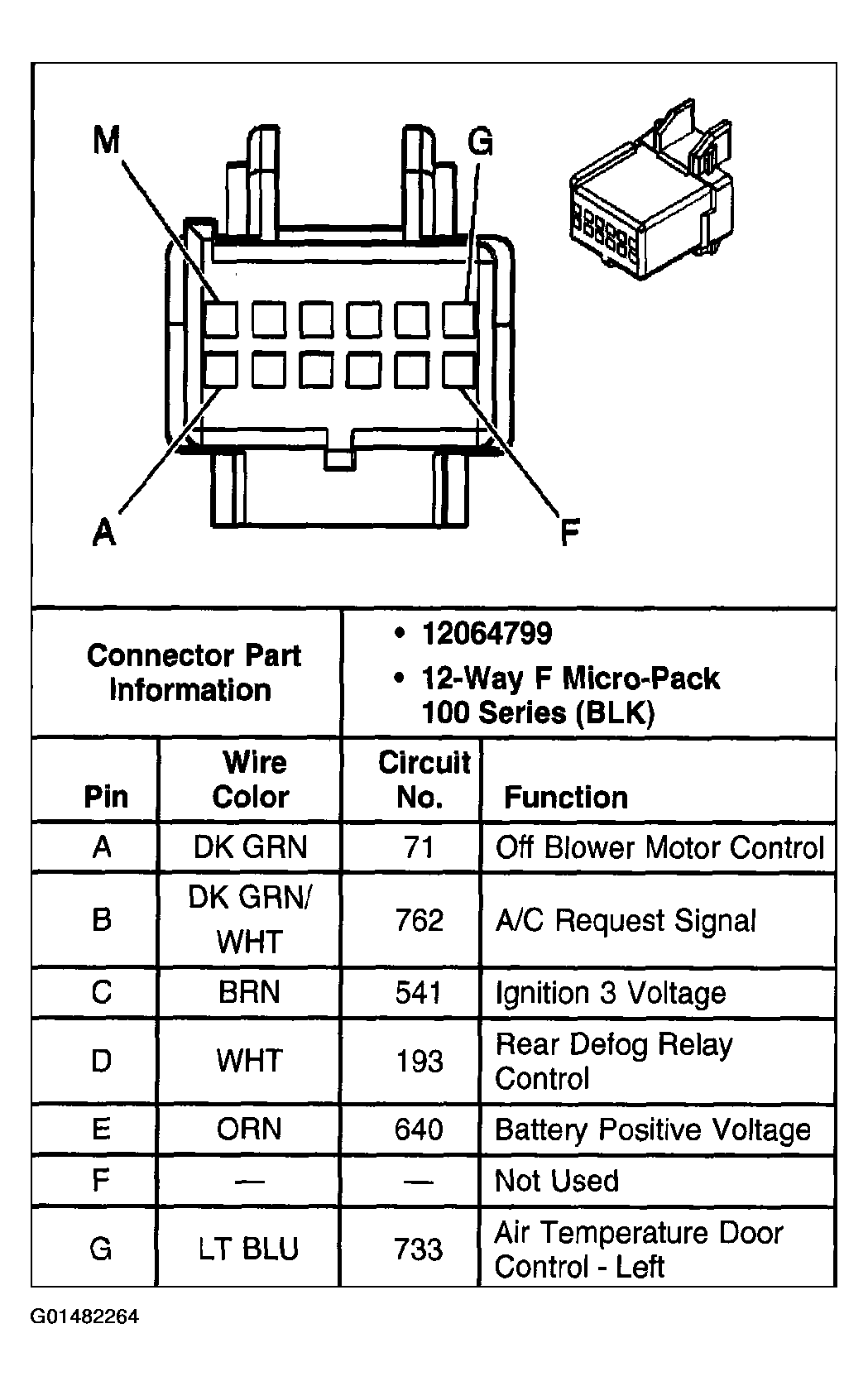

Fig 1: HVAC Control Module, C2 Connector End View (1 Of 2)

G01482264

Courtesy of GENERAL MOTORS CORP.
