Home >> Pontiac >> 2003 >> Grand Prix GTP >> Repair and Diagnosis >> Body & Frame >> Windows >> Stationary Window System >> Repair Instructions >> Rearview Mirror Replacement >> Removal Procedure

Removal Procedure

  1. Remove the wire harness cover from the lighted rearview mirror, if equipped.
  2. Use a small flat-bladed tool in order to remove the rearview mirror from the rearview mirror support.
  3. Disconnect the electrical connector from the lighted rearview mirror, if equipped.

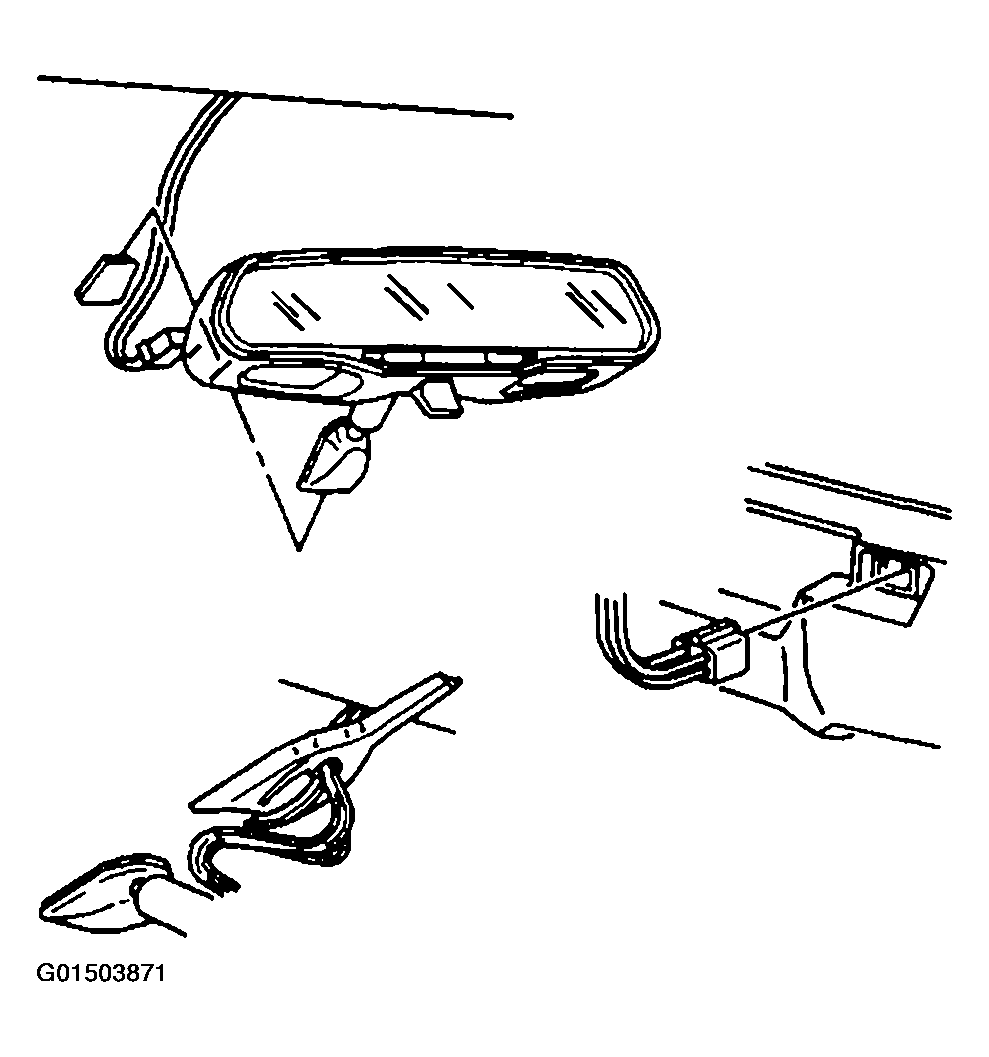

    Fig 1: Disconnecting Electrical Connector From Lighted Rearview Mirror
    G01503871Courtesy of GENERAL MOTORS CORP.
