Home >> Pontiac >> 2003 >> Grand Prix GTP >> Repair and Diagnosis >> Body & Frame >> Windows >> Stationary Window System >> Repair Instructions >> Ambient Air Temperature Sensor Replacement >> Removal Procedure

Removal Procedure

  1. Raise and suitably support the vehicle. Refer to JACKING AND LIFTING in General Information.
  2. Disconnect the electrical connector from the outside air temperature sensor that is located on the front, right radiator air baffle.
  3. Pull on the retainer to remove the outside air temperature sensor.

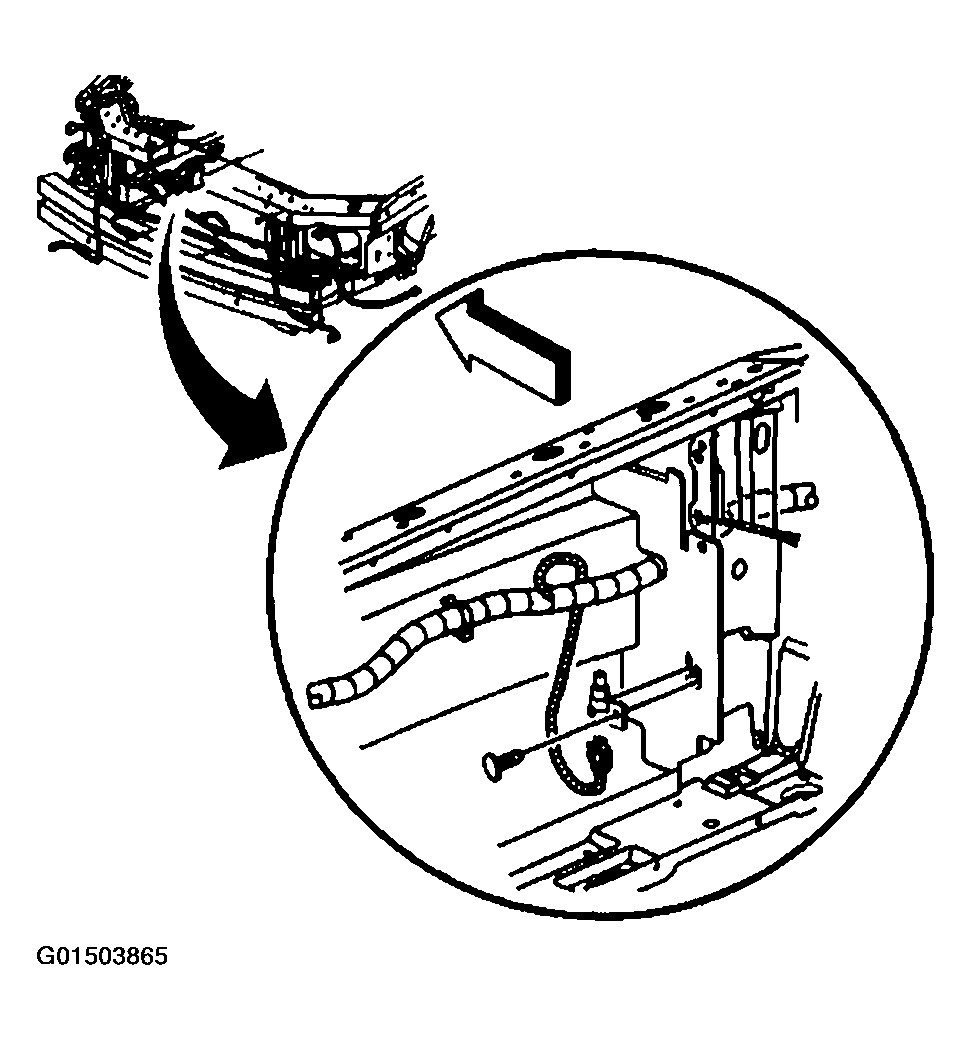

    Fig 1: Removing Outside Air Temperature Sensor
    G01503865Courtesy of GENERAL MOTORS CORP.
