Installation Procedure

  1. Position the control module to the sunroof module.
  2. Connect the electrical connectors to the ends of the control module.
    Fig 1: Installing Control Module To Sunroof Module
    G01504298Courtesy of GENERAL MOTORS CORP.
  3. Install the control module to the sunroof module by sliding it to the right to engage the retainers.
    Fig 2: Installing Control Module To Sunroof Module
    G01504299Courtesy of GENERAL MOTORS CORP.
  4. Install the nylon tie straps at both ends of the control module (2).
  5. Check the operation of the sunroof module.
  6. Install the headliner. Refer to HEADLINER REPLACEMENT in Interior Trim.

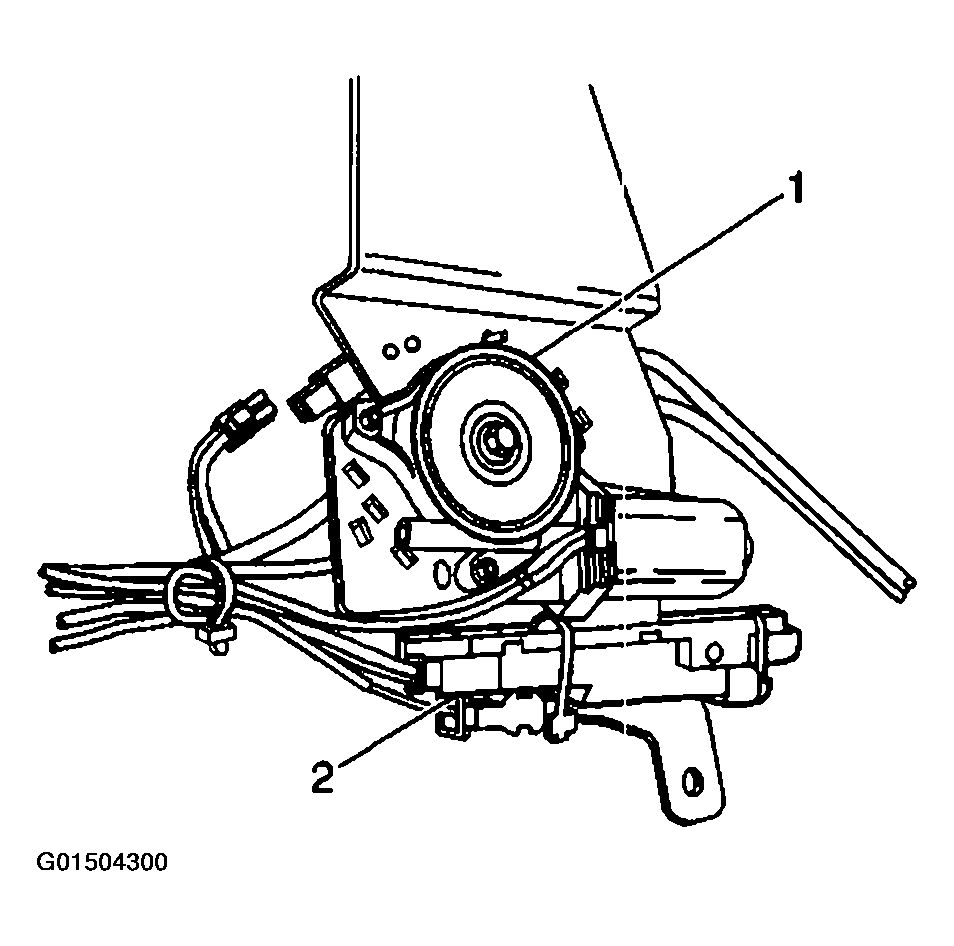

    Fig 3: Installing Nylon Tie Straps At Both Ends Of Control Module
    G01504300Courtesy of GENERAL MOTORS CORP.
