Removal Procedure

  1. Disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in SIR.
  2. Remove the steering wheel control switches from the steering wheel pad using a small flat-bladed tool.

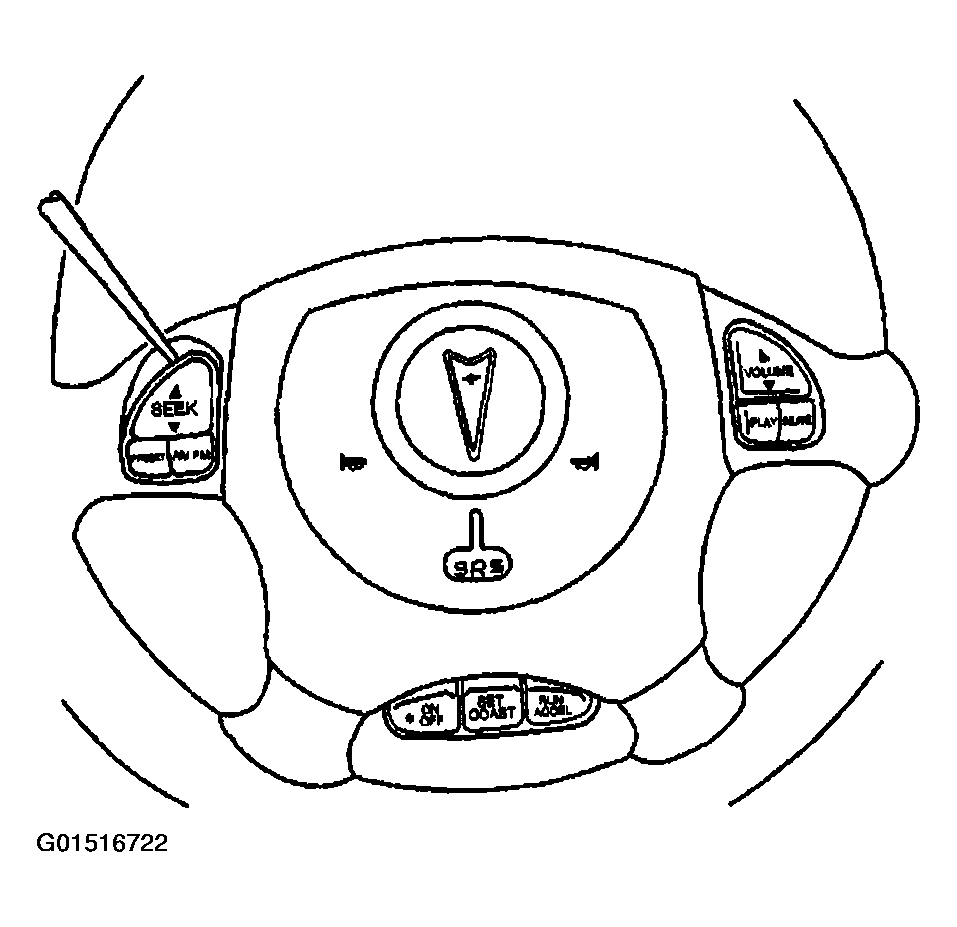

    Fig 1: Removing Steering Wheel Control Switches From Steering Wheel Pad
    G01516722Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the electrical connector from the steering wheel control switches.
  4. Remove the steering wheel control switches from the steering wheel.

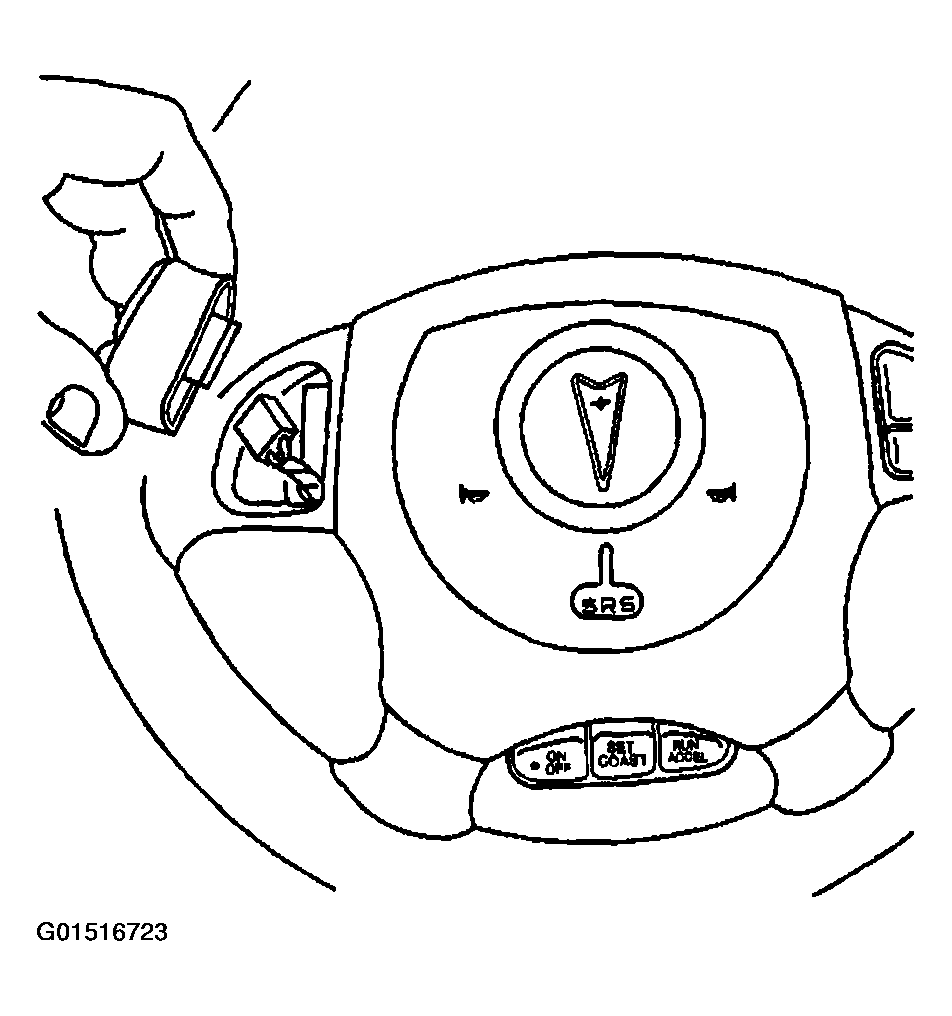

    Fig 2: Disconnecting Electrical Connector From Steering Wheel Control Switches
    G01516723Courtesy of GENERAL MOTORS CORP.
