Installation Procedure

  1. Connect the electrical connector to the steering wheel control switch.
  2. Position the steering wheel control switches to the steering wheel pad.

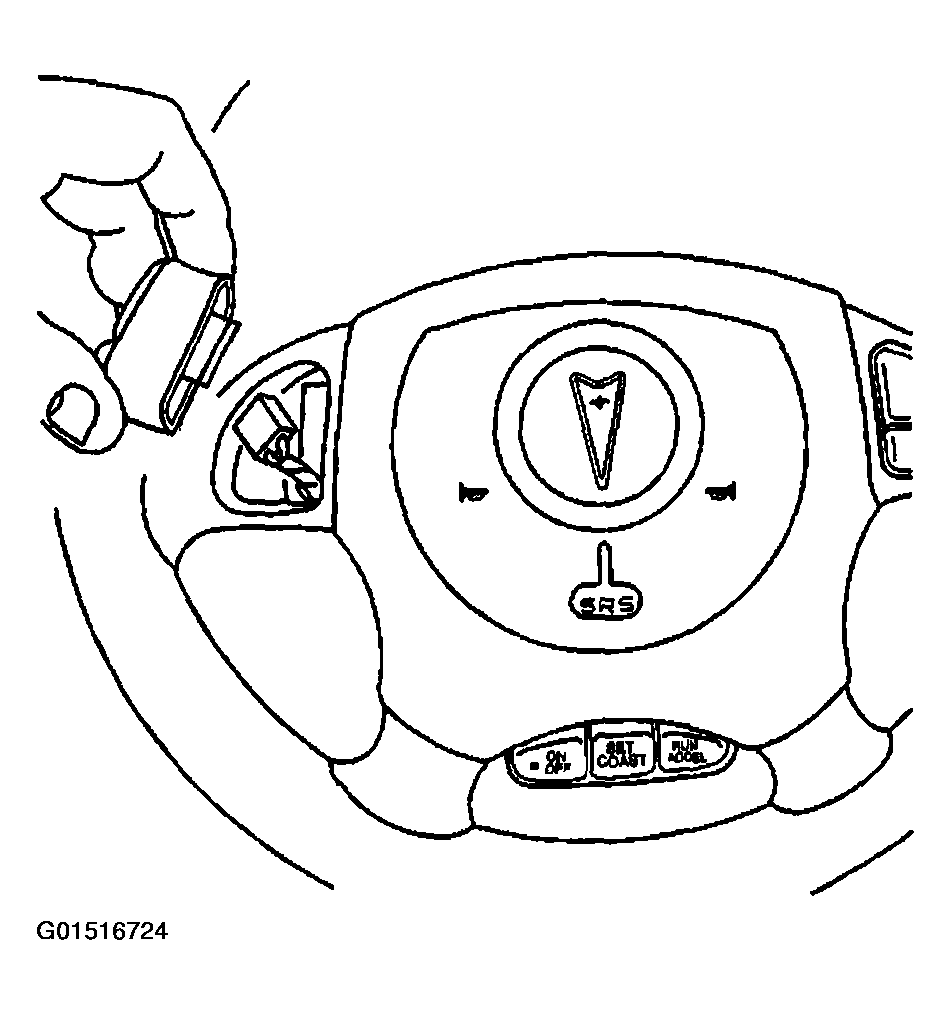

    Fig 1: Connecting Electrical Connector To Steering Wheel Control Switch
    G01516724Courtesy of GENERAL MOTORS CORP.
  3. Install the steering wheel control switches to the steering wheel pad pressing into place until fully seated.
  4. Inspect the operation of the steering wheel control switches.
  5. Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in SIR.

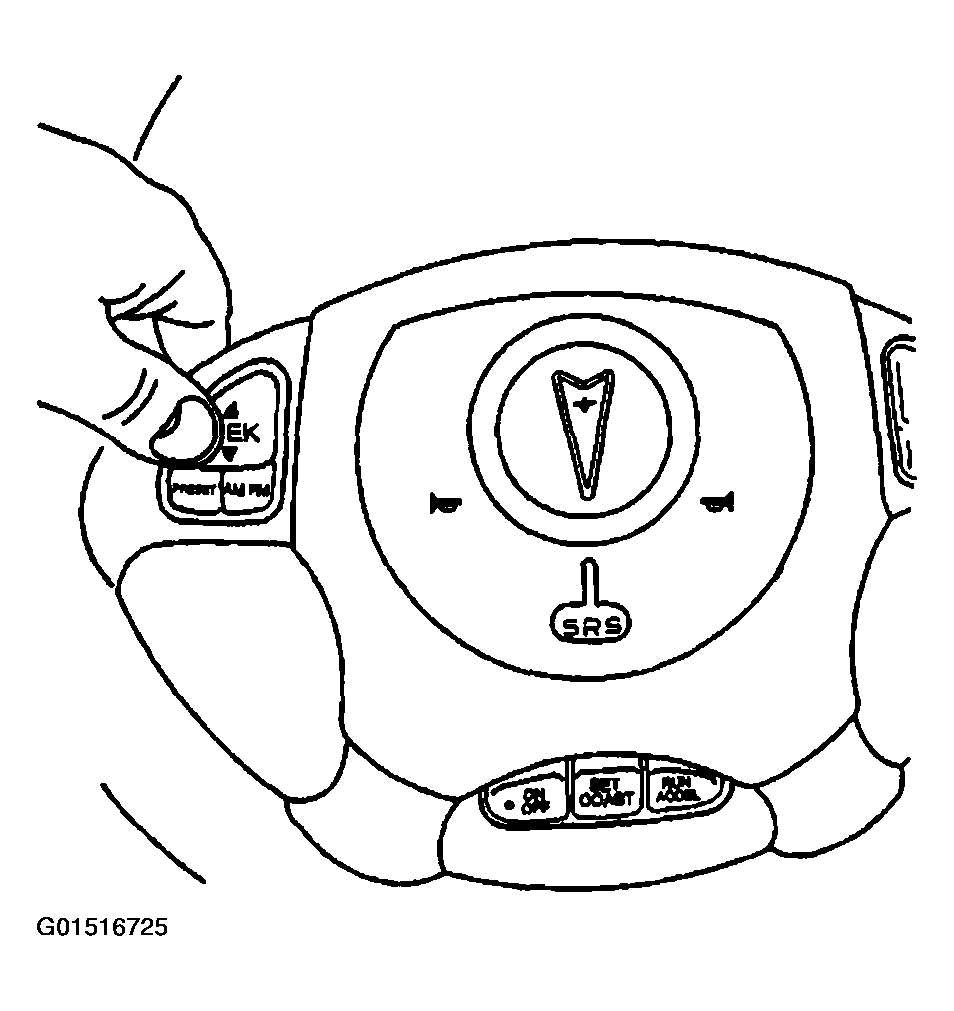

    Fig 2: Installing Steering Wheel Control Switches To Steering Wheel Pad
    G01516725Courtesy of GENERAL MOTORS CORP.
