Removal Procedure

CAUTION: Refer to SIR CAUTION in Cautions and Notices.
  1. Disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in SIR.
  2. Remove the mounting screw (1) from the multifunction switch (2).

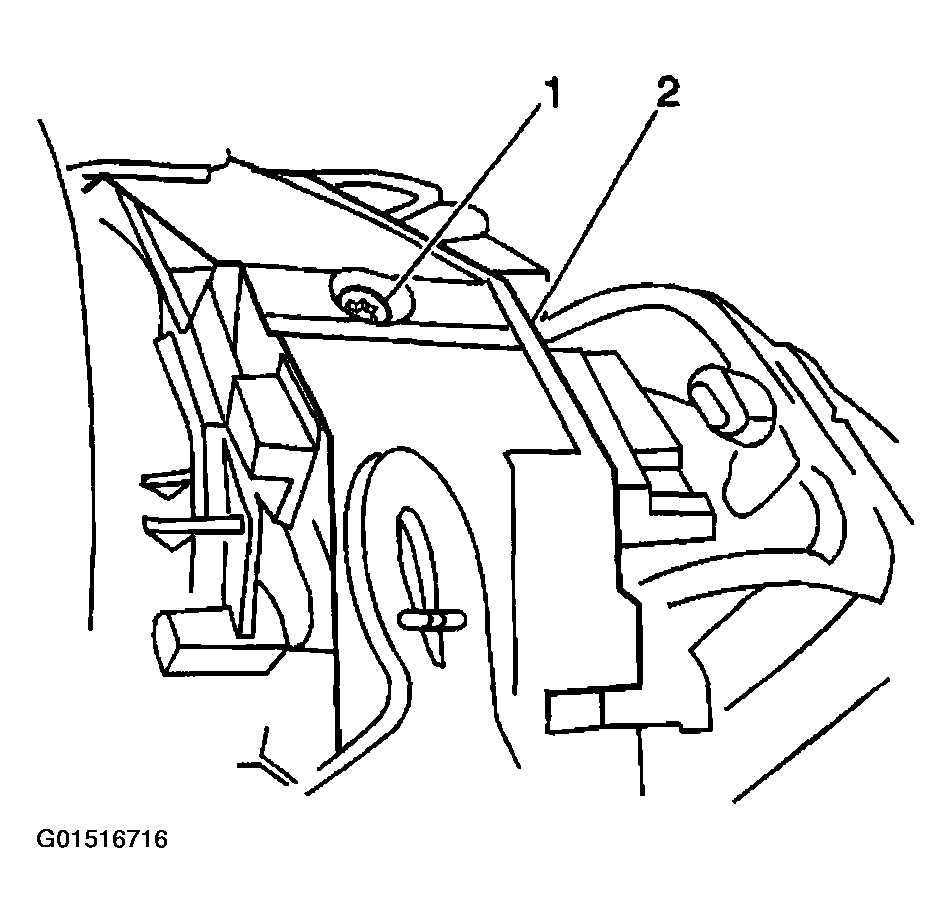

    Fig 1: Removing Mounting Screw From Multifunction Switch
    G01516716Courtesy of GENERAL MOTORS CORP.
  3. Remove the multifunction switch (1) from the column (2).
  4. Disconnect the electrical connectors (3) from the multifunction switch (1).

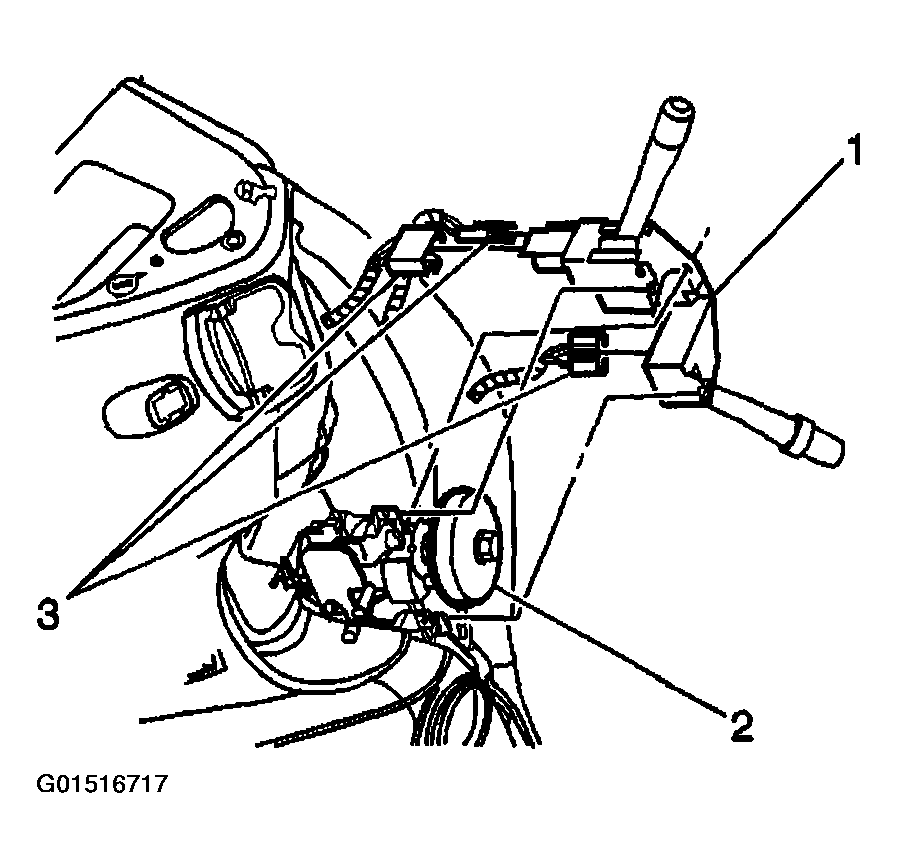

    Fig 2: Removing Multifunction Switch From Column
    G01516717Courtesy of GENERAL MOTORS CORP.
