Installation Procedure

  1. Connect the electrical connectors to the multifunction switch (1).
  2. Position the multifunction switch (1) on the steering column (2) while depressing the spring loaded horn pin.

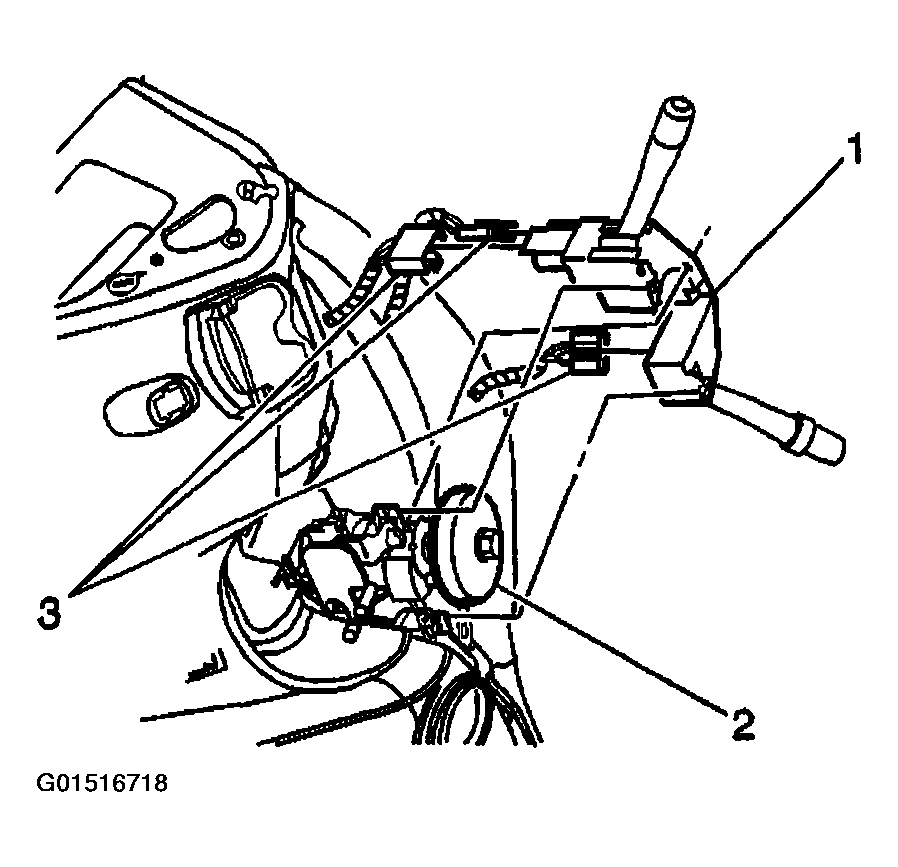

    Fig 1: Installing Multifunction Switch On Steering Column
    G01516718Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the mounting screw (1) to the multifunction switch (2).

    Tighten

    Tighten the screw to 4 N.m (35 lb in).

  4. Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in SIR.
  5. Verify that the multifunction switch works properly.

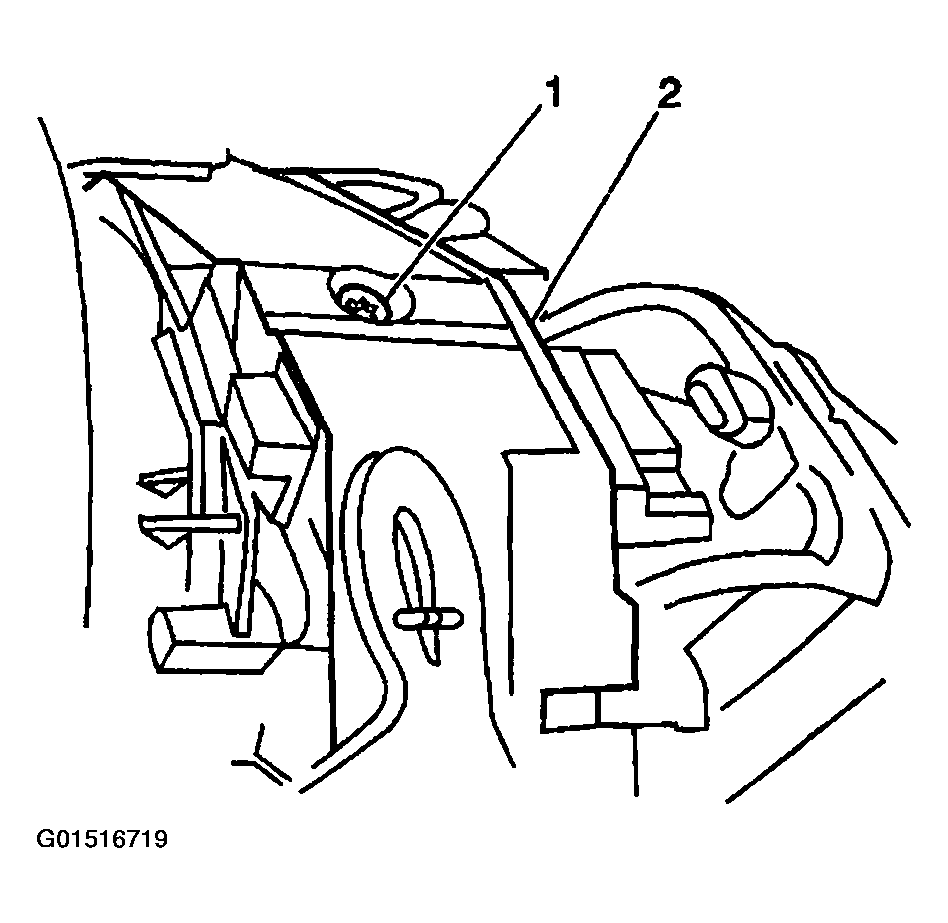

    Fig 2: Installing Mounting Screw To Multifunction Switch
    G01516719Courtesy of GENERAL MOTORS CORP.
