Steering Column Disassembled View
Steering Column Disassembled View

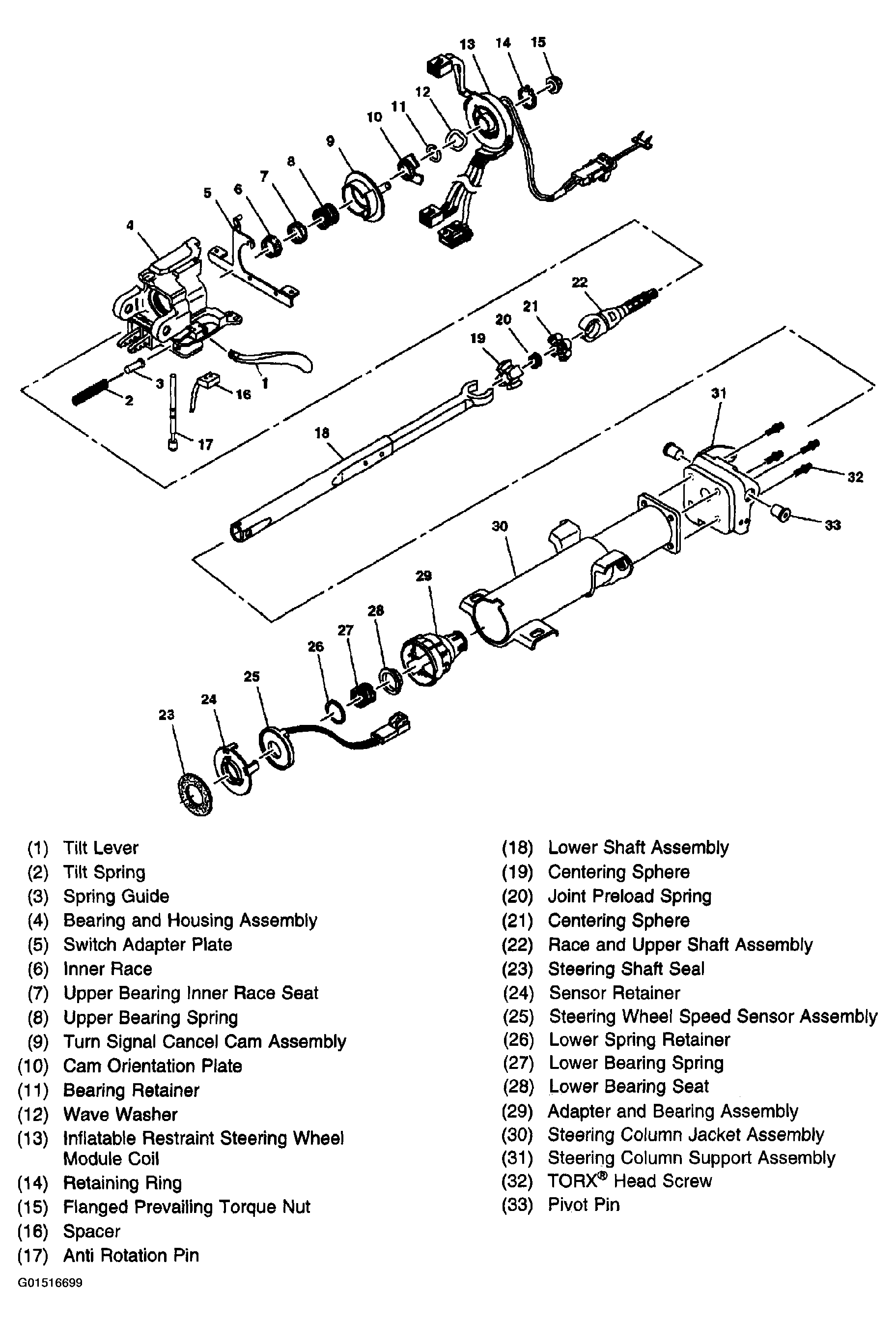

Fig 1: Tilt Steering Column
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
