Home >> Pontiac >> 2003 >> Grand Am SE, 2.2 F, Standard >> Repair and Diagnosis >> Steering >> Power Steering System >> Diagnostic Information and Procedures >> Power Steering System Test Procedure >> Overview

Power Steering System Test Procedure: Overview

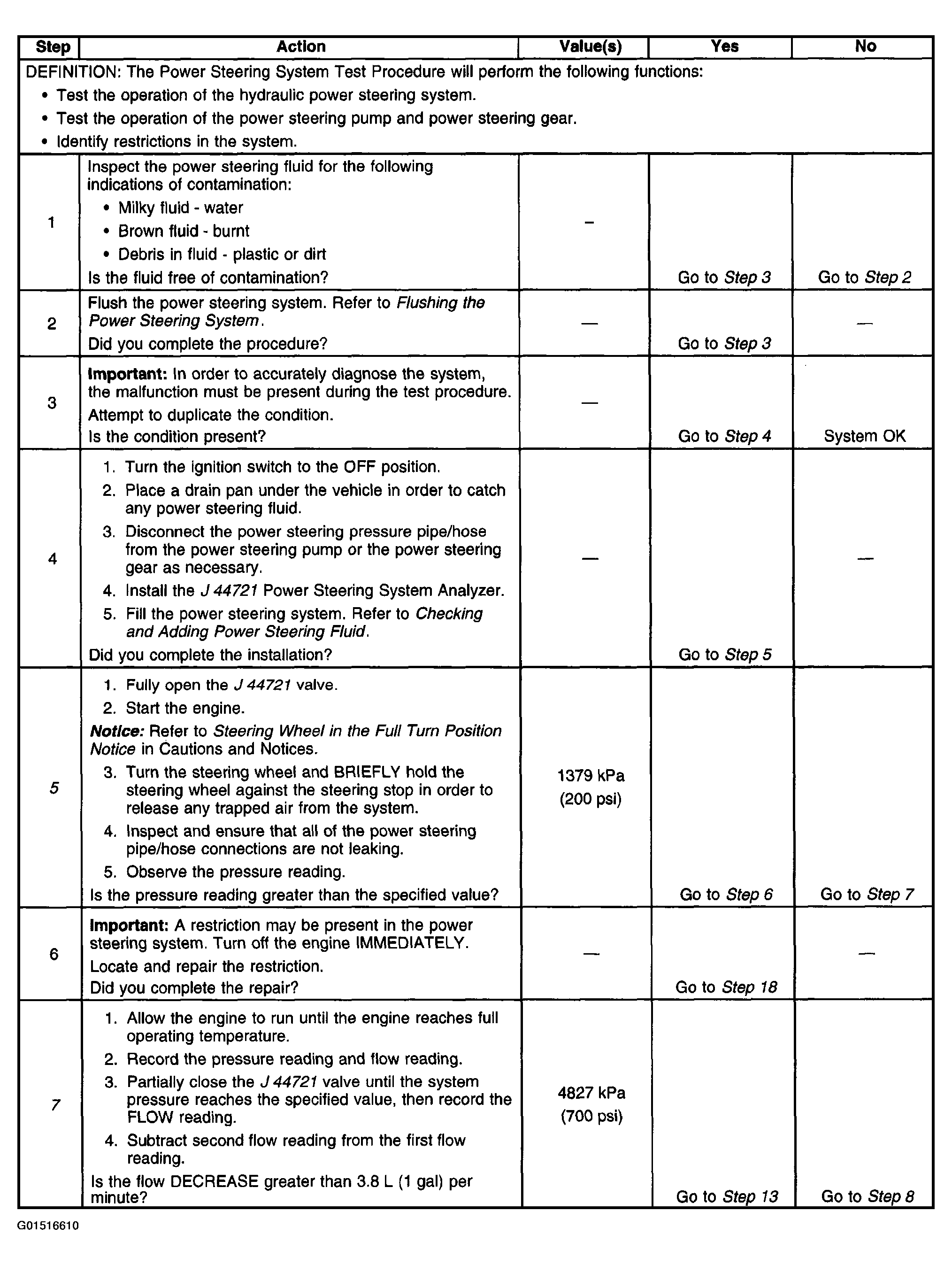

Fig 1: Power Steering System Test Procedure (1 Of 3)
G01516610Courtesy of GENERAL MOTORS CORP.

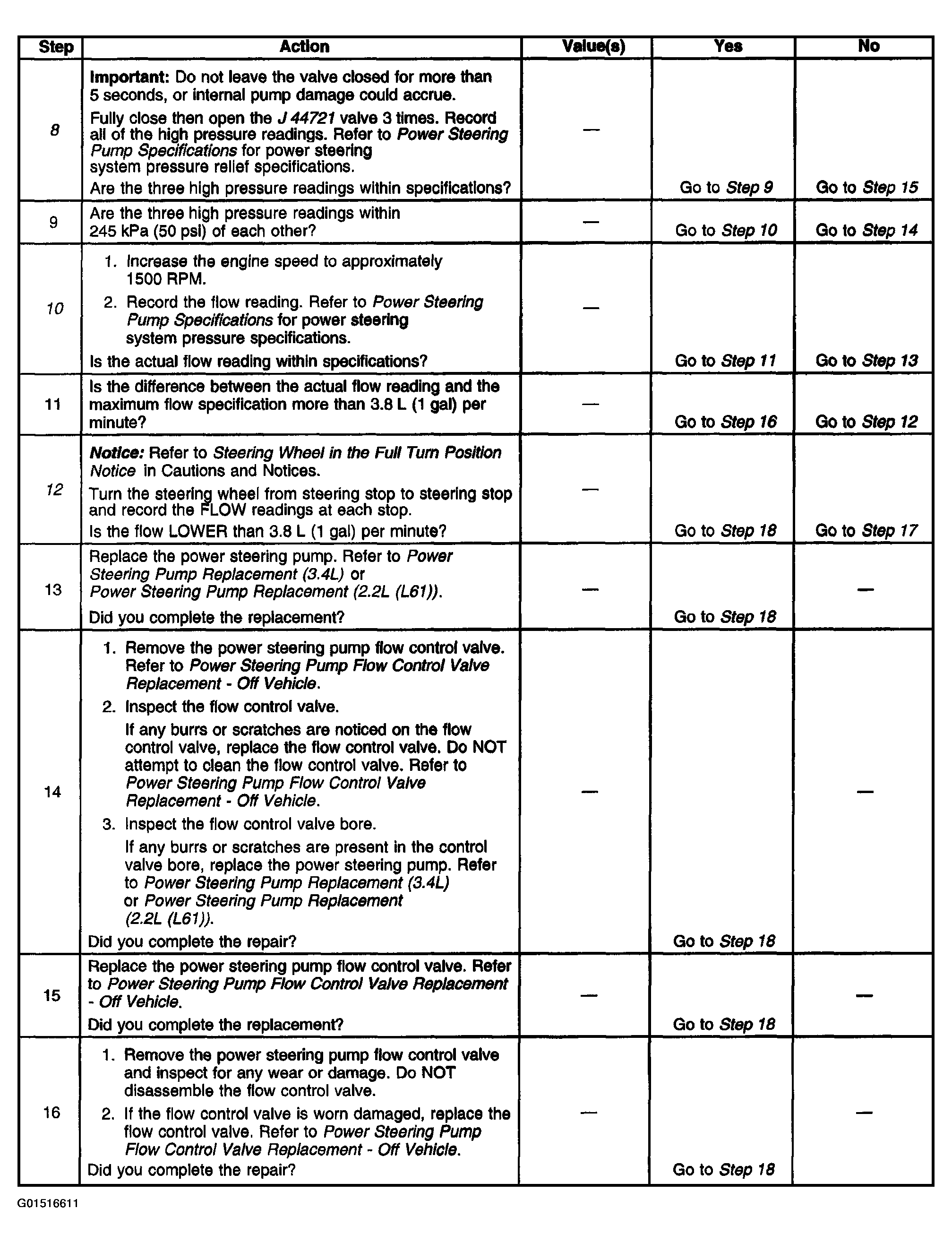

Fig 2: Power Steering System Test Procedure (2 Of 3)
G01516611Courtesy of GENERAL MOTORS CORP.

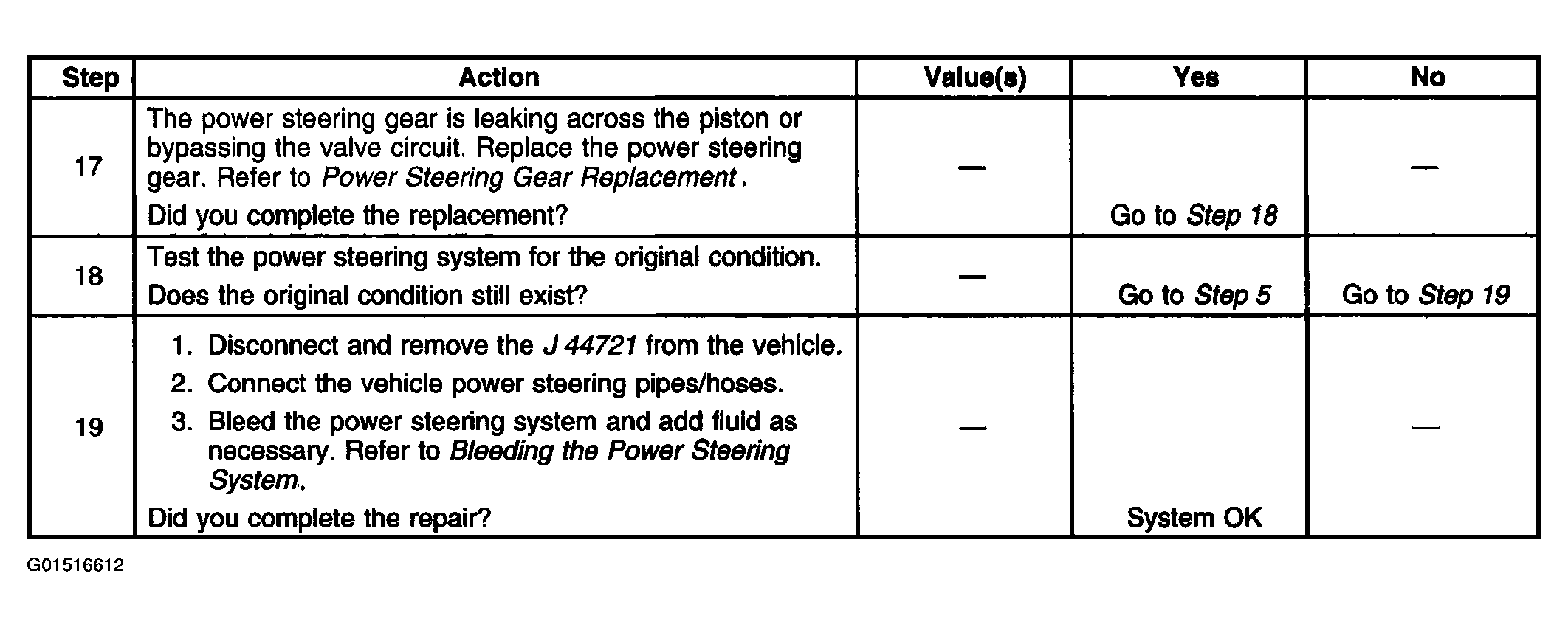

Fig 3: Power Steering System Test Procedure (3 Of 3)
G01516612Courtesy of GENERAL MOTORS CORP.
