Horns Connector End Views
Horns Connector End Views

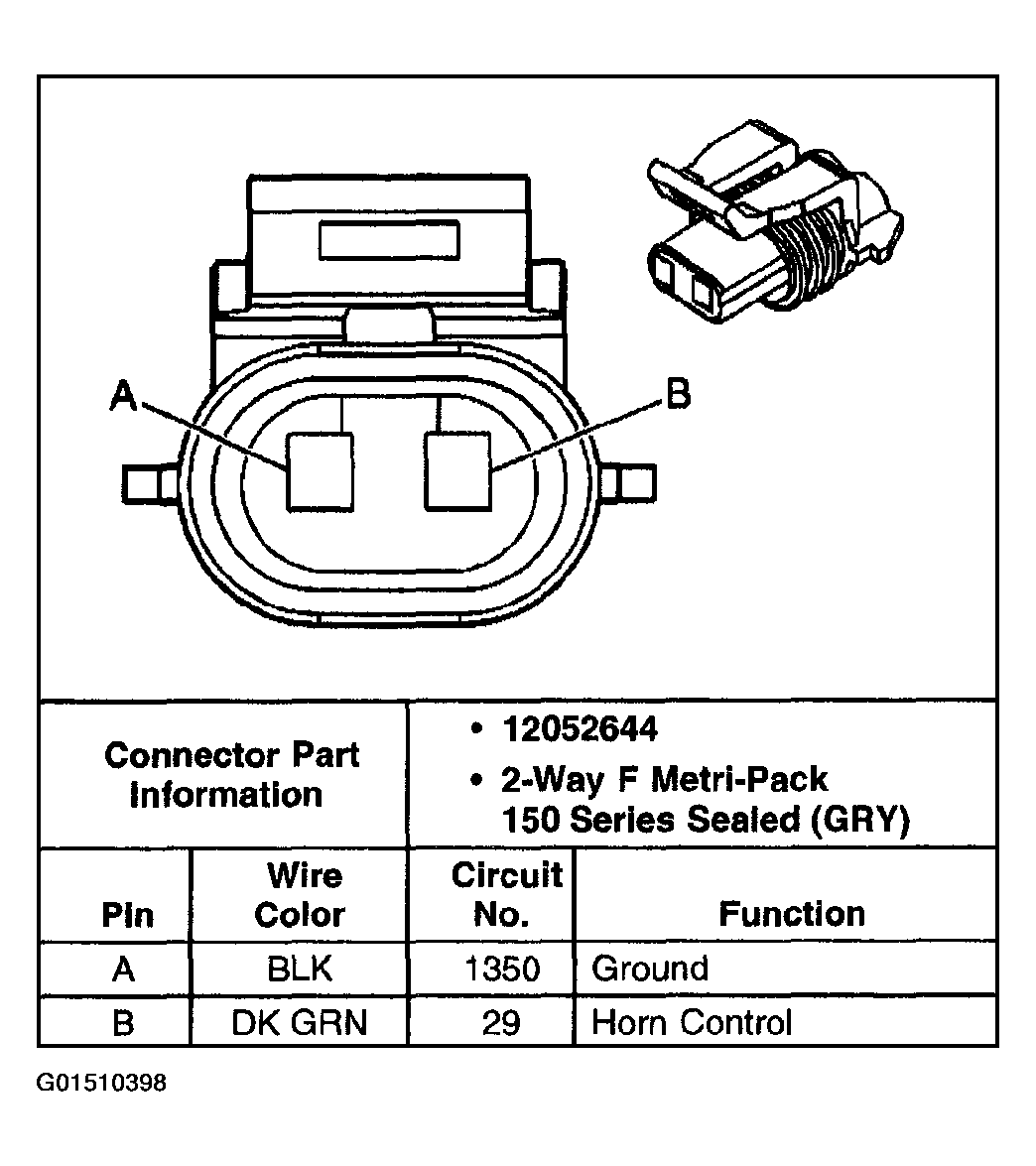

Fig 1: Identifying Horn Assembly Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
