Installation Procedure

  1. Ensure that the set screw will clear the rearview mirror support.
  2. Slide the rearview mirror assembly downward on the support until the mirror assembly bottoms.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the rearview mirror set screw.

    Tighten

    Tighten the rearview mirror set screw to 2 N.m (18 lb in).

  4. Install the rearview mirror reading lamp electrical connector, if applicable.

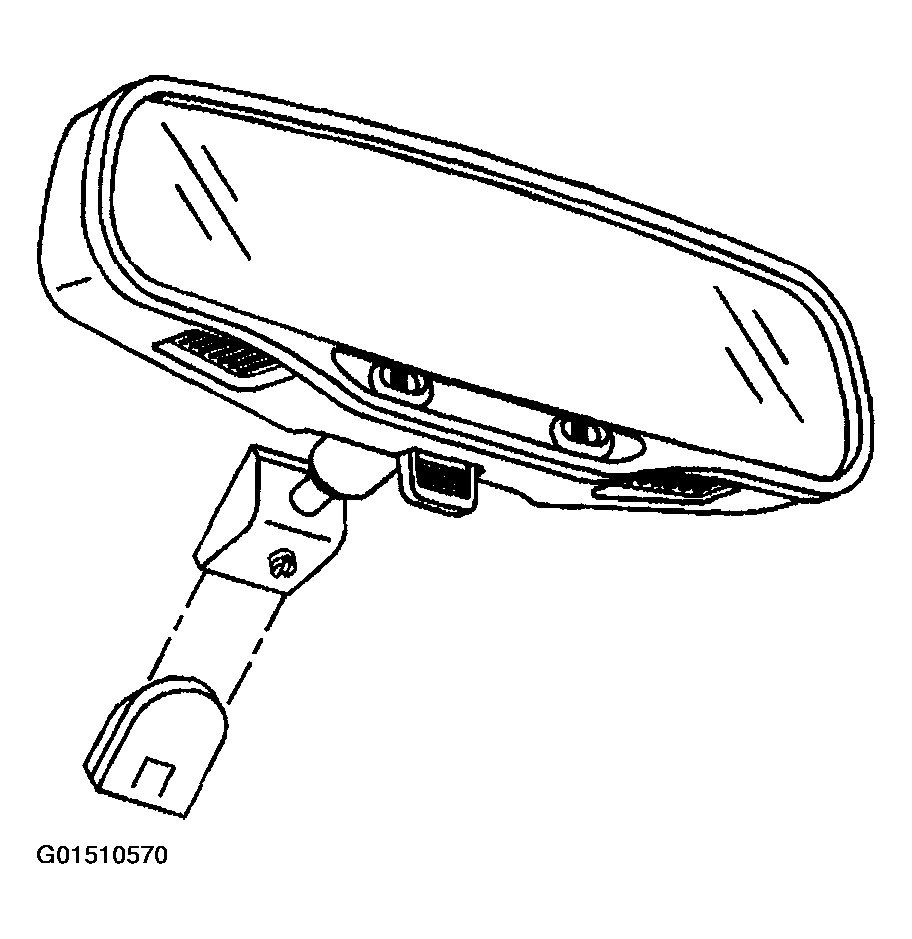

    Fig 1: Installing Rearview Mirror Support
    G01510570Courtesy of GENERAL MOTORS CORP.
