Removal Procedure

Important:  Before cutting out a stationary window, apply a double layer of masking tape around the perimeter of the painted surfaces and inner trim.

1. Remove the rear quarter trim. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER UPPER (COUPE) or TRIM PANEL REPLACEMENT - REAR QUARTER UPPER (SEDAN) in Interior Trim.

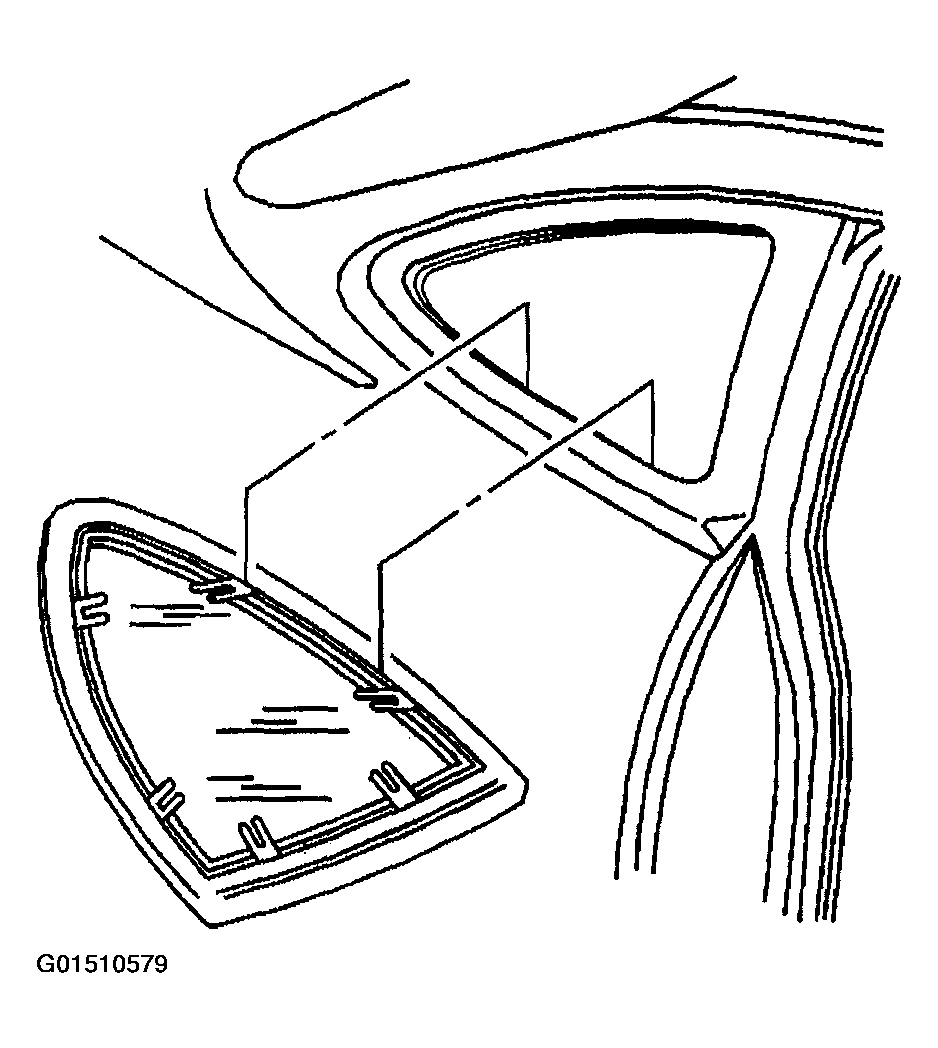

   Fig 1: Removing Quarter Window Trim

   Courtesy of GENERAL MOTORS CORP.
   CAUTION: Refer to GLASS & SHEET METAL HANDLING CAUTION in Cautions and Notices.

   Important:  Keep the cutting edge of the tool against the window. Do this from inside the vehicle in order to protect the outer painted surface.

2. This will allow the urethane adhesive to be separated from the window.
   • Leave a base of urethane on the pinchweld flange.
   • The only suitable lubrication is clear water.
   • Use J 39032  or equivalent in order to remove the window.
   • Remove the quarter modular window from the pinchweld flange.
     Fig 2: Removing Quarter Window By Using J 39032

     Courtesy of GENERAL MOTORS CORP.
