Installation Procedure

  1. Install the lower pull cup (2) to the door trim panel. Drivers side shown, passenger side similar.

    Press the lower pull cup (2) into the door trim panel until retaining clips are engaged.

    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the screws (3) to the lower pull cup (2).

    Tighten

    Tighten the screws to 3 N.m (27 lb in).

  3. Install the finish plug to the door trim panel. Press the finish plug into place until fully seated.

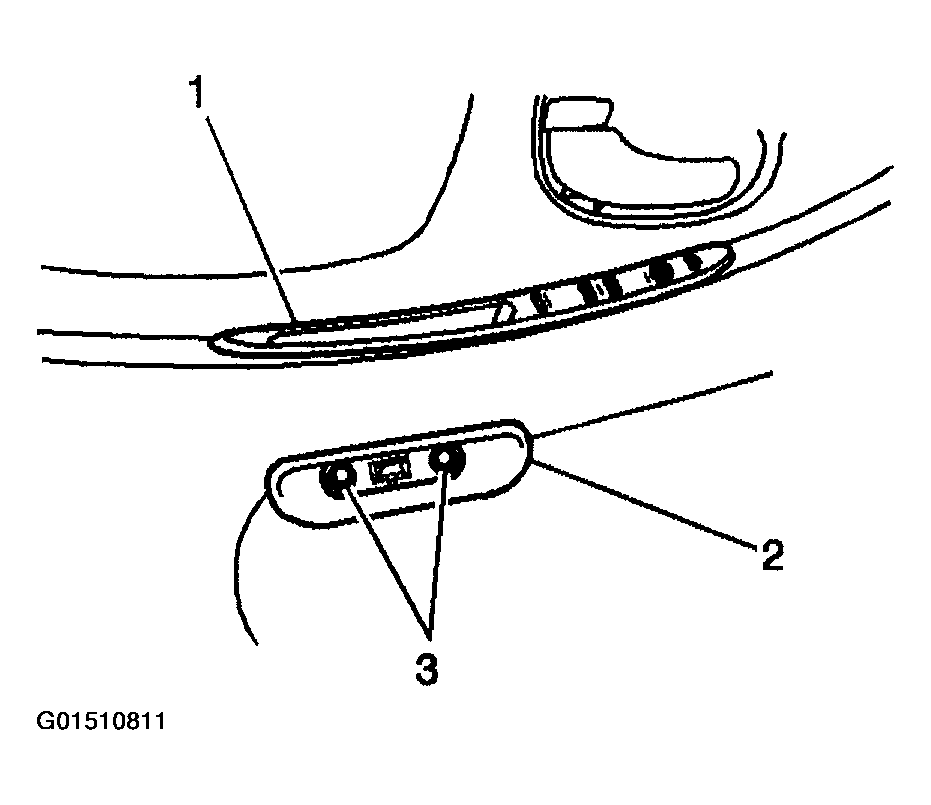

    Fig 1: Installing Lower Pull Cup To Door Trim Panel
    G01510811Courtesy of GENERAL MOTORS CORP.
