Installation Procedure

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the generator (2).

    Tighten

    • Tighten the bolts to 50 N.m (37 lb ft).
    • Tighten the nuts to 30 N.m (22 lb ft).
  2. Install the generator electrical connections.
  3. Install the power steering line clip (3).
  4. Install the drive belt. Refer to DRIVE BELT REPLACEMENT in Engine Mechanical - 3.4L.
  5. Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .

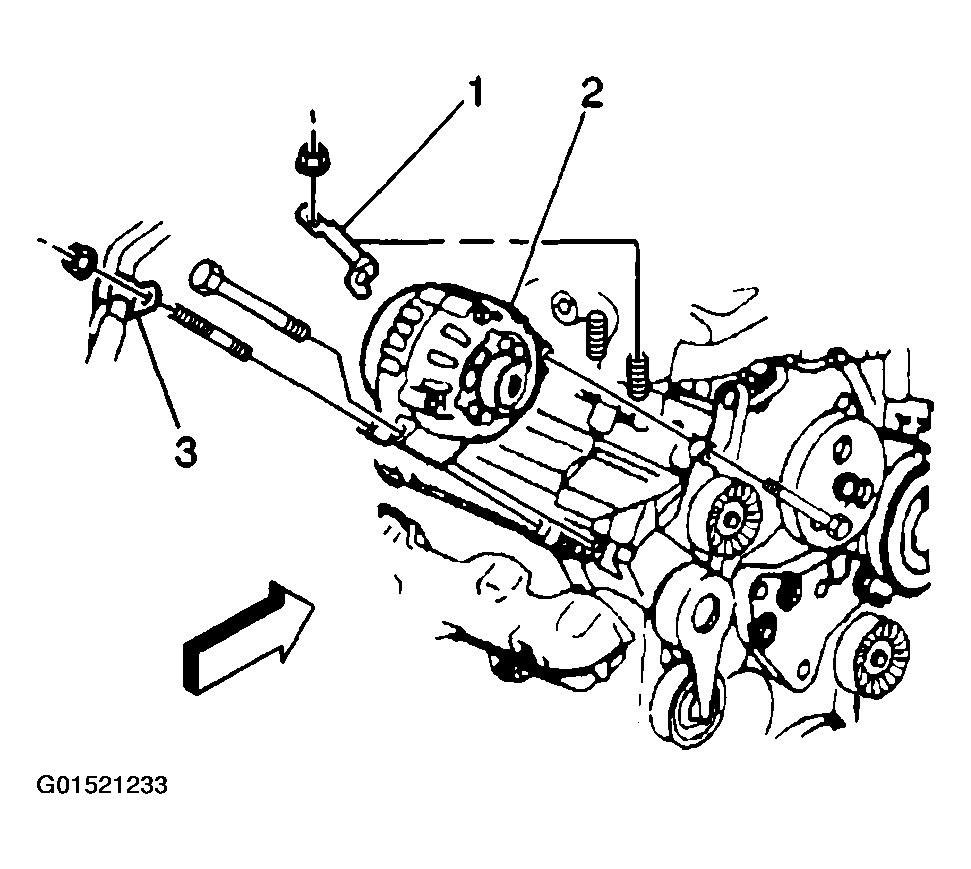

    Fig 1: Generator (3.4L)
    G01521233Courtesy of GENERAL MOTORS CORP.
