Removal Procedure

  1. Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .
  2. Rotate the drive belt tensioner counter clockwise.
  3. Remove the generator. Refer to GENERATOR REPLACEMENT (2.2L (L61))  or GENERATOR REPLACEMENT (3.4L) .

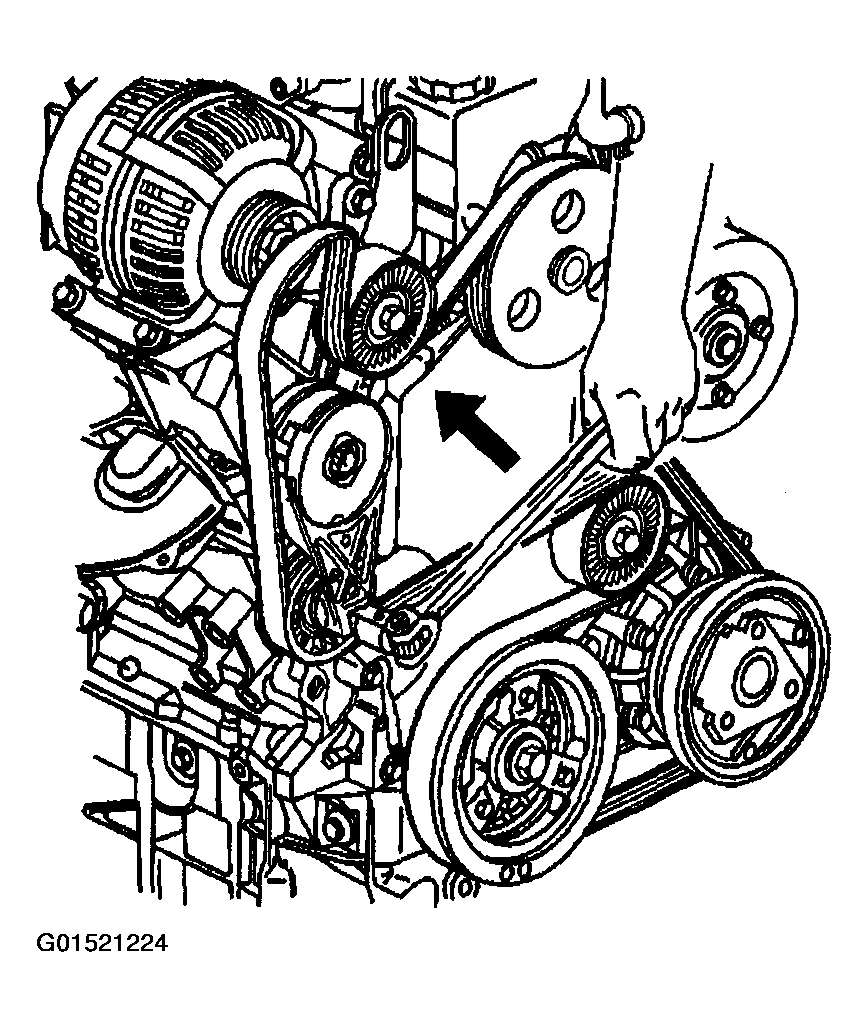

    Fig 1: Rotating Drive Belt Tensioner Counter Clockwise
    G01521224Courtesy of GENERAL MOTORS CORP.
  4. Remove the drive belt tensioner bolt.
  5. Remove the drive belt tensioner.
  6. Remove the drive belt idler pulley bolt.
  7. Remove the drive belt idler pulley.

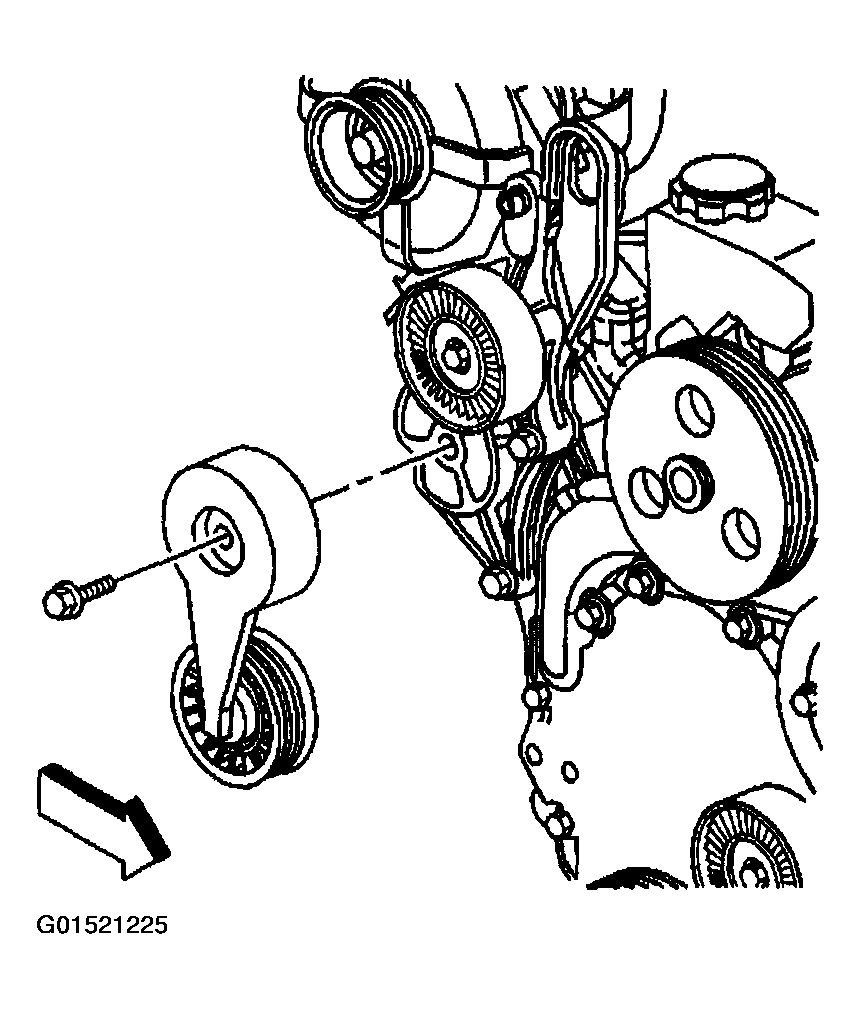

    Fig 2: Drive Belt Tensioner
    G01521225Courtesy of GENERAL MOTORS CORP.
  8. Remove the generator bracket bolts.
  9. Remove the generator bracket.

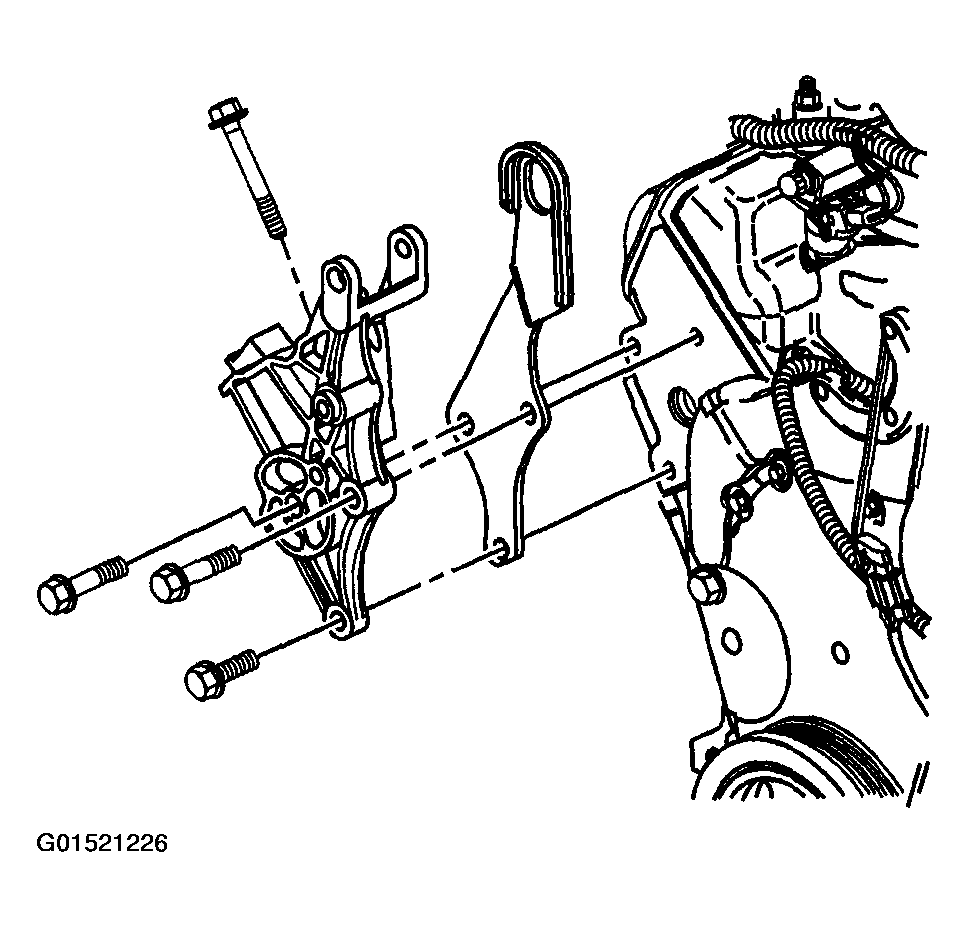

    Fig 3: Generator Bracket
    G01521226Courtesy of GENERAL MOTORS CORP.
