Installation Procedure

  1. Install the generator bracket.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the generator bracket bolts.

    Tighten

    Tighten the bolts in sequence to 50 N.m (37 lb ft)

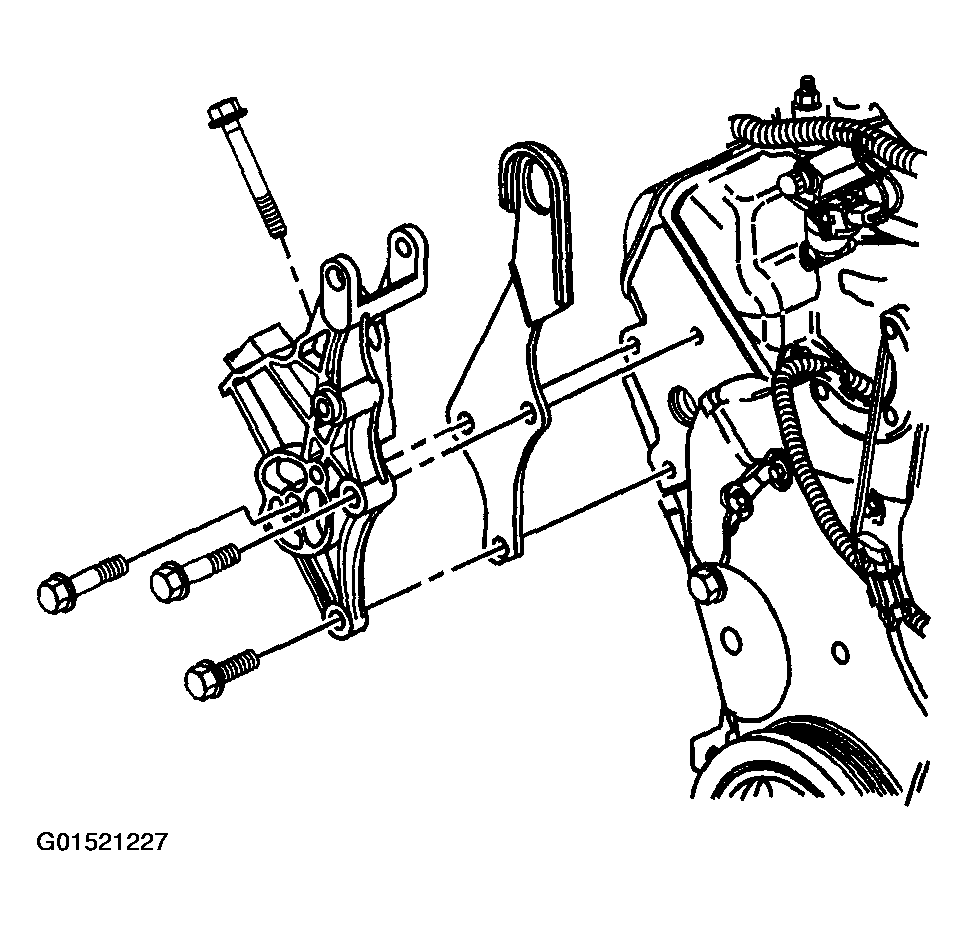

    Fig 1: Generator Bracket & Bolts
    G01521227Courtesy of GENERAL MOTORS CORP.
  3. Install the drive belt tensioner.
  4. Install the drive belt tensioner bolt.

    Tighten

    Tighten the bolt to 50 N.m (37 lb ft)

  5. Install the drive belt idler pulley.
  6. Install the drive belt idler pulley bolt.

    Tighten

    Tighten the bolt to 50 N.m (37 lb ft)

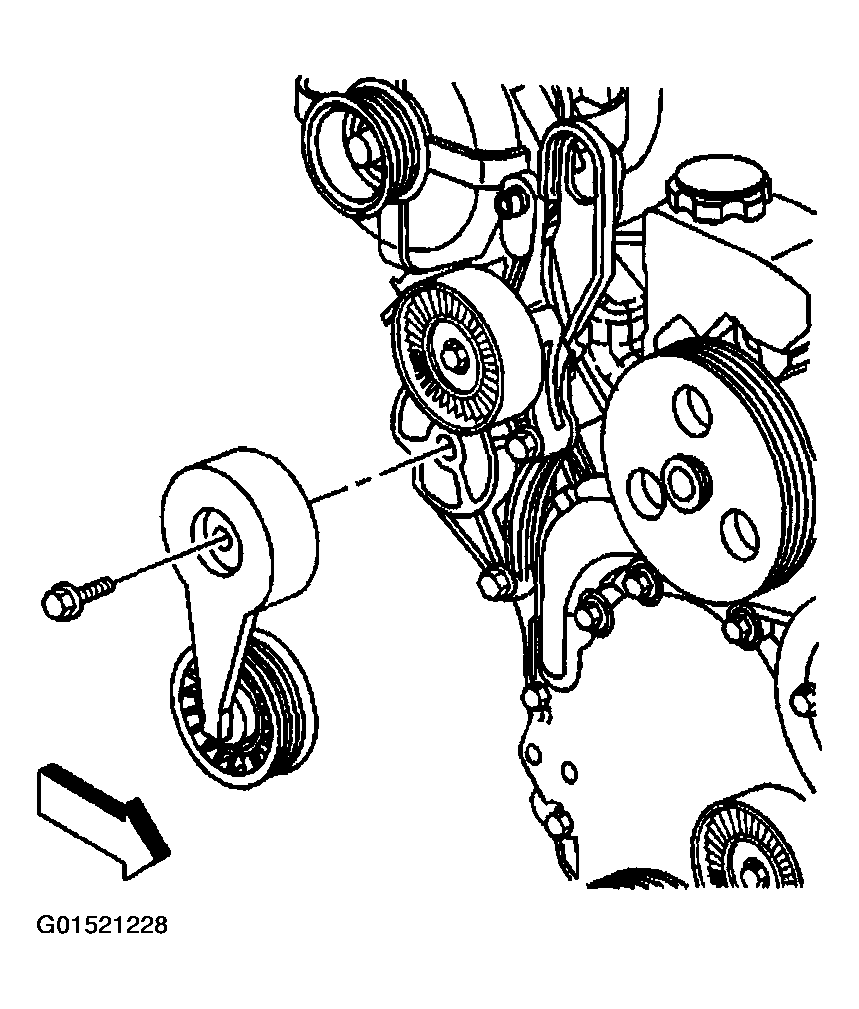

    Fig 2: Drive Belt Tensioner
    G01521228Courtesy of GENERAL MOTORS CORP.
  7. Install the generator. Refer to GENERATOR REPLACEMENT (2.2L (L61))  or GENERATOR REPLACEMENT (3.4L) .
  8. Rotate the drive belt tensioner counter clockwise.
  9. Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .

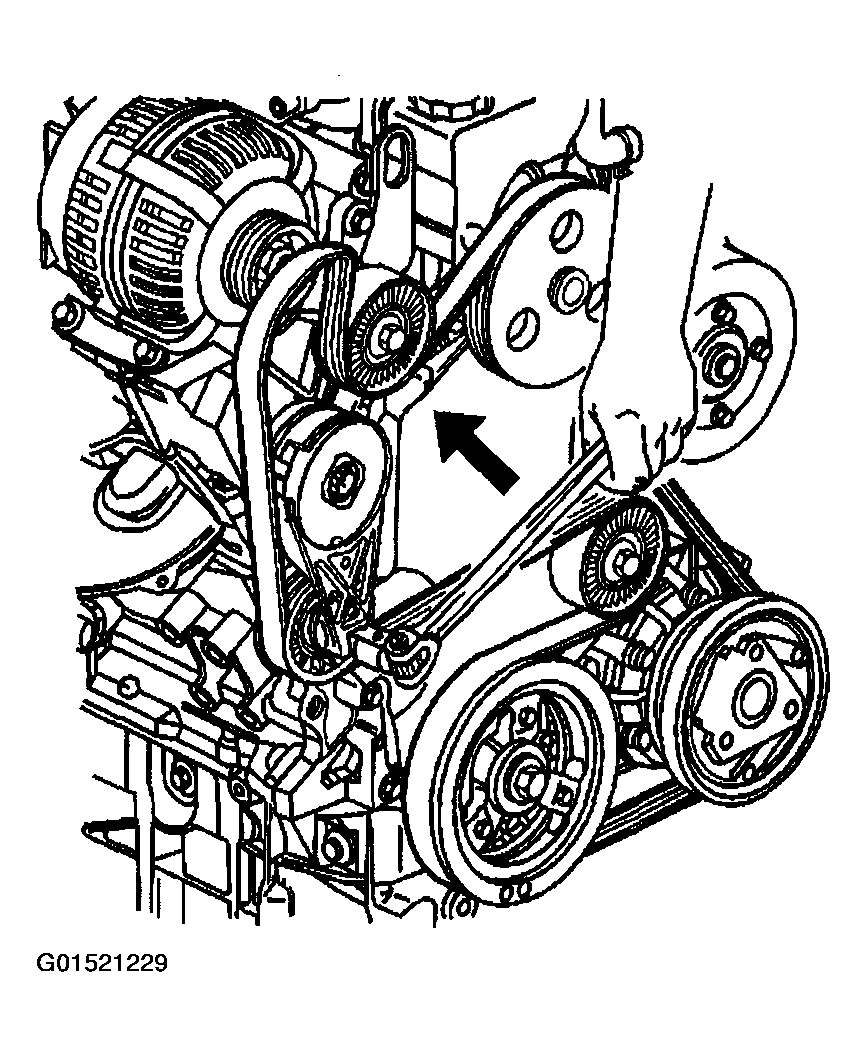

    Fig 3: Rotating Drive Belt Tensioner Counter Clockwise
    G01521229Courtesy of GENERAL MOTORS CORP.
