Removal Procedure

  1. Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .
  2. Disconnect the positive battery cable.
  3. Remove the battery hold down retainer.

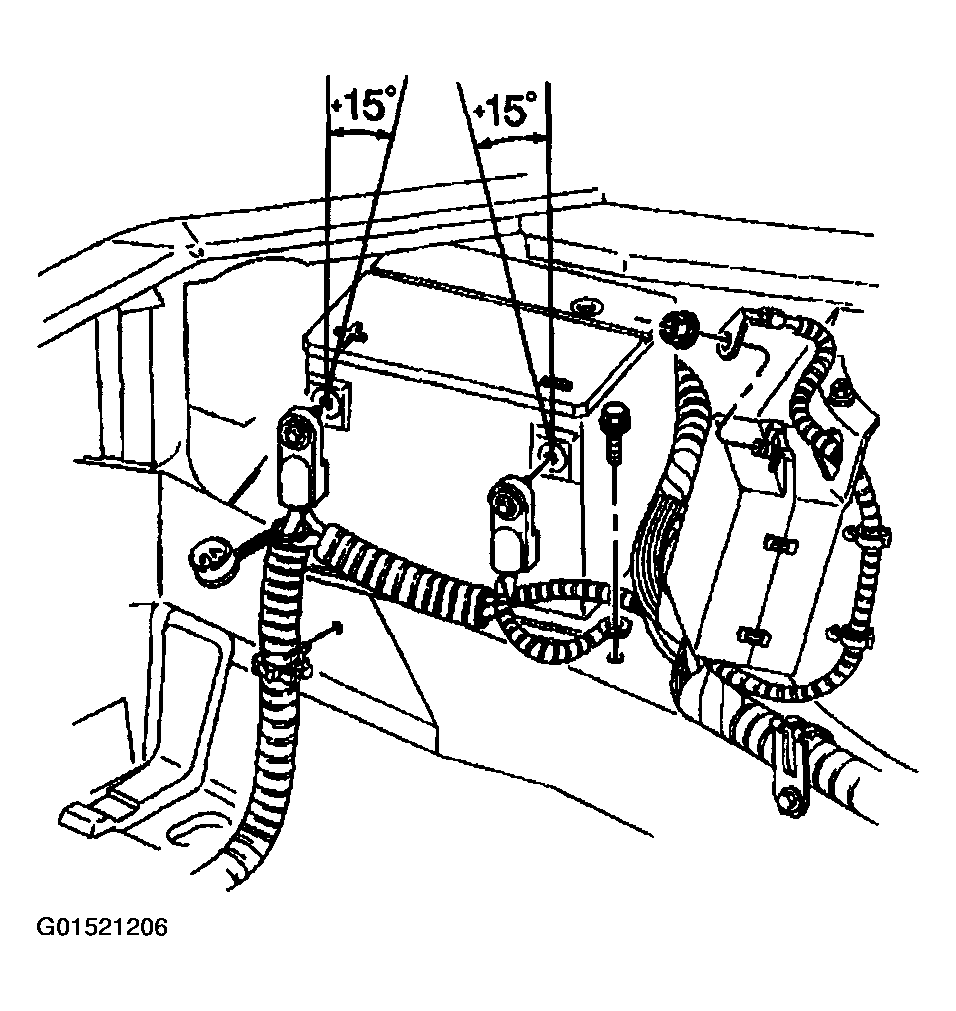

    Fig 1: Disconnecting Negative & Positive Battery Cable
    G01521206Courtesy of GENERAL MOTORS CORP.

    Important:  Do not tip the battery more than 40 degrees during removal.

  4. Remove the battery.

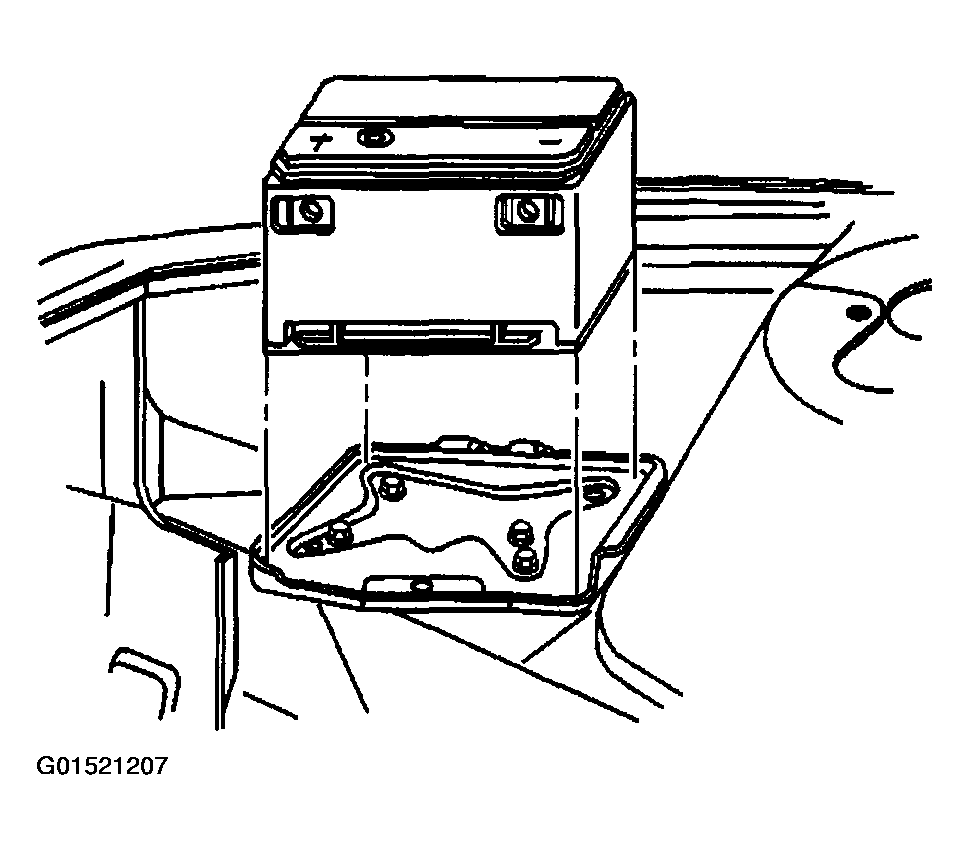

    Fig 2: Battery
    G01521207Courtesy of GENERAL MOTORS CORP.
