Installation Procedure

  1. Install ground cable.
  2. Install nut to retain ground cable to bellhousing stud.
  3. Install front transmission mount. Refer to TRANSMISSION MOUNT in Automatic Transmission.
  4. Install lower closeout panel.
  5. Lower vehicle.
  6. Install negative cable to retainers.
  7. Tape positive cable and ground strap to negative cable.

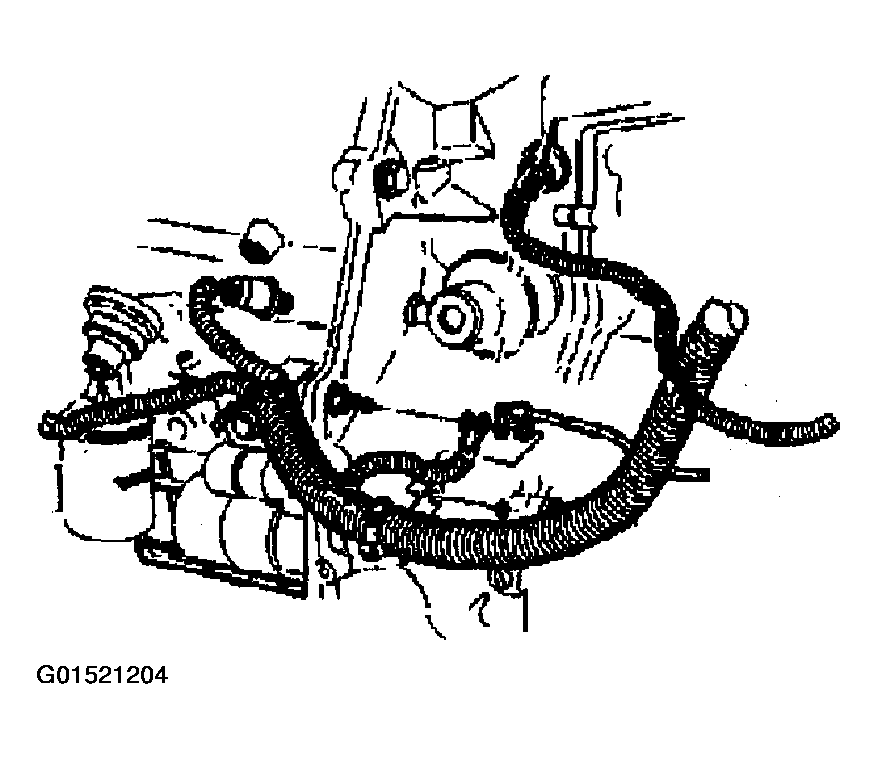

    Fig 1: Ground Cable
    G01521204Courtesy of GENERAL MOTORS CORP.
  8. Install bolt to retain ground cable to core support.
  9. Connect negative ground cable (2). Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .

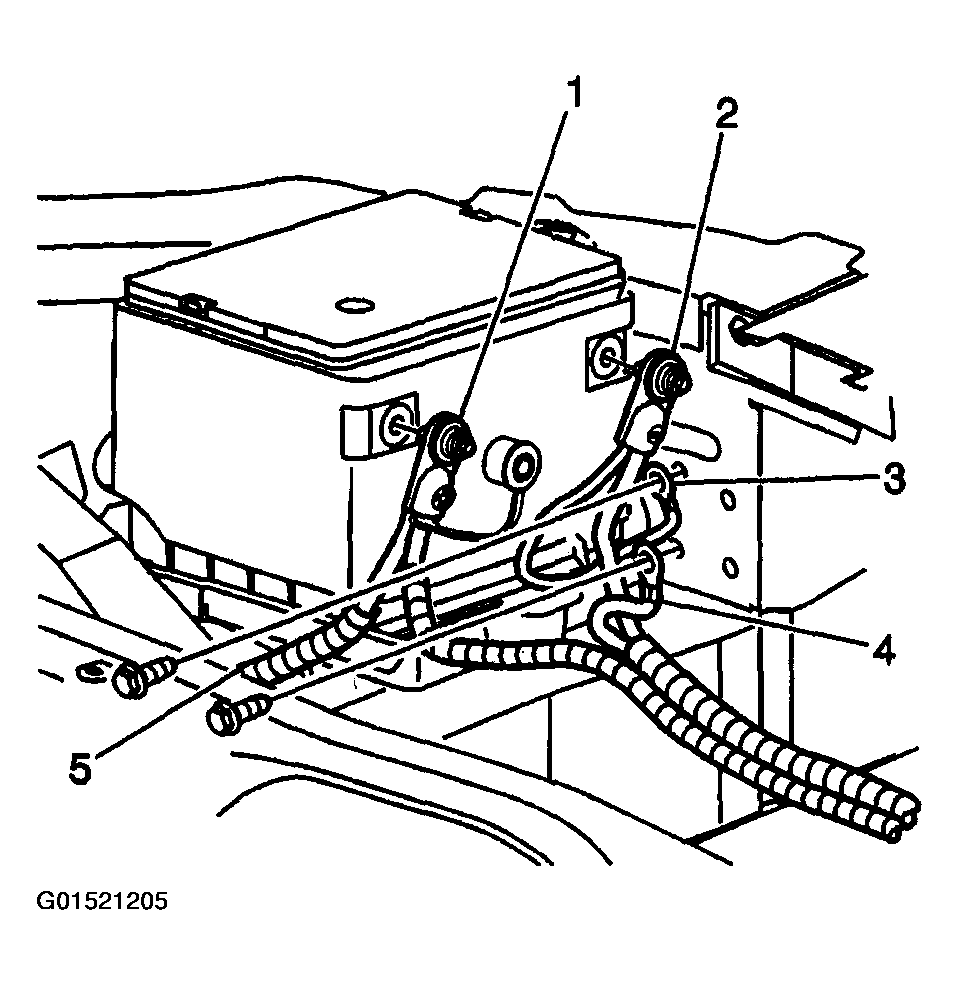

    Fig 2: Installing Bolt To Retain Ground Cable To Core Support
    G01521205Courtesy of GENERAL MOTORS CORP.
