Installation Procedure

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

Important: Clean any existing oxidation from the contact face of the battery terminal and battery cable using a wire brush before installing the battery cable to the battery terminal.

Connect the battery negative cable to the battery.

Tighten

Tighten the bolts to 15 N.m (11 lb ft)

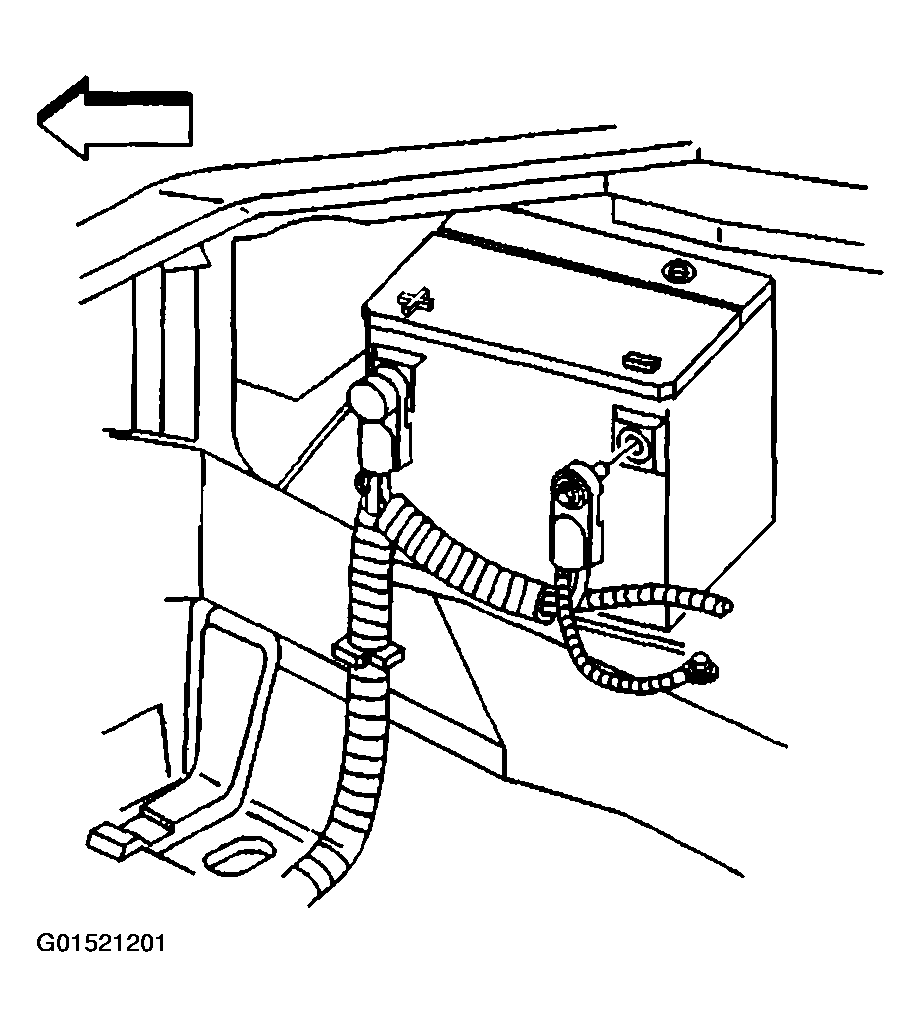

Fig 1: Connecting Battery Negative Cable To Battery

Courtesy of GENERAL MOTORS CORP.
