Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Audio Amplifier | Under right side of rear package shelf. |
| A/T Shift Lock Control Solenoid | On floor shifter assembly. |
| Blower Motor Control Processor | Mounted on right front of blower motor. See Figure . |

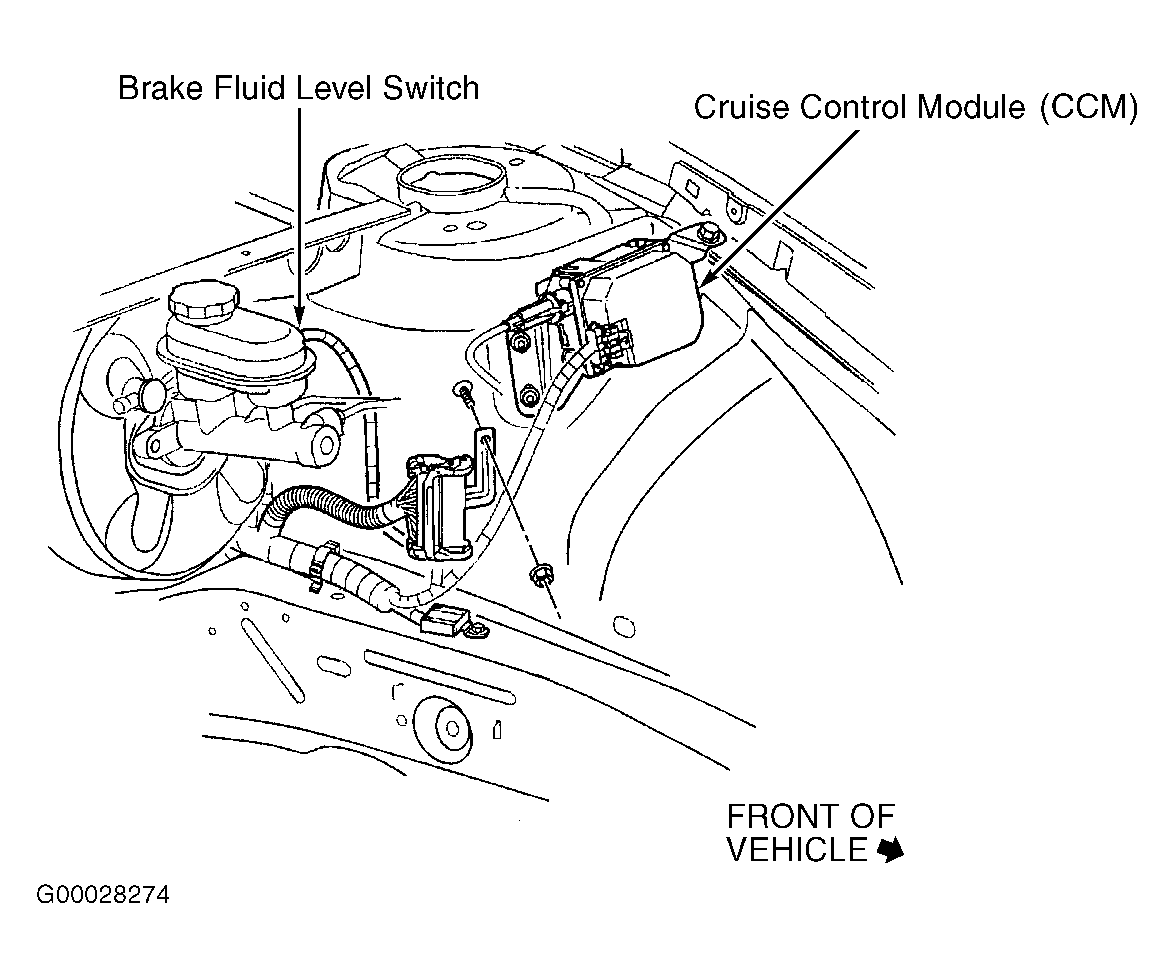

| Cruise Control Module (CCM) | On left side of engine compartment, on strut tower. See Figure . |
| Dash Integration Module | Behind right side of dash, under sound insulator. |
| Electronic Brake Control Module | On left front of engine compartment. |
| Electronic Compass Module | Under left side of rear shelf. |

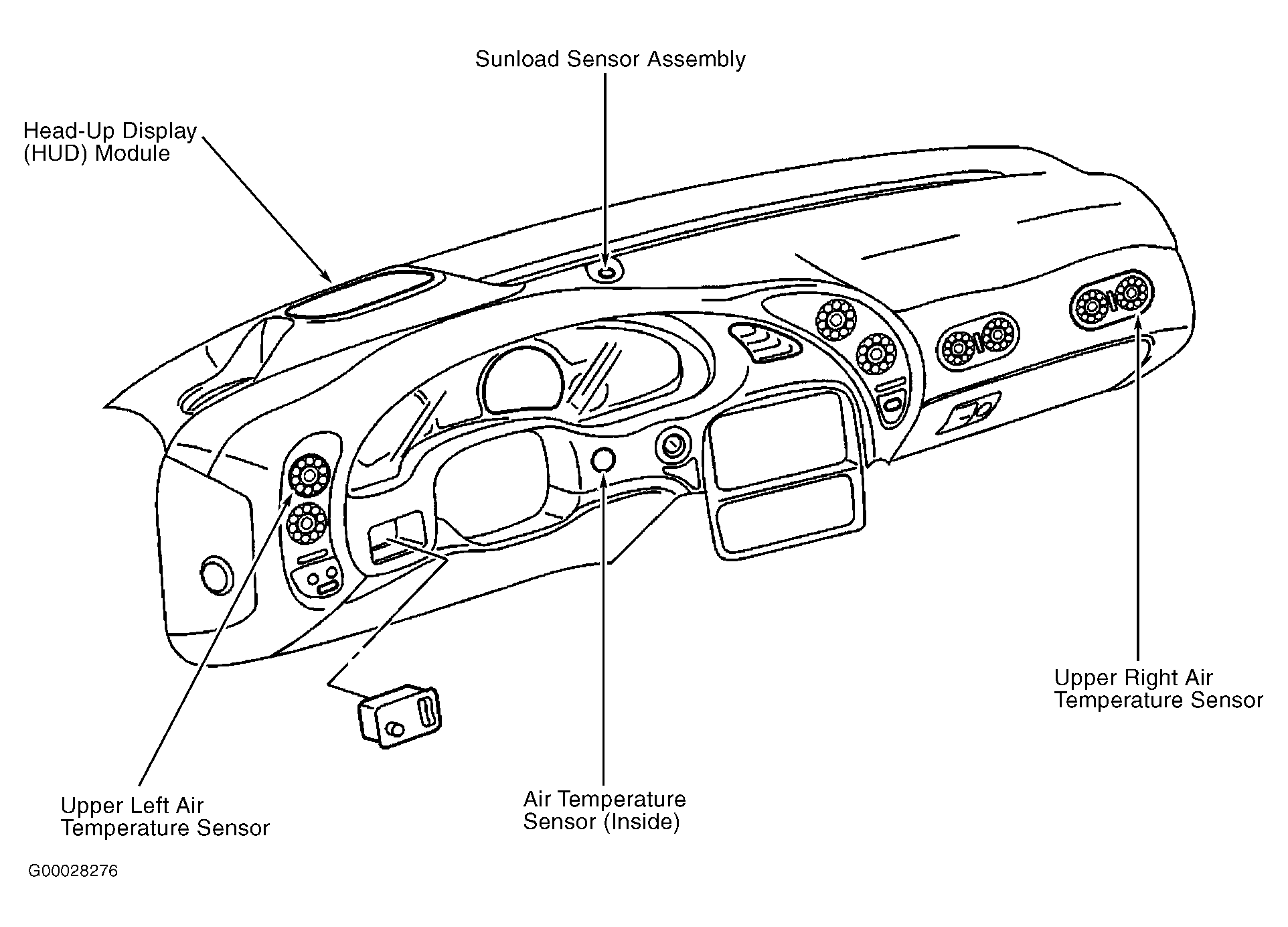

| Head-Up Display (HUD) Module | On top left side of dash. See Figure . |

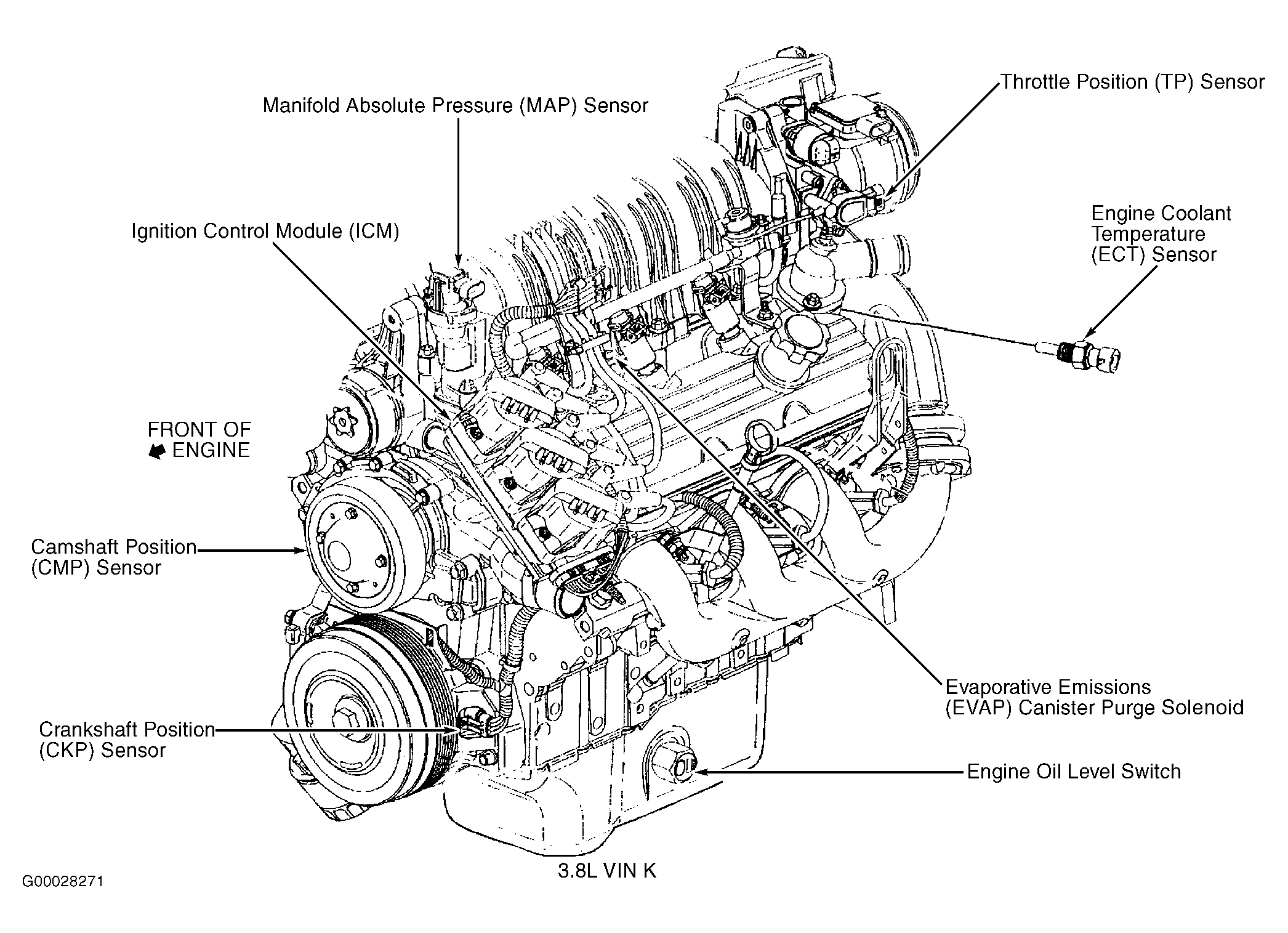

| Ignition Control Module (ICM) (3.8L VIN K) | On top left front of engine. See Figure . |

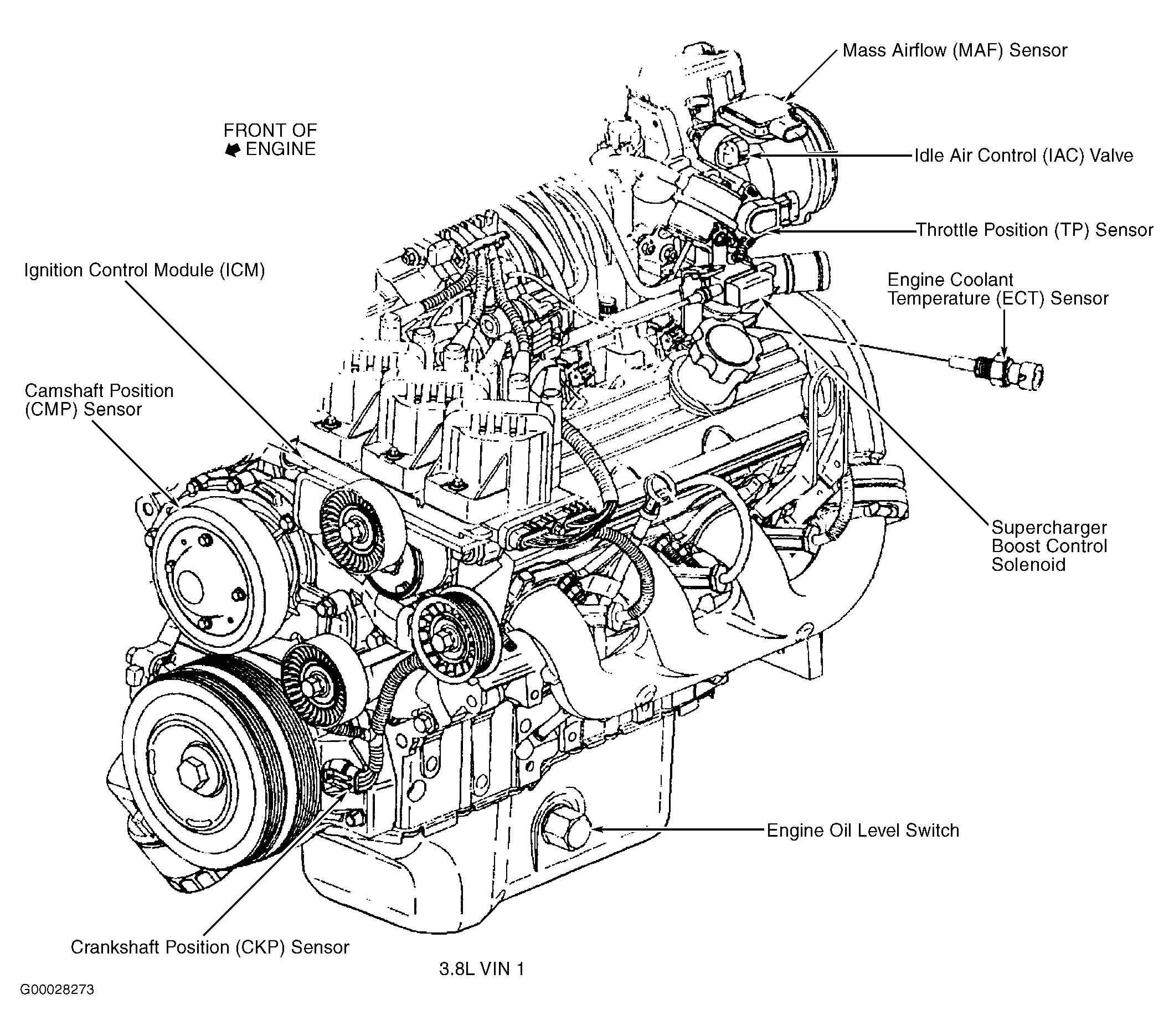

| Ignition Control Module (ICM) (3.8L VIN 1) | On top left front of engine. See Figure . |
| Inflatable Restraint Sensing & Diagnostic Module | Under rear of center console, mounted to floorpan. |
| Instrument Panel Integration Module | Behind left side of dash. |
| Memory Seat Module | Under driver's seat. |
| Powertrain Control Module | In air cleaner housing. |
| Radio Antenna Module | On center rear of headliner. |
| Rear Integration Module | Behind upper left rear seat cushion. |
| Remote Control Door Lock Receiver | Under rear package shelf. |
| Sun Roof Module | Rear of glass assembly, above headliner. See Figure . |
| Theft Deterrent Module | On right side of steering column, behind shroud at ignition switch. |
| Turn Signal/Hazard Flasher Module | Behind center of dash, integral to hazard flasher switch. |
| Vehicle Communication Unit | Behind right rear seat back. |
| Vehicle Interface Unit | Behind right rear seat back. |
