Installation Procedure

  1. Install the battery (2) with the positive (+) side down.

    Use one 3V CR2032 battery (or the equivalent).

  2. Close the transmitter case (6, 4).

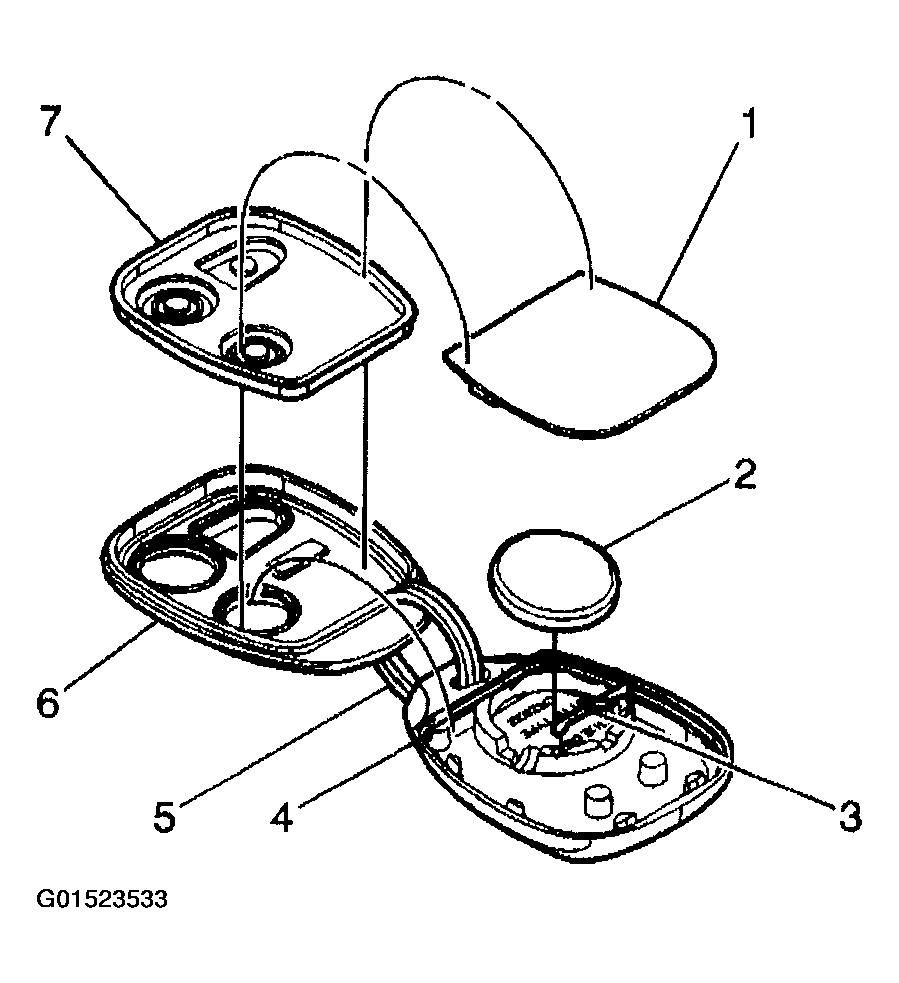

    Fig 1: Installing Battery
    G01523533Courtesy of GENERAL MOTORS CORP.
  3. Ensure that the seal is in position. Align the two halves of the case and snap the two halves together.
  4. Reprogram the transmitter. Refer to TRANSMITTER PROGRAMMING .

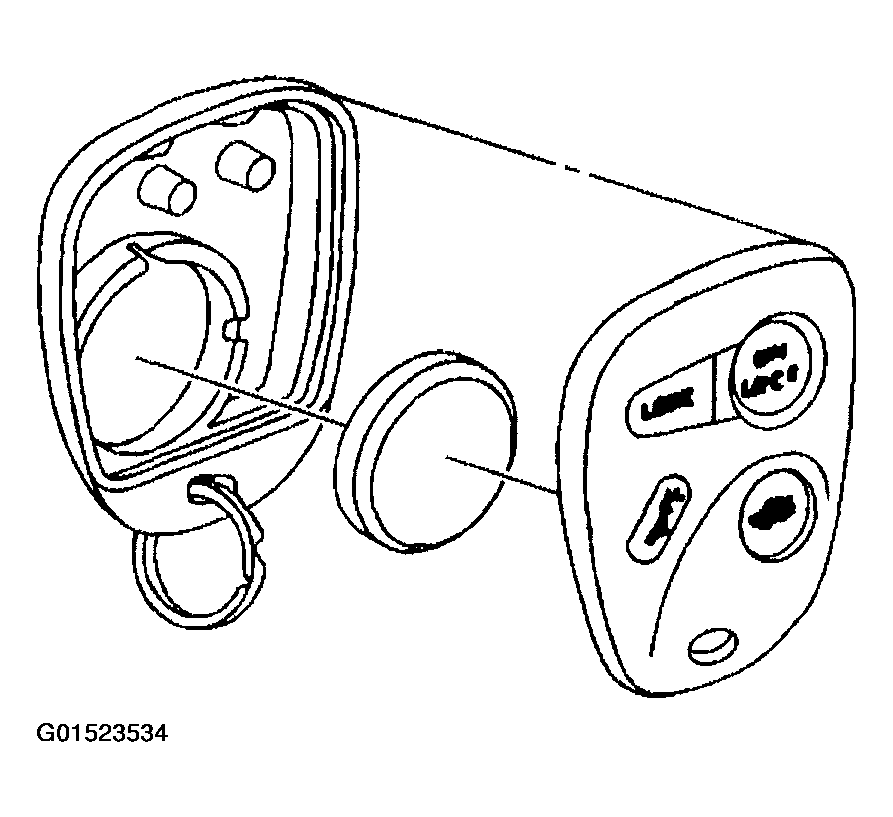

    Fig 2: Snapping Two Halves Of Case Together
    G01523534Courtesy of GENERAL MOTORS CORP.
