Installation Procedure

Snap the remote control door lock receiver module (2) into the slots in the rear compartment.
Connect the electrical connector.

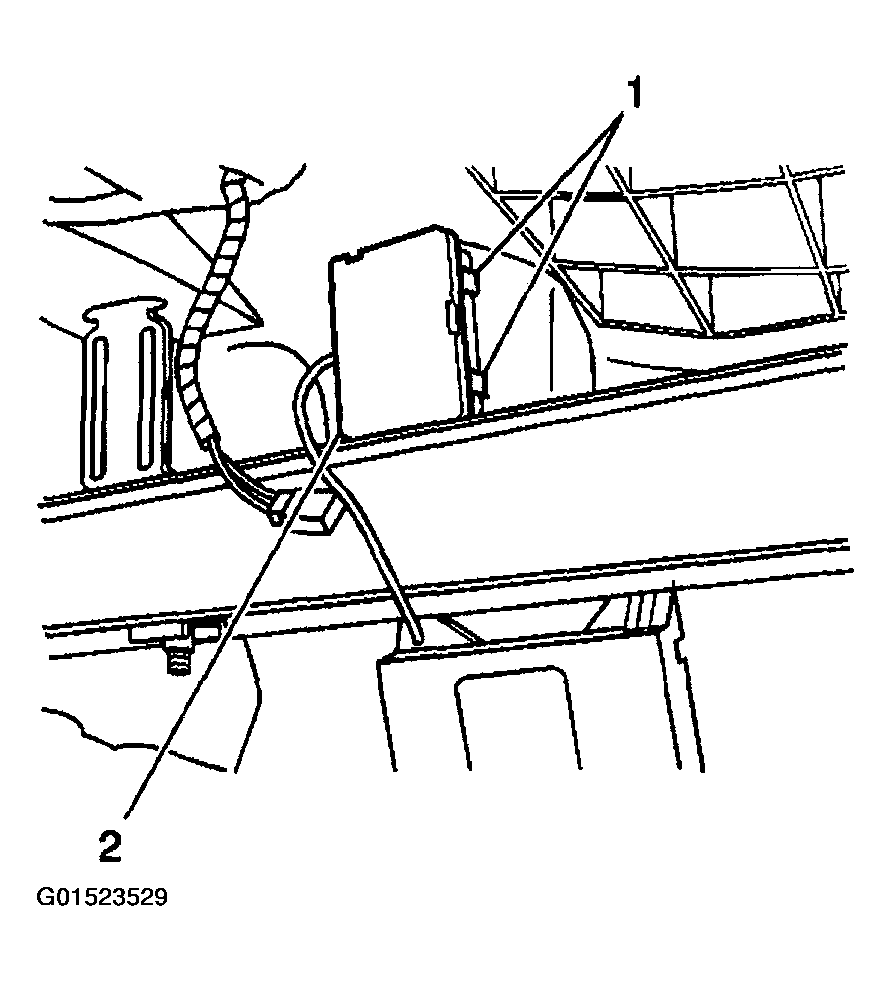

Fig 1: Installing Remote Control Door Lock Receiver Module
Courtesy of GENERAL MOTORS CORP.
Install the rear compartment trim. Refer to COMPARTMENT TRIM PANEL REPLACEMENT - REAR in Body Rear End.
Program the remote control door lock receiver module. Refer to TRANSMITTER PROGRAMMING .

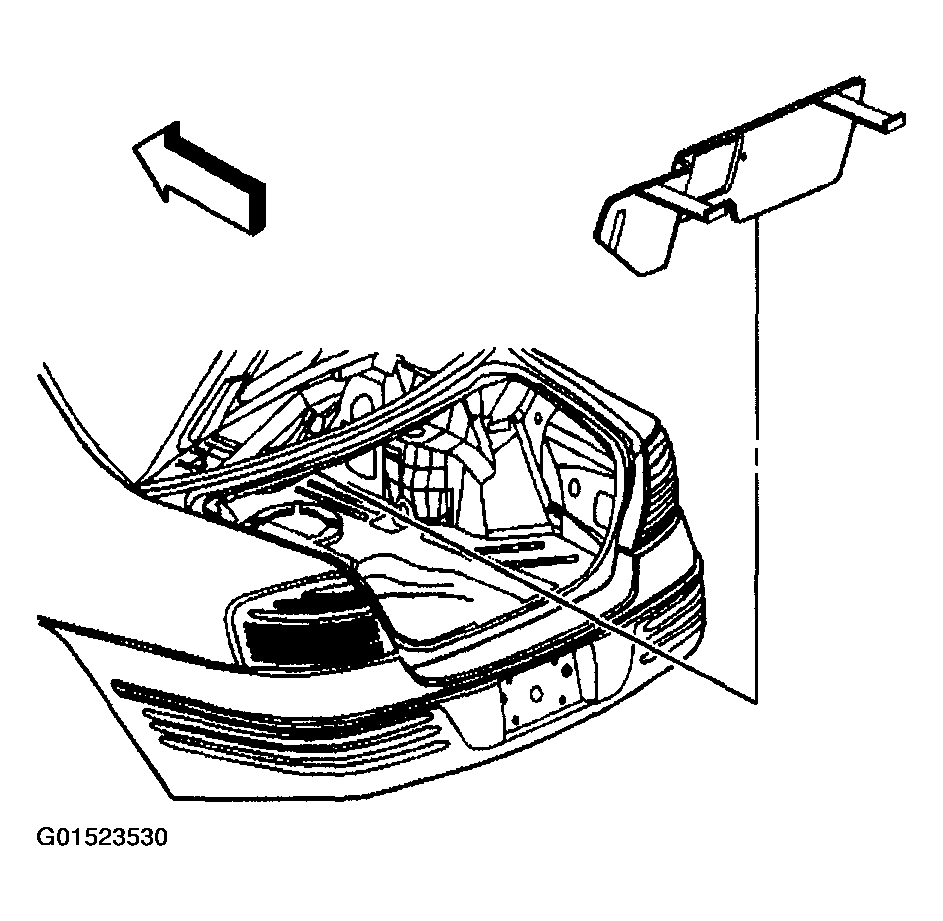

Fig 2: Installing Rear Compartment Trim
Courtesy of GENERAL MOTORS CORP.
