Keyless Entry Connector End Views
Keyless Entry Connector End Views

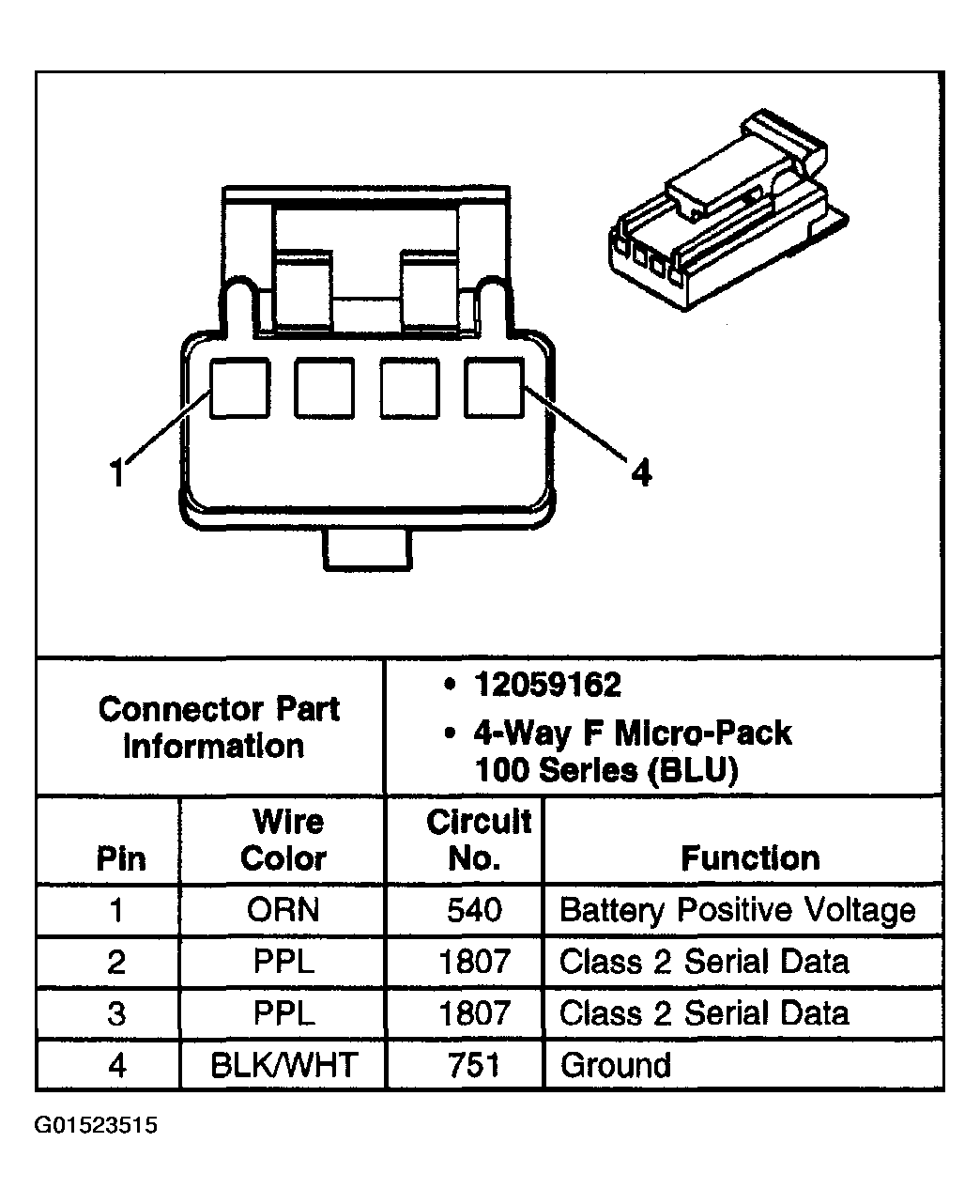

Fig 1: Remote Control Door Lock Receiver (RCDLR) Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
