Installation Procedure

  1. Inspect the O-ring (11). If damaged, replace as necessary.

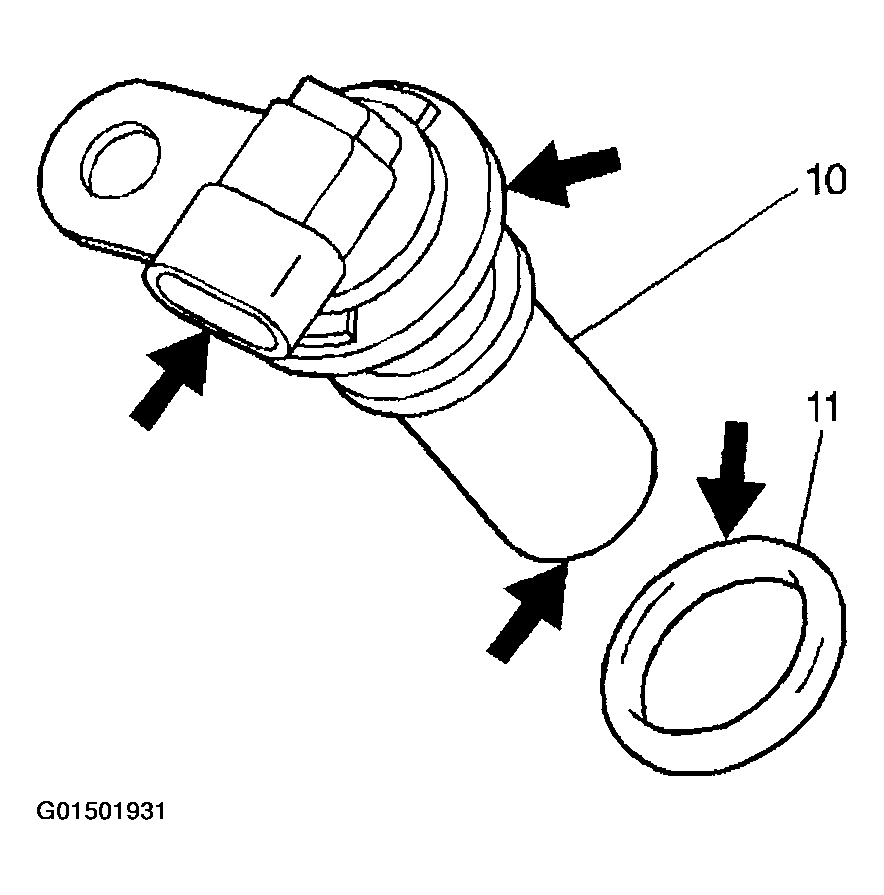

    Fig 1: Installing Vehicle Speed Sensor (VSS) (1 Of 2)
    G01501931Courtesy of GENERAL MOTORS CORP.
  2. Install the vehicle speed sensor (10) and the retaining bolt (9).

    Tighten

    Tighten the bolt to 12 N.m (106 Ib. in).

  3. Connect the electrical connector to the sensor.
  4. Lower the vehicle.

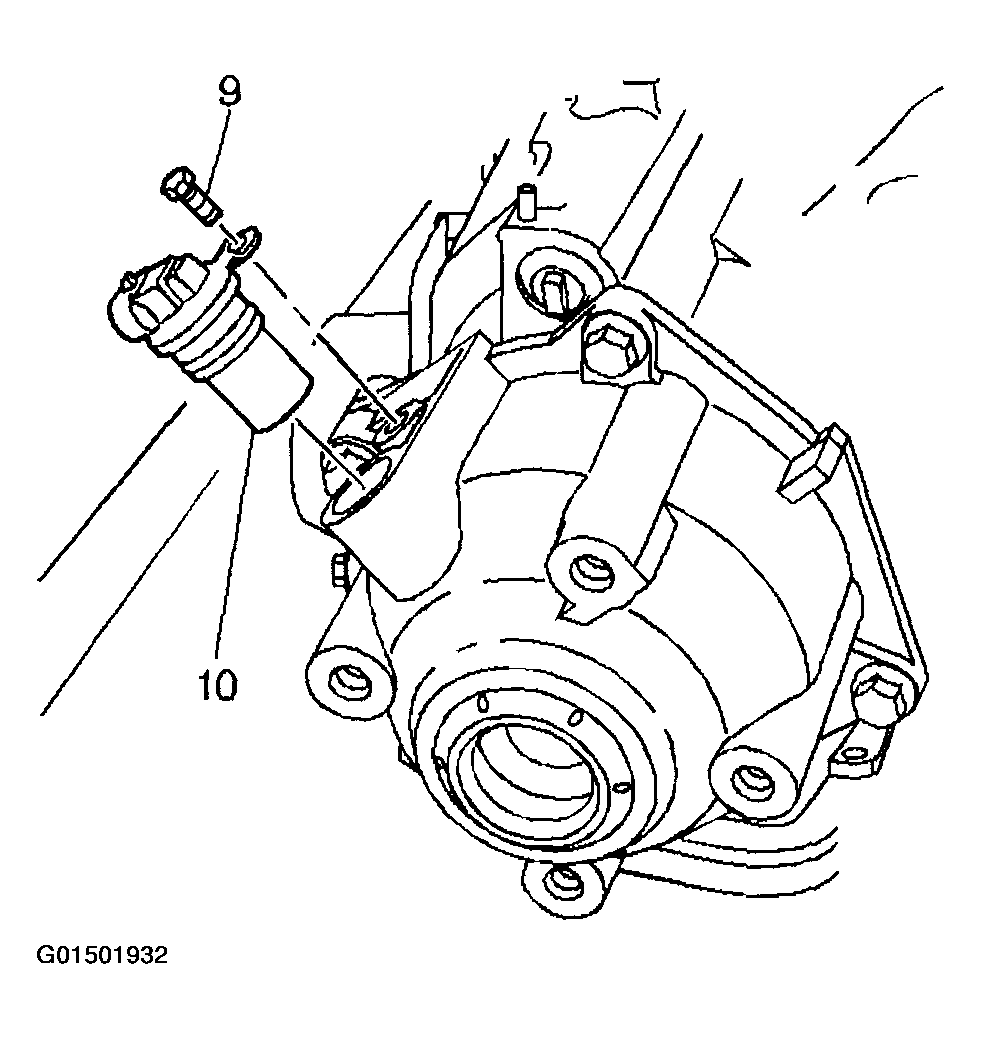

    Fig 2: Installing Vehicle Speed Sensor (VSS) (2 Of 2)
    G01501932Courtesy of GENERAL MOTORS CORP.
