Home >> Pontiac >> 2003 >> Aztek FWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle Diagnosis, Service & Repair - 4T65-E >> Repair Instructions >> Transmission Vent Replacement >> Installation Procedure

Installation Procedure

  1. Use a small hammer and a flat-bladed tool and tap down on the transaxle vent seat in order to install the transaxle vent (37).
  2. Install the throttle body air inlet duct.

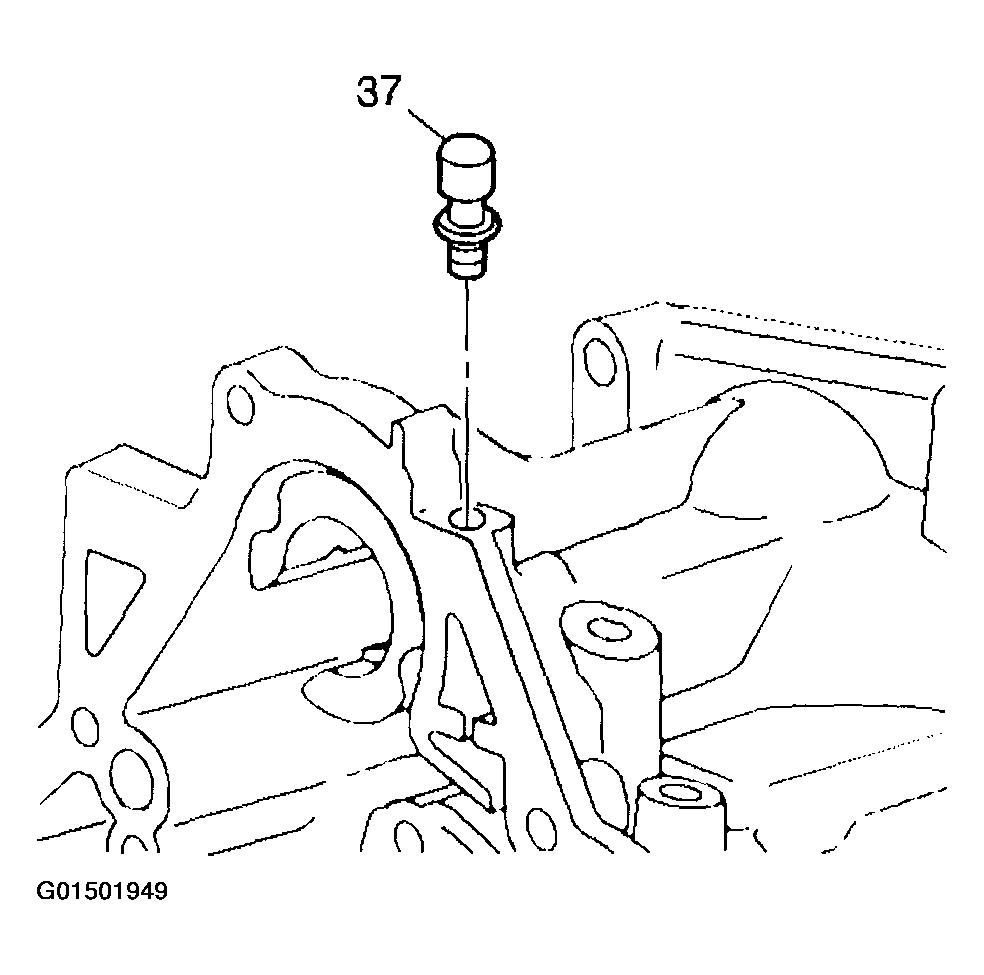

    Fig 1: Installing Transmission Vent
    G01501949Courtesy of GENERAL MOTORS CORP.
