Removal Procedure

  1. Remove the oil pan. Refer to OIL PAN REPLACEMENT  .
  2. Remove the thermo element pins and washers (120 and 123).
  3. Remove the thermo element (121) and the thermo element plate (122).

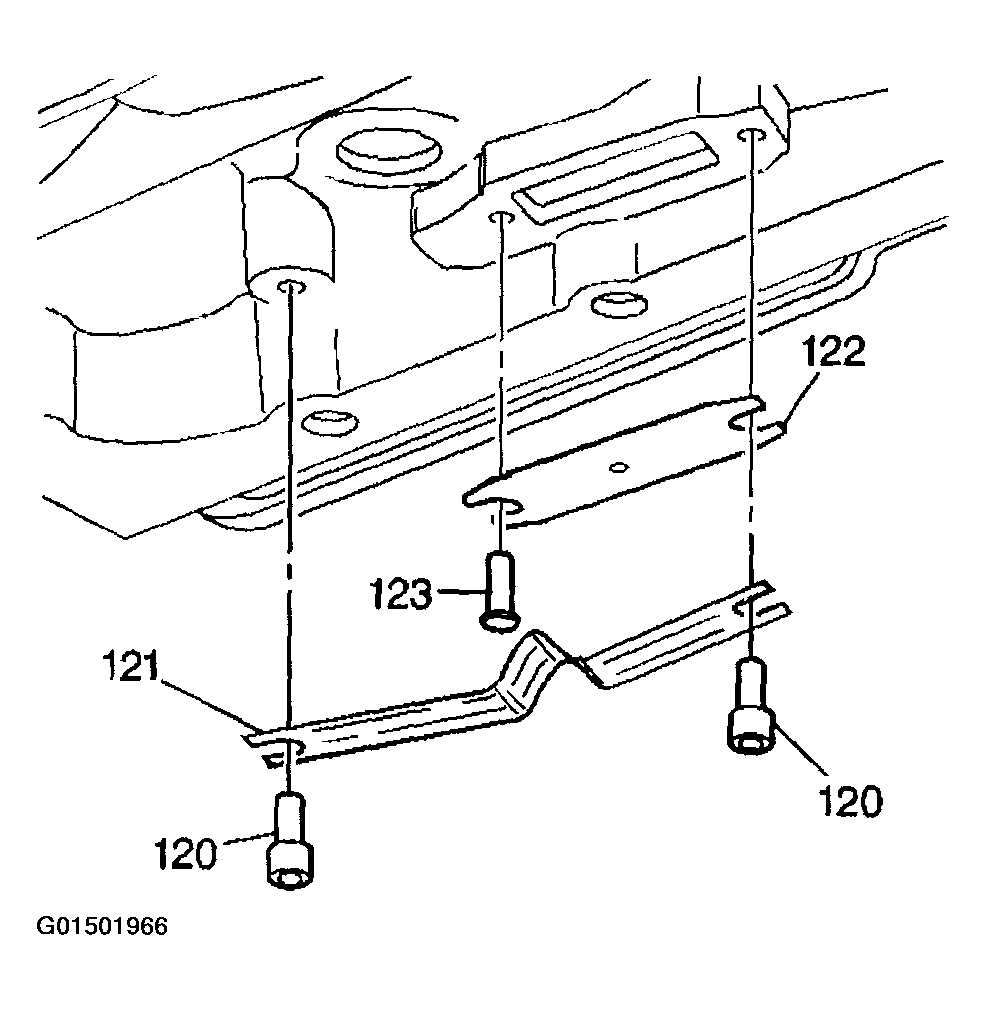

    Fig 1: Removing Thermo Element
    G01501966Courtesy of GENERAL MOTORS CORP.
