Installation Procedure

  1. Install the oil reservoir weir (27).
  2. Install the case side cover. Refer to CASE SIDE COVER REPLACEMENT  .

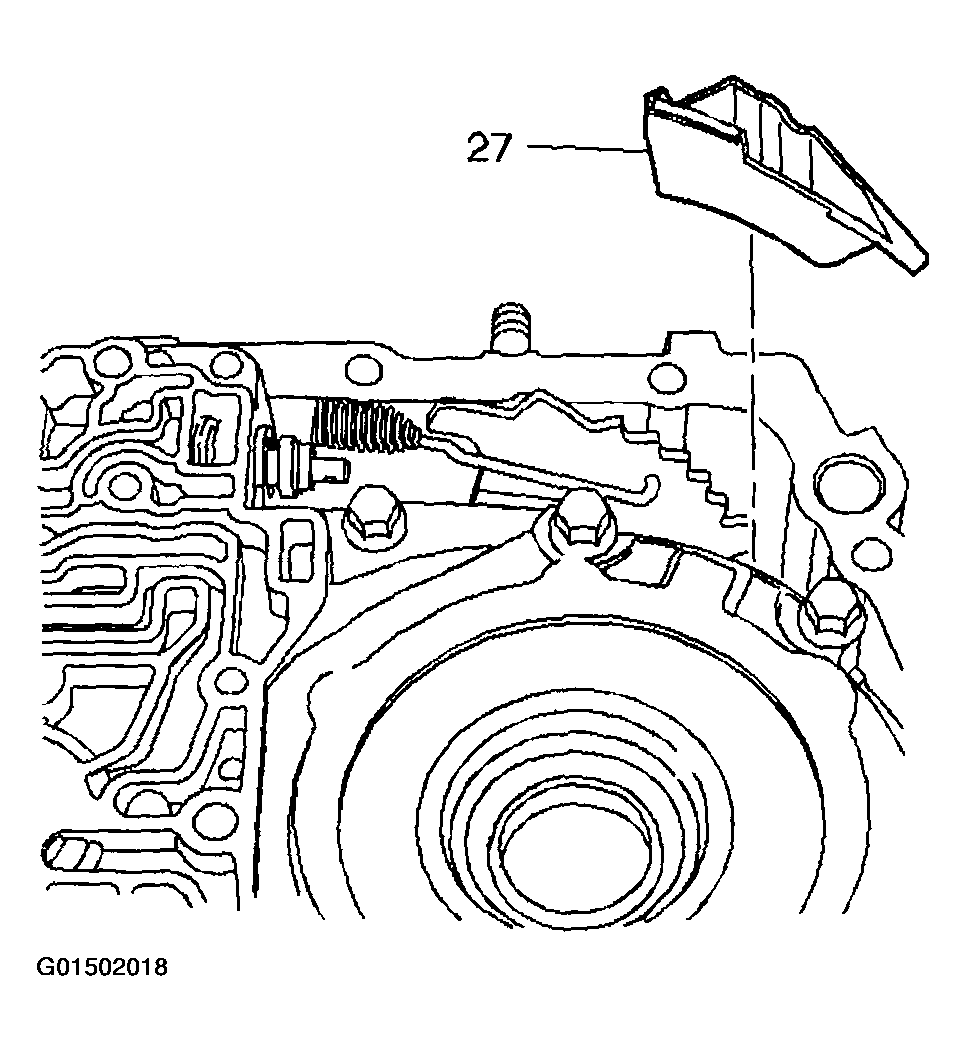

    Fig 1: Installing Oil Weir
    G01502018Courtesy of GENERAL MOTORS CORP.
